60
English

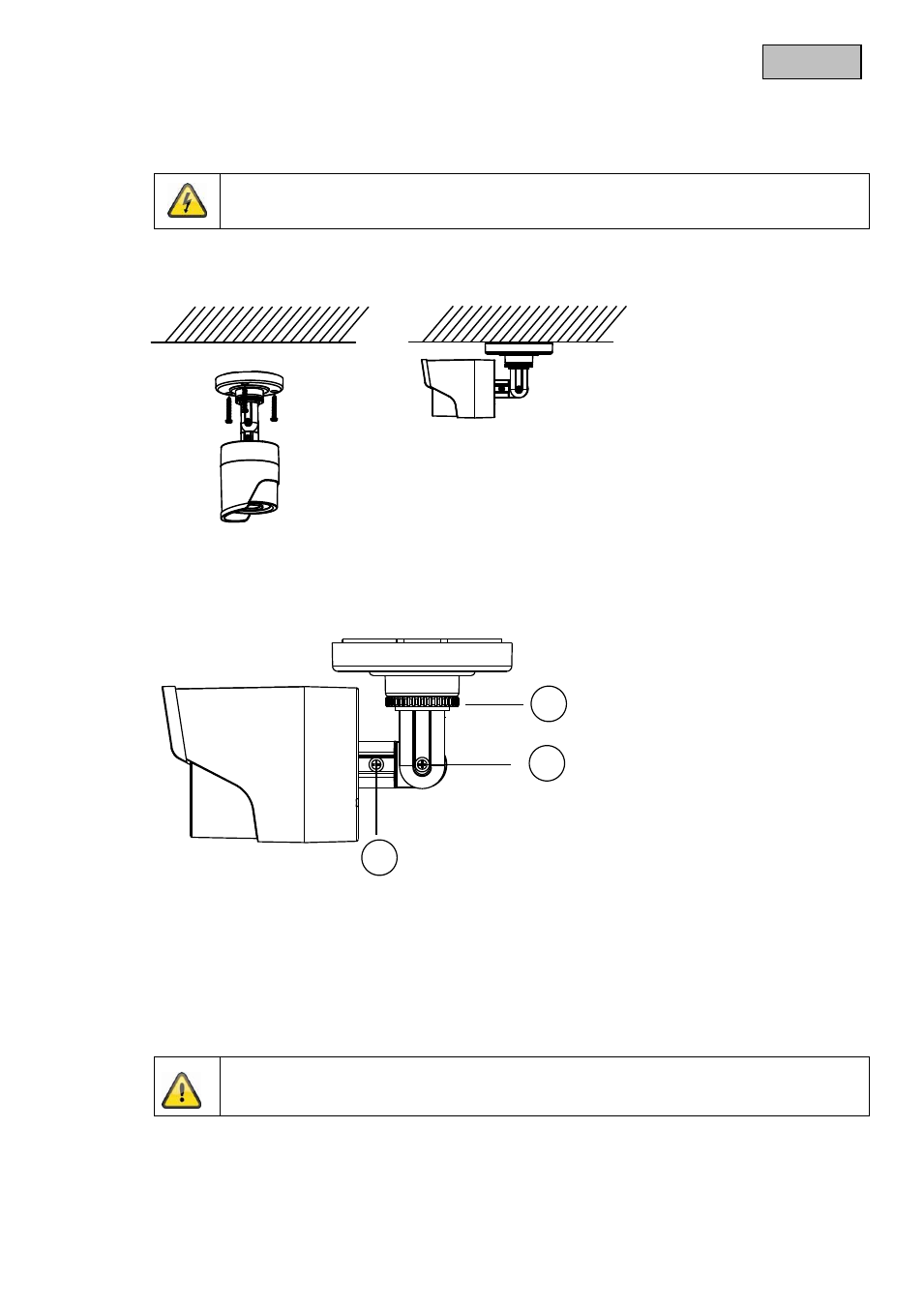

7. Mounting / installation
7.1 Mounting the camera
IMPORTANT!
The camera must be disconnected from the power supply during installation.
Use the drilling template supplied for drilling the mounting holes, and insert the dowels. Run the cable
through the side opening on the camera base plate and secure the camera with the screws supplied.
7.2 Aligning the camera
The camera can be aligned in 3 axes.
1
2
3
Rotation: 0°
–360°
Loosen the rotary wheel (1) to adjust the alignment horizontally.
Inclination: 0°
–90°
Loosen the screw (2) to adjust the alignment vertically.
Angle of view: 0°
–360°
Loosen the screw (3) to adjust the rotation of the camera image.
Do not forget to tighten up the screws and rotary wheel!
