Maintenance and repair
U
D s
1
f
1
7.2.2 Inlet Filtration

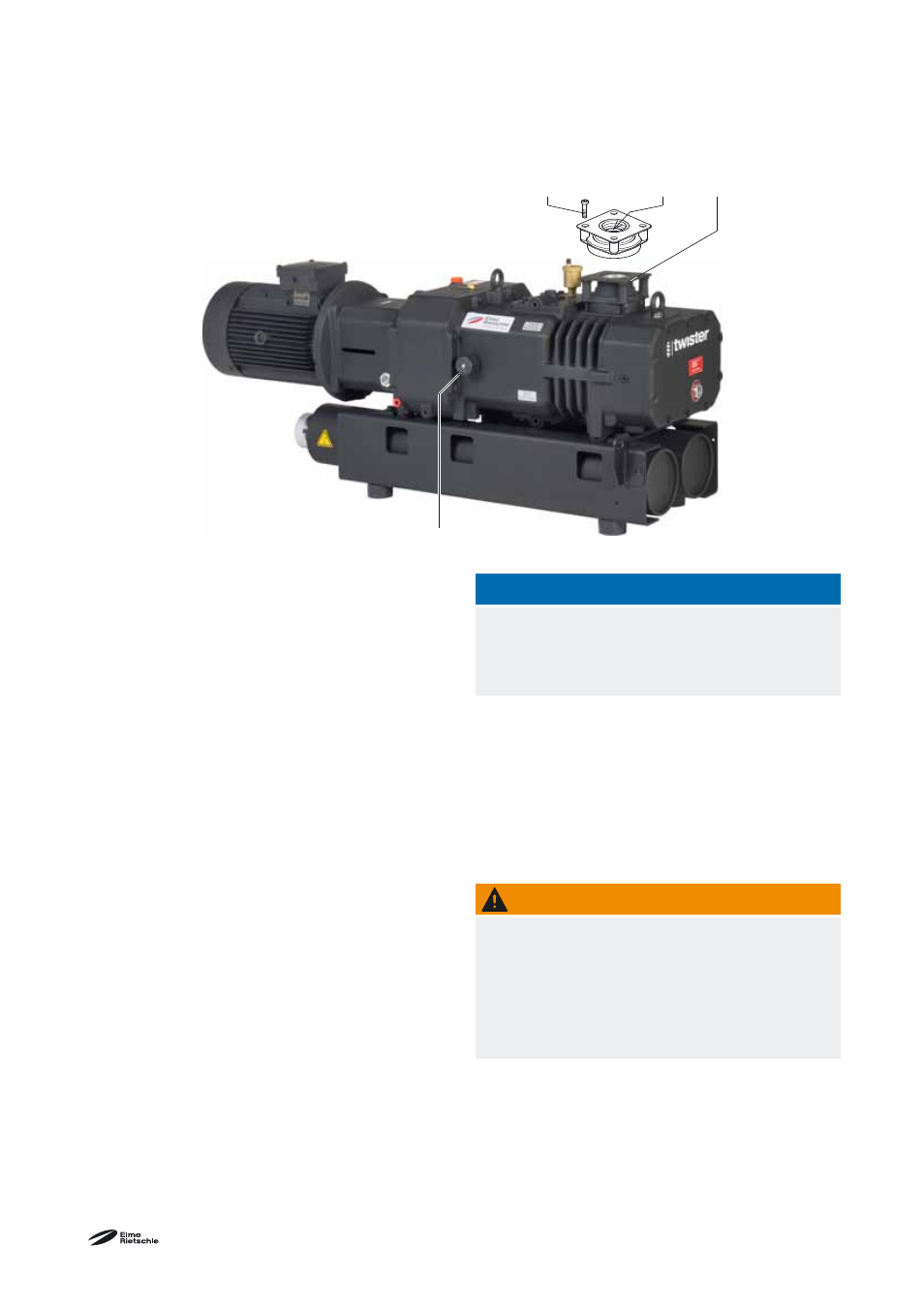

Fig. 10 Inlet Filtration
D Suction flange
f
1
Mesh filter
s
1
Screws
U Gas ballast valve
NOTICE
Insufficient maintenance of the air filter
The capacity of the pump is reduced and damage
may occur to the pump.
Intake air filter:
The mesh filter (Fig. 10/f
1
) must be cleaned on a
regular basis or replaced if damaged. Depending
on the application, the mesh filter may require more
frequent attention.
Remove the suction flange (Fig. 10/D) after undoing
the screws (Fig. 10/s
1
).
Also check the valve seating for contamination.
Assemble in reverse order.
WARNING
Risk of injury when handling compressed air
When blowing through with compressed air, solid
particles may be carried along or powder dust
swirling around may cause injury to the eyes.
Therefore, when cleaning with compressed air
always wear goggles and a dust mask.
