NXG Technology NX-MOUNT-ART-M - Manual (Page 5)

60 lbs
MW60C44
200mm 300mm
300mm 200mm
300mm
400mm
400mm

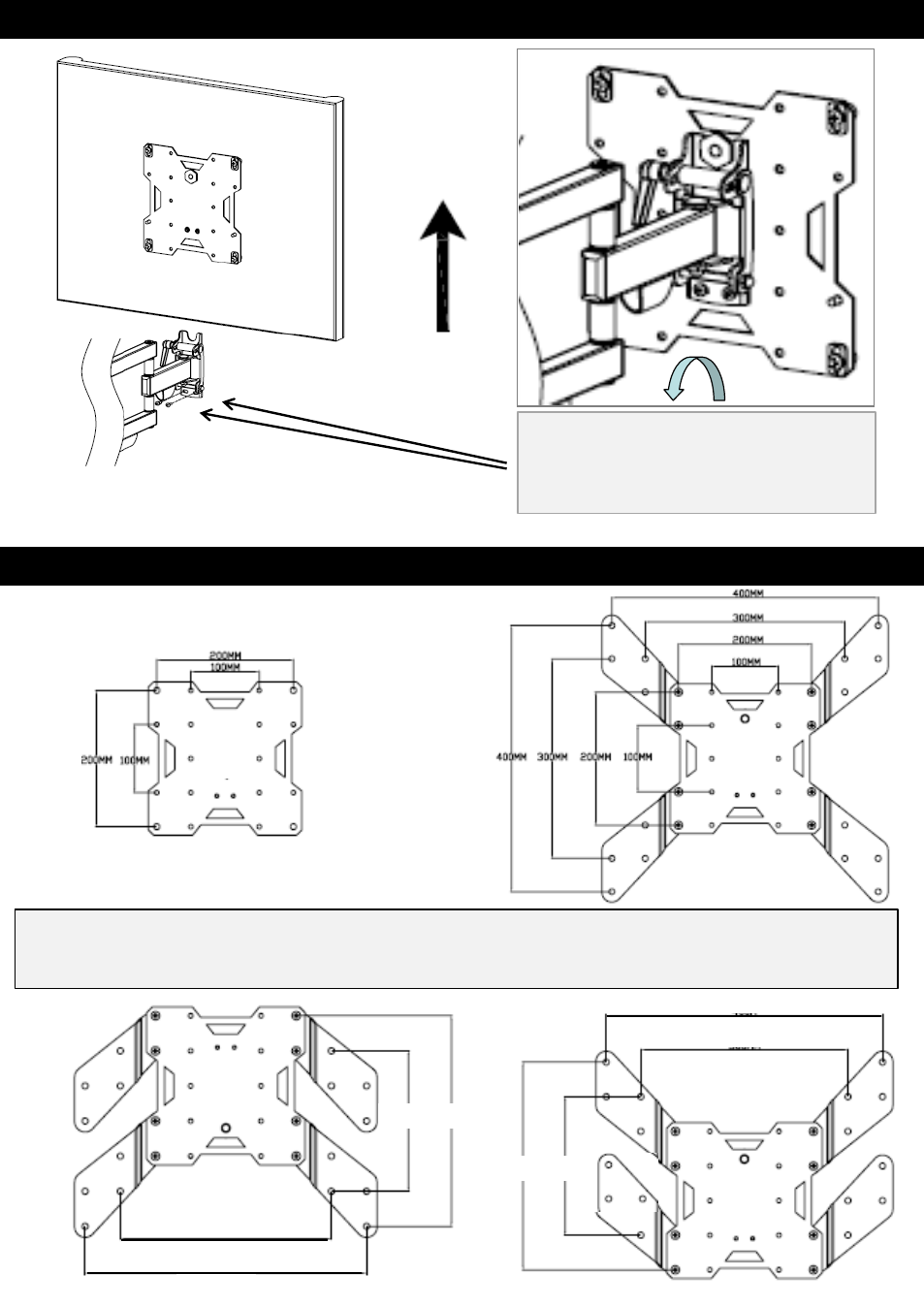

Use diagrams to determine which mounting configuration is needed to attach VESA Monitor
Plate (with or without adapters) to the back of flat panel. Please check flat panel wall mounting
compatibility before proceeding with installation.
300mm
STEP 1- REMOVE VESA MONITOR PLATE FROM MOUNT
Remove and save Philips head screw
and washer. Screw and washer will
be used to reattach VESA Monitor
Plate in Step 3.
400mm
P5
VESA MONITOR PLATE and ADAPTERS
