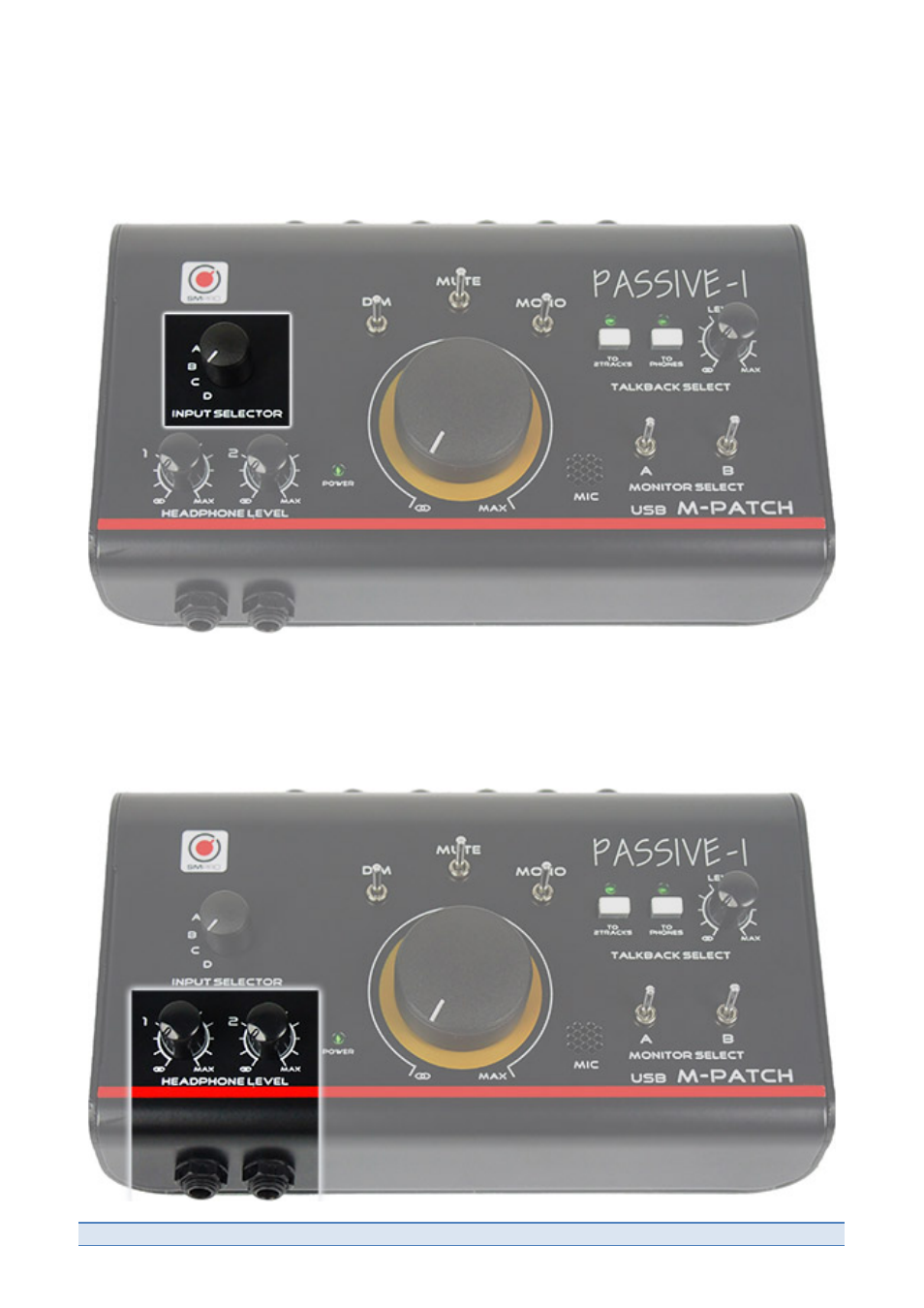

5 FRONT PANEL
5.1
Input Selector
The PASSIVE1’s input selector chooses the input signal you wish to monitor.
5.2 Headphone Amplifiers
There are two independent headphone amplifiers provided on the PASSIVE-1. Each with their own
volume control. Note that mains power must be connected for the headphone amp to operate.
