Operation (continued), Led function of charger, Figure d – ProTeam ProGuard LI 3 Battery Charger User Manual
Page 7
Power
Without battery
ON
OFF
Ready to charge battery
pack
pack
Evaluate
Hot battery pack
Flashing
OFF
When battery pack reaches
cooled temperature, charger
begins fast charge mode
Cold battery pack
Flashing
OFF
When battery pack reaches
warmed temperature, charger
begins fast charge mode
Deeply discharged
Flashing
OFF
Charger pre-charges battery
until normal voltage is reached,
then begins fast charge mode
Defective
Defective
Flashing
Flashing
Battery pack or charger is
defective
• If defective, try to repeat the conditions a second time by removing and reinstalling the
battery pack. If the LED status repeats a second time, try charging a different battery
• If a different battery charges normally, dispose of the defective pack (see
Maintenance
section)
• If a different battery also indicates “Defective”, the charger may be defective.
Charging
Fast charging
ON
Flashing
Charges in 30 minutes or, if
deeply discharged, charger
pre-charges battery until
normal voltage is reached,
then begins fast charge mode.
May take longer to fully charge.
Full
Slow charging
OFF
ON
Fast charging is complete.
Charger maintains charge mode.
LED
BATTERY
RED
GREEN
ACTION
INDICATOR
PACK
LED
LED

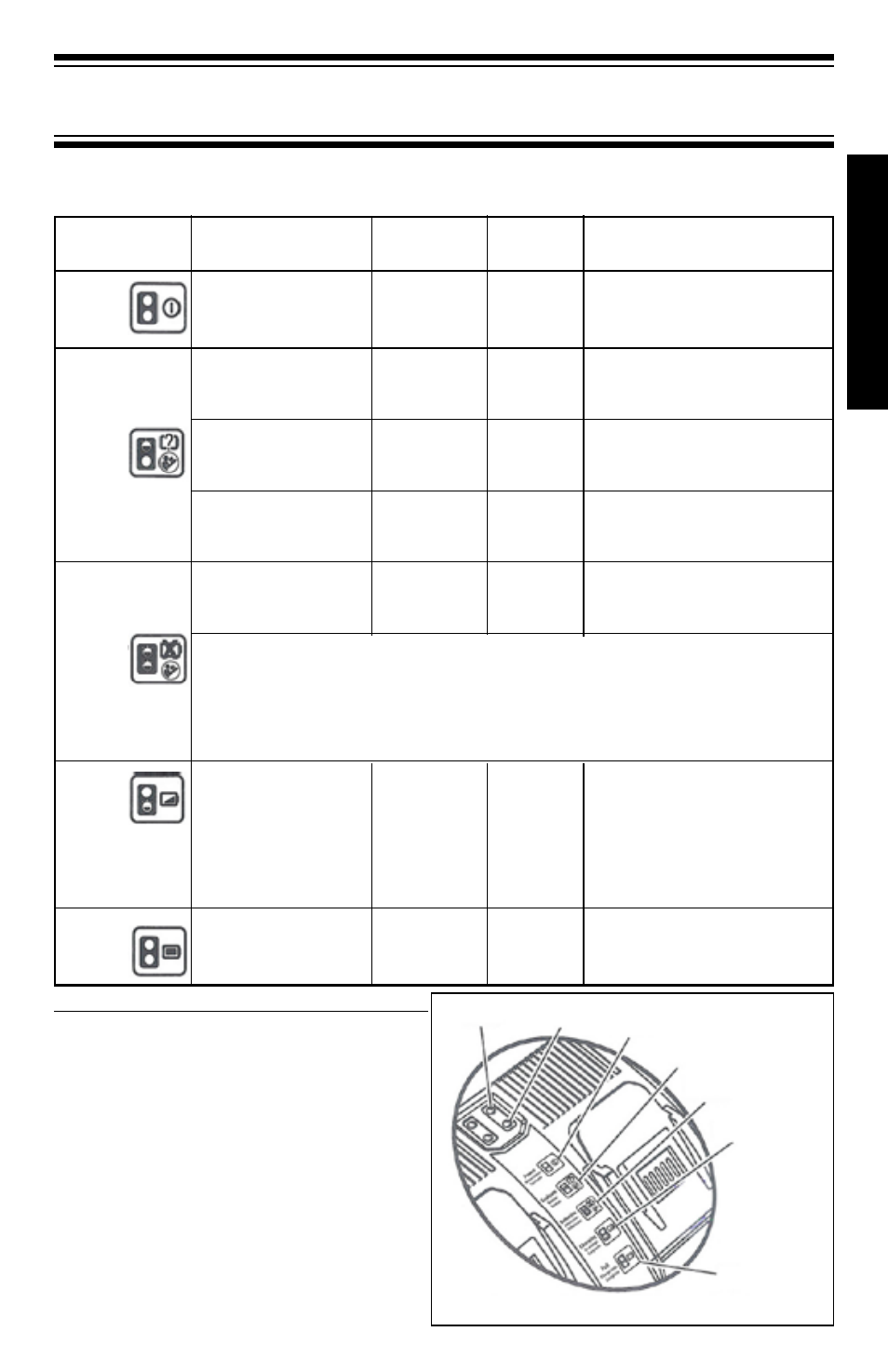

OPERATION (continued)
LED FUNCTION OF CHARGER
(Figure D)
Red LED Green LED
Power Indicator
Evaluate
Indicator
Defective
Indicator
Charging
Indicator
Full
Indicator
Figure D
ProTeam
7
