PPeerrffoorrm maannccee CCuurrvveess
TThhee SSppeenncceerr TTuurrbbiinnee CCoom mppaannyy
◆
600 Day Hill Road, Windsor, CT 06095
◆
TEL 800-232-4321
◆
860-688-8361
◆
www.spencerturbine.com
SSppeenncceerr
® ®
VVoorrtteexx
® ®
RReeggeenneerraattiivvee BBlloowweerrss
VVBB003377SS,, VVBB003377,, VVBB003377XXPP
(See Bulletin 417, pages 40 and 41
for specifics on models with explosion-
proof motors.)

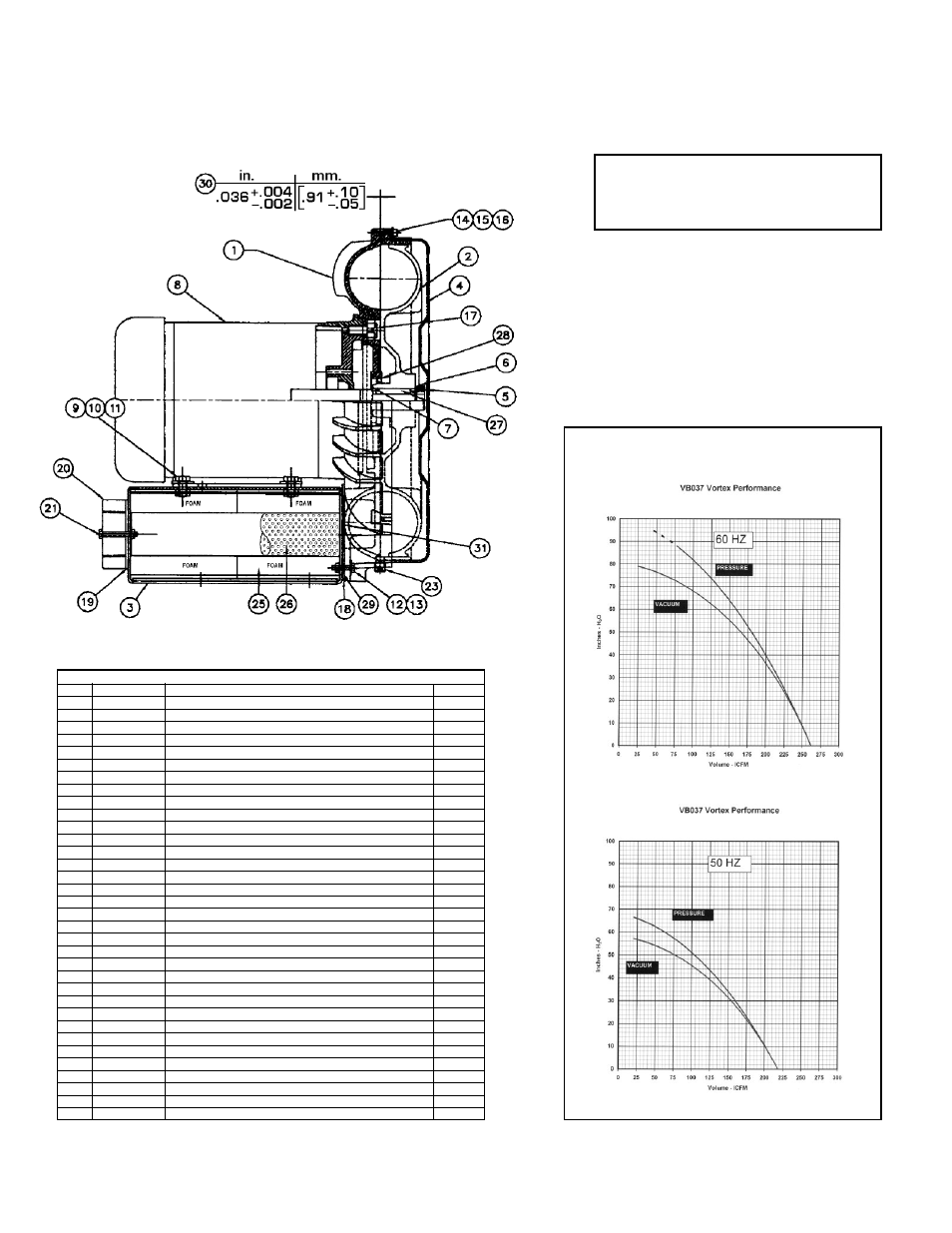

AAsssseem mbbllyy DDiiaaggrraam m
PPaarrttss LLiisstt
DESCRIPTION: VORTEX BLOWER ASSEMBLY – VB037S, VB037, VB037XP
ITEM PART NO. DESCRIPTION QTY.
1 VBC93701 Case 1
2 VBI93702 Impeller 1
3 VBB93700 Base 1
4 VBE93701 Cover, Impeller 1
5 NUT90209 Locknut, Shaft 1
6 WSH90172 Lockwasher, Shaft 1
7 WSH90157 Shim, Shaft to Impeller (as required) 1
8 MOT90361 Motor, 184TC, 5 HP, 1PH, 50/60Hz 1
8A MOT90181 Motor, 184TC, 5 HP, 3PH, 50/60Hz 1
8B MOT90234 Motor, 184TC, 5 HP, 3PH, 575 Volt, 50/60Hz 1
8C MOT90222 Motor, 184TC, 5 HP, 3PH, XP, 50/60Hz 1
8D MOT90480 Motor, 184TC, 5 HP, 3PH, 60Hz 1
8E MOT90479 Motor, 184TC, 5 HP, 1PH, 60Hz 1
9 SCR90879 M8 x 1.25 Hex Head Bolt x .98 [25] Long 4
10 WSH90148 Lockwash, M8 4
11 WSH90182 Flat Washer, M8 4
12 SCR90878 M6 x 1.0 Hex Head Bolt x 1.57 [40] Long 2
13 WSH90166 Flat Washer, M6 2
14 SCR90877 M5 x 0.8 Pan Head Phillips Screw x .39 [10] Long 4
15 WSH90138 Lockwasher, M5 4
16 WSH90139 Flat Washer, M5 4
17 SCR90335 1/2-13 x 1.0 Long Socket Cap Screw 4
18 GSK90154 Gasket, Case 1
19 GSK90155 Gasket, Flange 2
20 FLC90009 Flange, 2 FNPT 2
21 SCR90878 M6 x 1.0 Hex Head Bolt x 1.57 [40] Long 4
23 PLG90037 Plug, 1/4 NPT x .43 [11] Long 1
25 INS90021 Absorber 4
26 SCN90056 Absorber Screen 2
27 KEY90079 Key 1
28 SEL90104 Lip Seal 1
29 SPR90088 Spacer, Washer (Case to Base) 2
30 N/A Impeller to case gap specification N/A
31 PLC90027 Plate, Case 1
VVBB003377SS,, VVBB003377
Impeller Gap Port
