2

VSW I AAP • Installation and Operation

Rear panel features

1

2

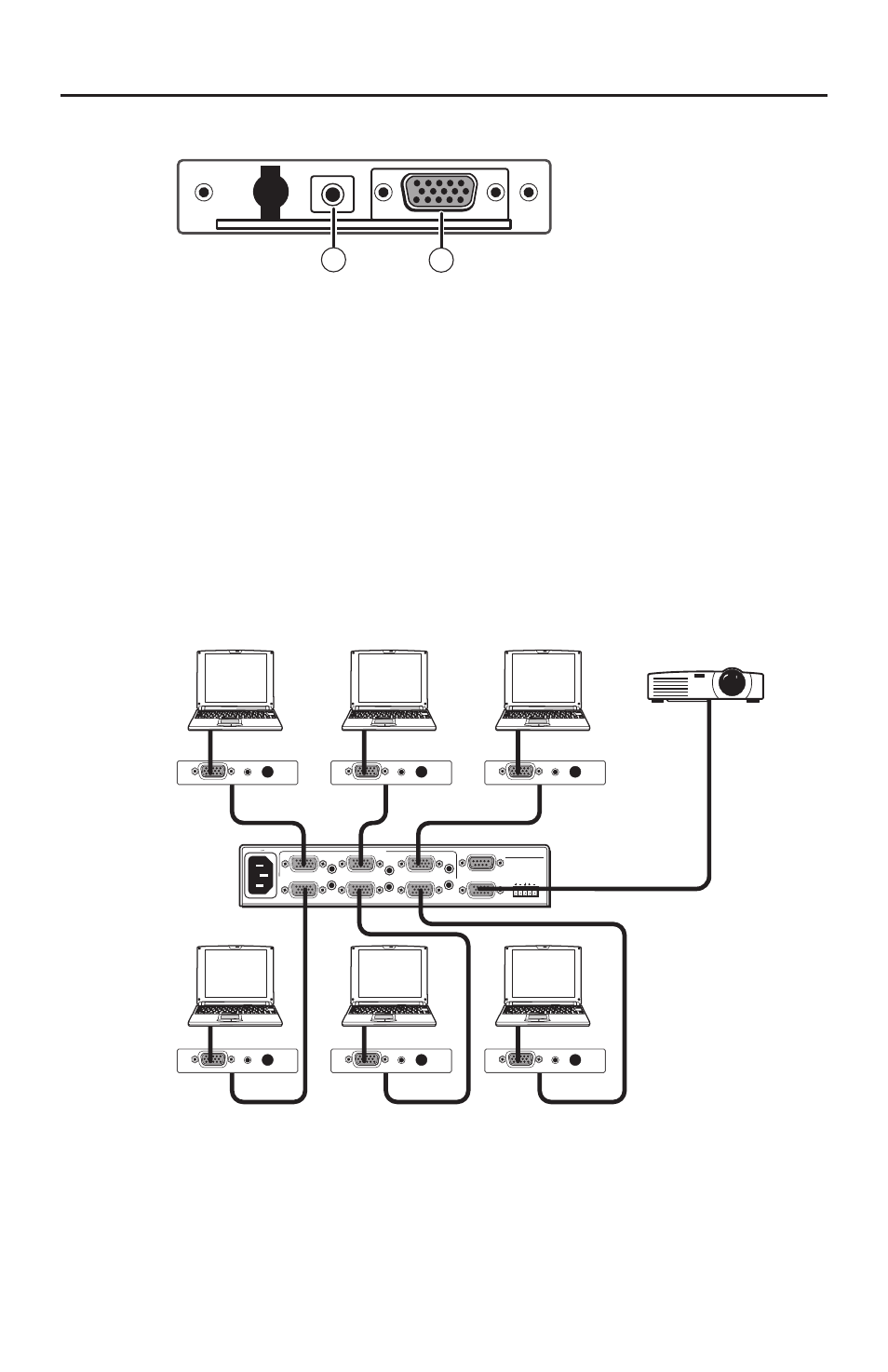

Figure 2 — Rear panel features

a

Audio pass-through — Output unbalanced stereo audio through

this 3.5 mm mini audio jack. See the previous section's wiring

diagram (

b

).

b

Computer video pass-through — Output VGA-UXGA, RGBHV,

RGBS, RGsB, RsGsBs, component video, or HDTV component

video through this 15-pin female VGA connector.

Interfacing to SW VGA Series Switchers

The VSW I AAP can be connected to each input of a SW VGArs switcher.

Pressing the Show Me button causes the switcher to select this input.

Refer to the SW VGArs Switchers manual for connection instructions.

SW6 VGA Ars

REMOTE

100-240V 0.2A

INPUTS

1

2

3

4

5

50-60Hz

OUTPUT

OUTPUT

L

R

SW6 VGA Ars

6

Projector

VSW I

AAP

SW6 VGA Ars

VSW I AAP

COMPUTER

AUDIO

SHOW ME

VSW I

AAP

VSW I AAP

COMPUTER

AUDIO

SHOW ME

VSW I

AAP

VSW I AAP

COMPUTER

AUDIO

SHOW ME

VSW I

AAP

VSW I AAP

COMPUTER

AUDIO

SHOW ME

VSW I

AAP

VSW I AAP

COMPUTER

AUDIO

SHOW ME

VSW I

AAP

VSW I AAP

COMPUTER

AUDIO

SHOW ME

Figure 3 — Multiple VSW I AAP inputs to an SW VGArs
switcher
