Introduction, cont’d
SW RGB and YUV A Switchers • Introduction 1-2
Introduction
About the Switchers
The Extron SW RGB and YUV A series (figure 1-1) is a family of six RGB video
switchers and one component video switcher, some with audio, in an array of
input and output configurations. The models available are:
• SW2 RGBHV (two RGB video inputs)
• SW2 RGBHV A (two RGB inputs and two balanced or unbalanced stereo or
mono audio inputs)
• SW4 RGBHV (four RGB video inputs)
• SW4 RGBHV A (four RGB inputs and four balanced or unbalanced stereo or
mono audio inputs)
• SW6 RGBHV (six RGB video inputs)
• SW6 RGBHV A (six RGB inputs and six balanced or unbalanced stereo or mono
audio inputs)
• SW6 YUV A (six component video inputs and six digital audio inputs)
The RGB models can switch wideband video (RGBHV, RGBs, RGsB, and RsGsBs),
component video, S-video, and composite video. The YUV model can switch
component video, S-video, and composite video.
10 0-2 40 V 1.3 A
50 -60 Hz
RE MO TE
AU TO
MA NU AL
V
OU TP UT
R
G B
H/
HV
IN PU T 1
IN PU T 2 R
G
B H/HV
V
IN PU T 3
IN PU T 4 R
G
B
H/HV
V
IN PU T 5
IN PU T 6 R
G
B
H/H V
V
OU TP UT
L R
IN PU TS
L R
L R 3
4
L R
L R 5
6
2
1 L R L R
Amplifier
Speakers
Projector
BU FF ER ED LO CA L MO NIT OR OU TP UT INP UT
H. SH IFT RG B 1 09 xi
VG A I NT ER FA CE W /A DS P ID P IN 4 ID P IN 1 1
Mac Computer
Extron
SW6 RGBHV A
Switcher
BU FF ER ED LO CA L MO NIT OR OU TP UT INP UT
H. SH IFT RG B 1 09 xi
VG A IN TE RF AC E W /AD SP ID P IN 4 ID P IN 1 1
Sun Workstation
Extron
RGB 112xi
Interface
Extron
RGB 112xi
Interface
BU FF ER ED LO CA L MO NIT OR OU TP UT INP UT
H. SH IFT RG B 1 09 xi
VG A I NT ER FA CE W /A DS P ID P IN 4 ID P IN 1 1
High Resolution
Workstation
BU FFE RED LO CA L MO NIT OR OU TPU T
INP UT
H. S HIF T
RG B 10 9 xi VG A IN TER FAC E W /AD SP
ID P IN 4 ID P IN 1 1
PC
Extron
RGB 109xi
Interface
OU TP UT SOG OUT DDSP SERR SP ARE
50 /60 Hz
10 0-2 40 V 0.5 A LE VE L/ PE AK 0.8 V 5 0% UN ITY 0.9 V 1 00 %
Extron
RGB 109xi
Interface
Extron
KP 6
Keypad
Remote

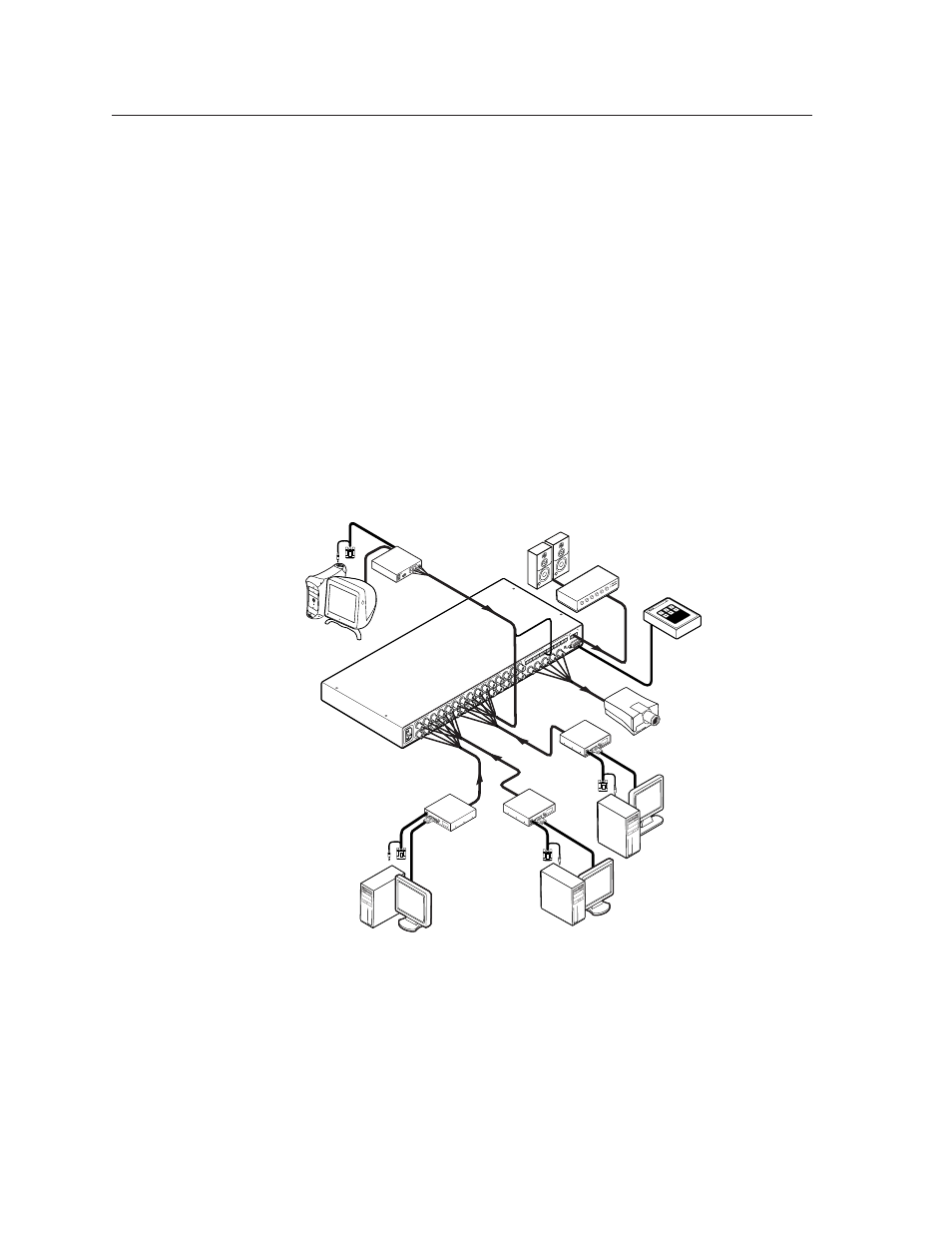

Figure 1-1 — Typical SW6 RGBHV A application
Each of the models inputs video on female BNC connectors. Audio models input
unbalanced or balanced stereo or mono audio on 5-pole captive screw connectors.
The 2-input models have 1U half-rack width enclosures. The remaining switchers
have 1U full-rack width enclosures. All models can be mounted in a standard 19”
rack; the 2-input models require an Extron 1U universal rack shelf.
