3
1 2 1 2 3 4 5 6
MPS SERIES
MEDIA PRESENTATION SWITCHER
MUTE MUTE
MIC PROGRAM AUDIO
INPUTS RGB
CONFIG
EXEC
MODE
ab d c e g h i j k l f

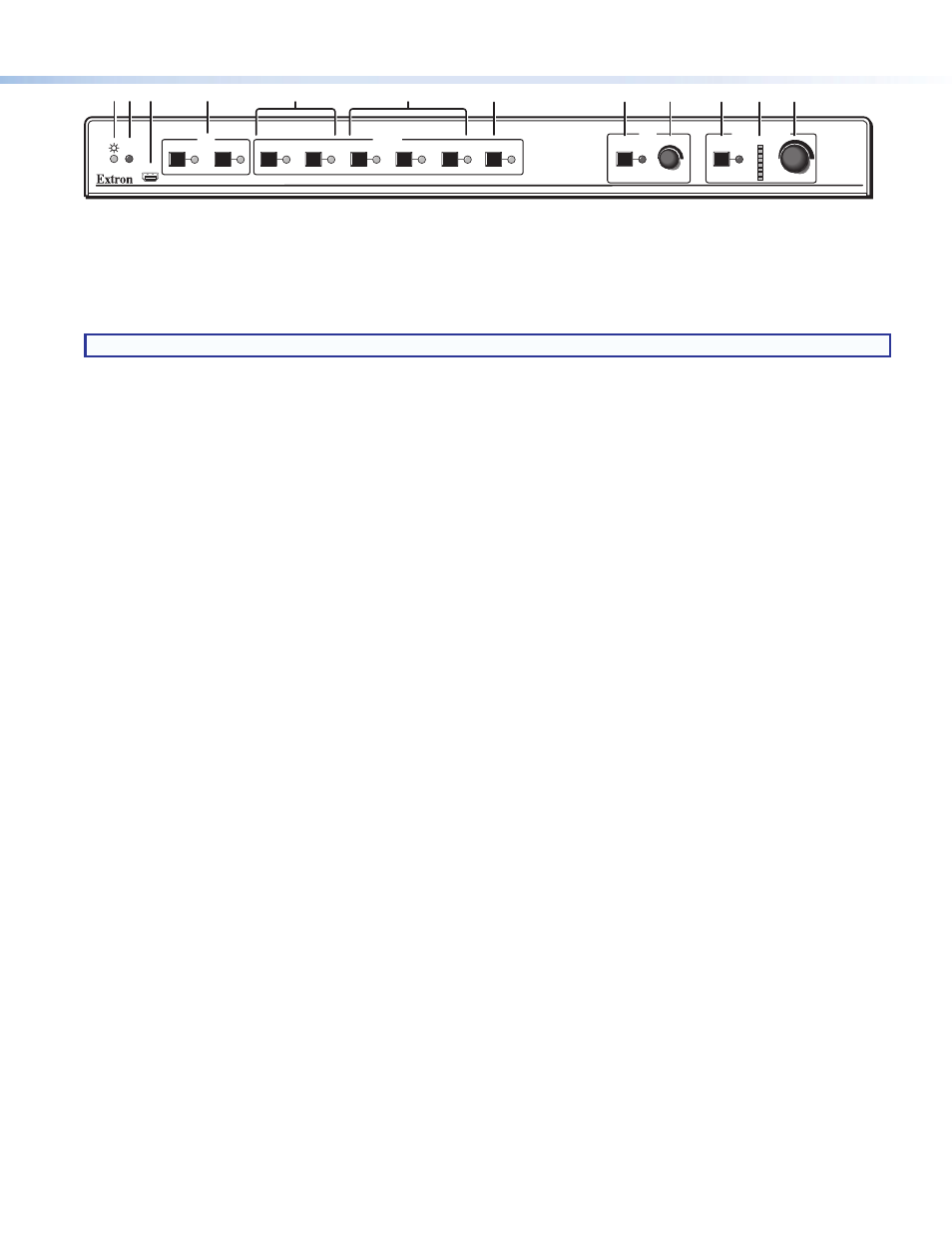

Figure 3. MPS 602 SA Front Panel
Step 3 — Setup and Operation — Video Switching
The MPS 602 can be connected to as many as six input devices including a DTP transmitter. Either RGB input can be routed to
the RGB output. Separately, any of the six inputs (2 RGB, 3 HDMI, and 1 DTP) can be routed to either the DTP output or the HDMI
output (not both).
NOTE: The RGB inputs can be switched to output on both the RBG output and HDMI/DTP output.
a
Power LED — Power all connected devices, then apply power to the MPS 602. The LED lights.
b
Exec Mode LED — This red LED indicates the status of Executive (Exec) mode. Two levels of Exec mode, enabled and
disabled from the front panel, prevent accidental configuration changes from the front panel. Control and monitoring are still
accessible using RS-232 or the front panel USB.
Exec mode 1, locks out all front panel controls. Exec mode 2 locks out the Mic volume encoder and mute button.
To enable and disable exec mode:
1. Press and hold RGB Input 1 ( d ) for 3 seconds to enter the Exec Mode.
2. Continue to hold RGB Input 1, then press Input 1 of the Inputs group ( e ) to toggle through the executive modes in the
following order:
• If the switcher is not in exec mode (front panel LED is not lit), the first mode accessed is exec mode 1. When
enabled, all front panel LEDs (with the exception of the power and Exec Mode LEDs) flash three times. If
adjustments are attempted from the front panel, the same LEDs flash once.
• If the switcher is in exec mode 1, exec mode 2 is accessed. In this mode, only the Mic volume encoder and Mute
button are locked out. When this mode is enabled, the Mic Mute LED flashes three times. If adjustment of either the
Mic volume or Mic Mute button is attempted from the front panel, the Mic Mute LED flashes once.
• If the switcher is currently in executive mode 2, the switcher toggles to disable exec mode.
3. Release the buttons to enter the Exec mode indicated by the LED flash.
c
Config Port — One mini Type-B female USB Config port connects to a host computer for configuring the switcher and
upgrading firmware.
Video Control
d
RGB input group. Two green LEDs and associated buttons select and indicate the RGB input currently routed to the RGB
output.
The HDMI/DTP input group has six buttons with associated green LEDs. Press an input button in this group to switch it to the
selected (HDMI or DTP) digital output. The associated LED lights. Only one of the six inputs can be selected at a time.
e
RGB Inputs 1 and 2 — Select and indicate the current RGB input routed to the digital output (DTP or HDMI).
Analog RGB signals are converted to digital signals before routing to the DTP or HDMI output. RGB inputs are not scaled.
They are converted to digital signals at the same resolution.
f
HDMI Inputs 3 to 5 — Select and indicate the current HDMI input switched to the digital output (DTP or HDMI).
g
DTP Input 6 — Select and indicate the current DTP input switched to the digital output (DTP or HDMI).
Audio Control
The audio buttons and indicators provide control of the mic input and program audio output levels.
h
Mic Mute Button and LED — Mute and unmute the Mic input. This mutes the Mic input for both the program audio output
and amplified audio output. When lit, the red LED indicates the Mic input is muted.
i
Mic Volume Knob — Rotary encoder controls the Mic level mixed into the program audio output and amplified audio output
(SA and MA models). It has no effect on the fixed audio output. Rotate the knob clockwise to increase, and counterclockwise
to decrease mic volume. If the mic volume is muted, rotating the control unmutes the volume.
j
Program Audio Mute button and LED — Mutes and unmutes program and amplified audio. The red LED lights to indicate
program audio and amplified audio is muted.
