Mps 602 • setup guide (continued), Analog audio input, Program audio output – Extron Electronics MPS 602 Series Setup Guide User Manual

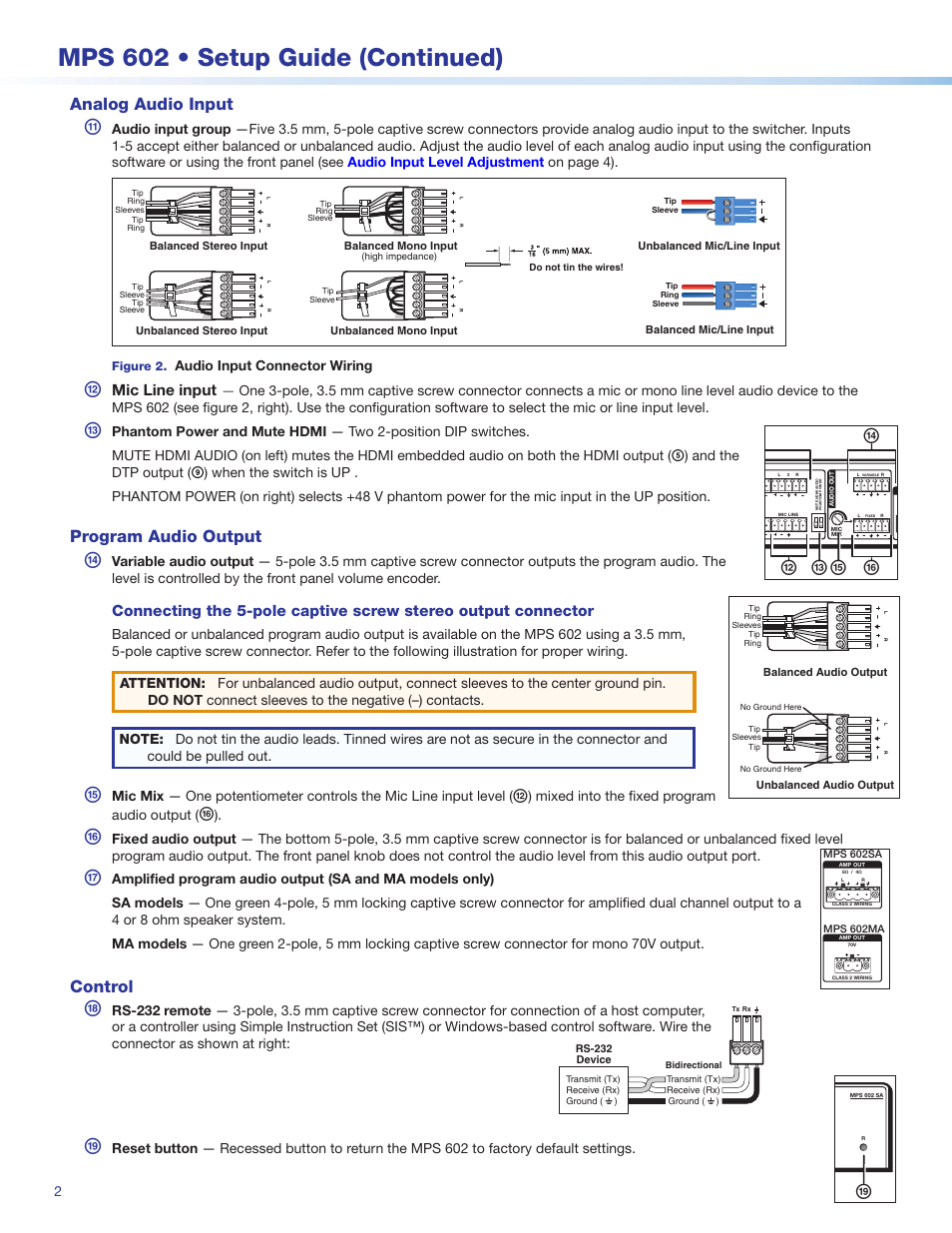

Page 2: Control, Mic line input, Audio input connector wiring, And the dtp output, Mixed into the fixed program audio output
