DTP DVI 330 Tx/Rx Transmitter and Receiver • Introduction
1
Introduction
•
•
About the DTP DVI 330 Transmitter and Receiver
•
About this Guide
This guide describes the Extron DTP DVI 330 Long Distance Digital Visual Interface
(DVI) Twisted Pair Extender, which consists of a DTP DVI 330 Tx transmitter and a
DTP DVI 330 Rx receiver. This guide describes how to install, operate, and configure the
transmitter and receiver.
About the DTP DVI 330 Tx/Rx Transmitter and Receiver
The Extron DTP DVI 330 Tx/Rx transmitter and receiver pair (see figure 1) extends the
usable distance of DVI digital video, optional analog audio, and bidirectional RS‑232 and
infrared (IR) control signals over one Extron XTP DTP 24 shielded twisted pair (STP) cable
(recommended) or Category (CAT) 5e, CAT 6, or CAT 6a STP or unshielded twisted pair
(UTP) cable. The DTP DVI 330 can also extend HDMI video, which may include embedded
audio, with the appropriate adapters. The video, audio, and control signals can be
transmitted up to 330 feet (100 m).
ON
OFF
DISPLA
Y
MUTE
SC
RE
EN
UP
SC
RE
EN
DO
WN
VCR
DV
D
DOC
CA
M
LAP
TO
P
PC
TouchLink
Control
System
INP
UTS
LO
CA
L O
UT
PU
T
AU
DIO
DV
I-D
DTP DVI 330 Tx
RS-232
L
R
OU
TP
UTS
DV
I-D
AUDIO
DTP DVI 330 Rx
DVI Cable
DVI Cable
Media PC
CATx Cable
up to 330' (100 m)
Extron
DTP DVI 330 Tx
Transmitter
Extron
DTP DVI 330 Rx
Receiver
1
3
1
4
2
3
1
4
2
3
1
4
2
2
3
100
LIN
K
AC
T
CO
M
IR
INPU
T
RE
LA
Y
TX
RX
R
IPL
25
0
®
TCP/IP
RS-232
Projector

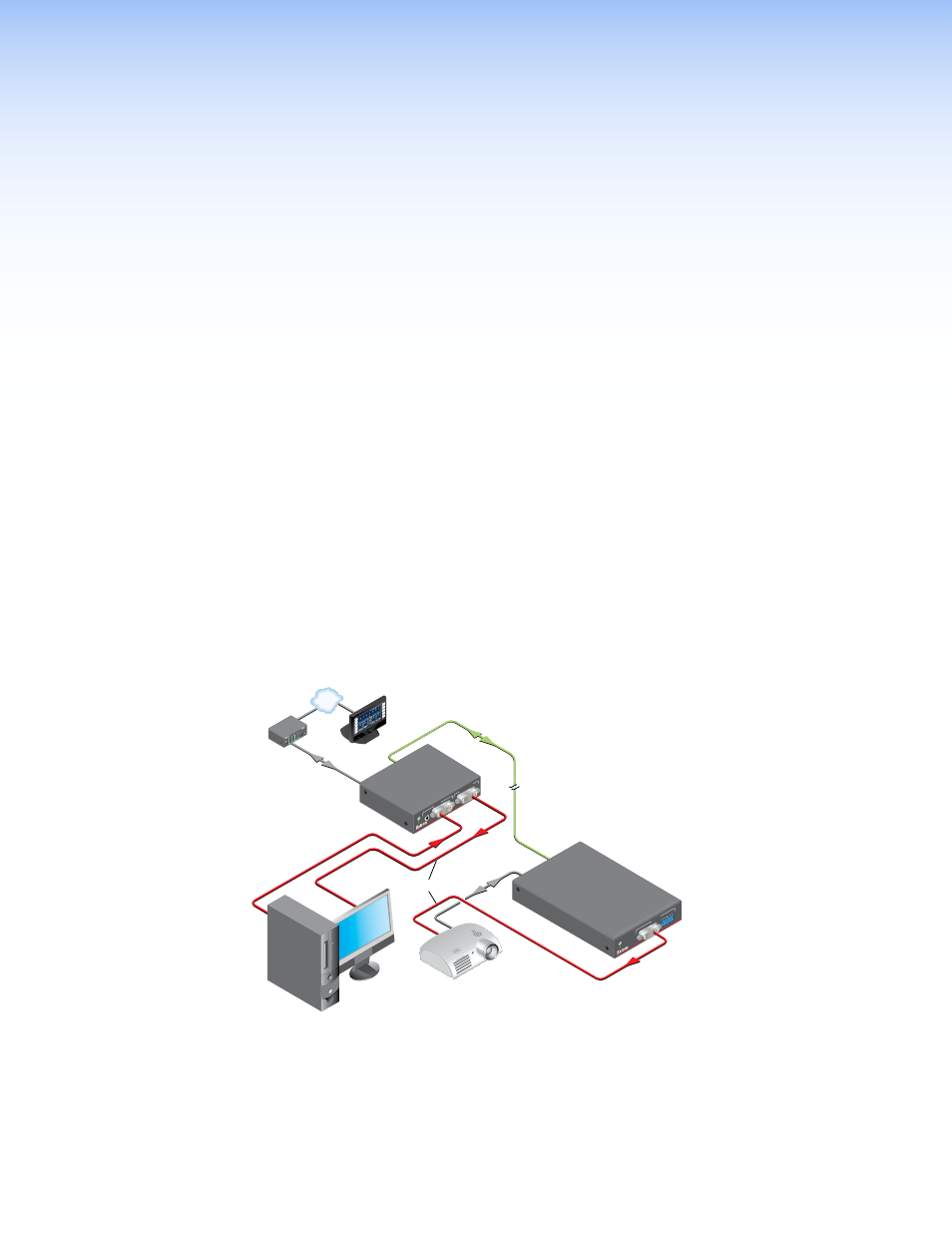

Figure 1.
Typical Transmitter and Receiver Application
The DTP DVI 330 Tx/Rx units are housed in quarter rack width metal enclosures. They can
be set on a tabletop or mounted in a rack, under or through furniture. The receiver can also
be mounted on a projector bracket.
