Xylem RH 520 PAPERLESS HUMIDITY/TEMPERATURE CHART RECORDERS User Manual
Page 5
Model RH520 Version 2.7 7/05
5

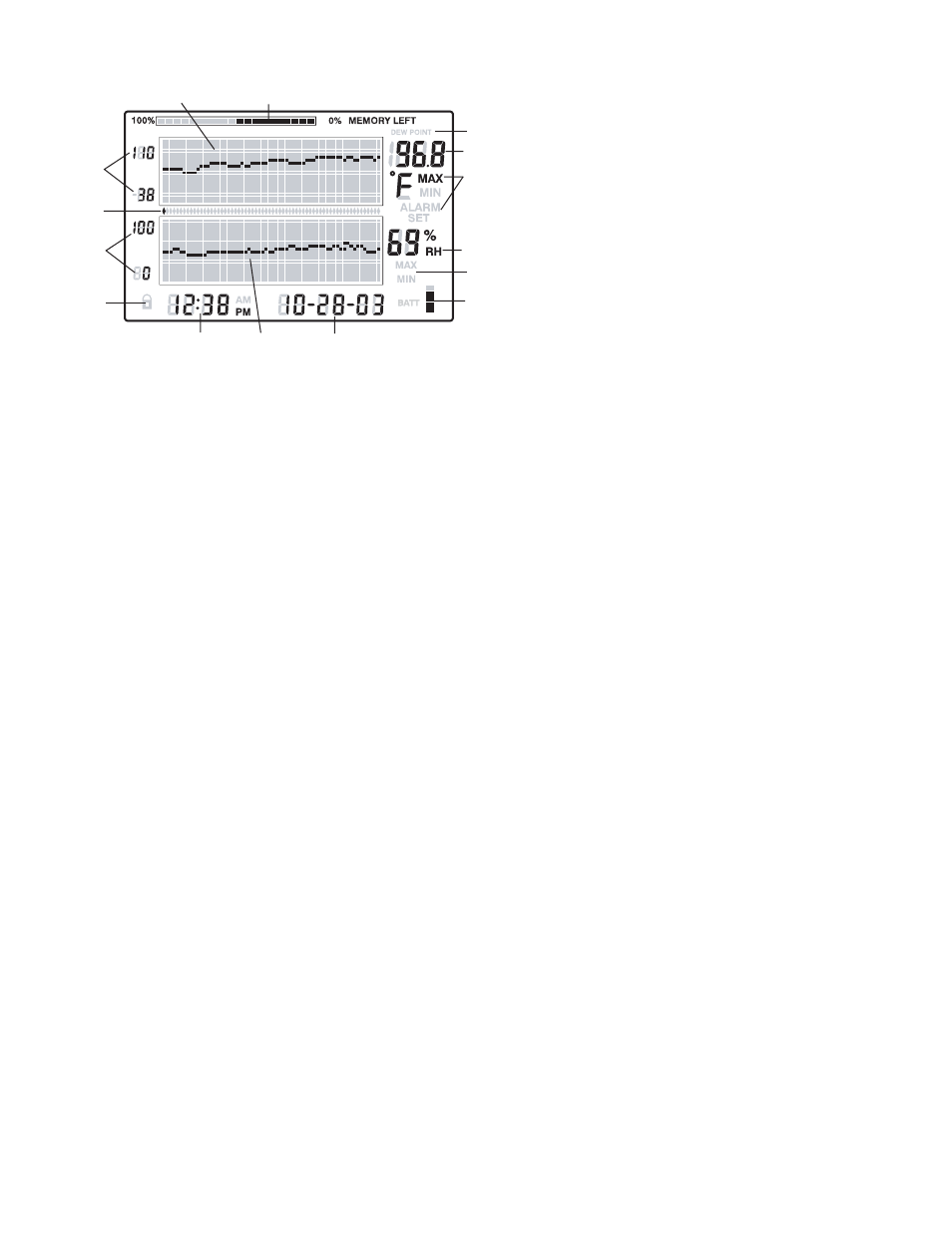

DISPLAY DESCRIPTION
6
2
3
4
12
11
9
10
8
7
1
3
9
9
5
1.
Temperature measurement graph
2.
Internal memory usage meter
3.
Vertical axis scale limits
4.
Cursor / Alarm indicators
5.
Push-button lock-out status indicator
6. Time
display
7.
Relative Humidity (RH) measurement graph
8. Date
display
9. Function
indicators
10. Numerical temperature reading display
11. Numerical RH reading display
12. Battery status indicator
