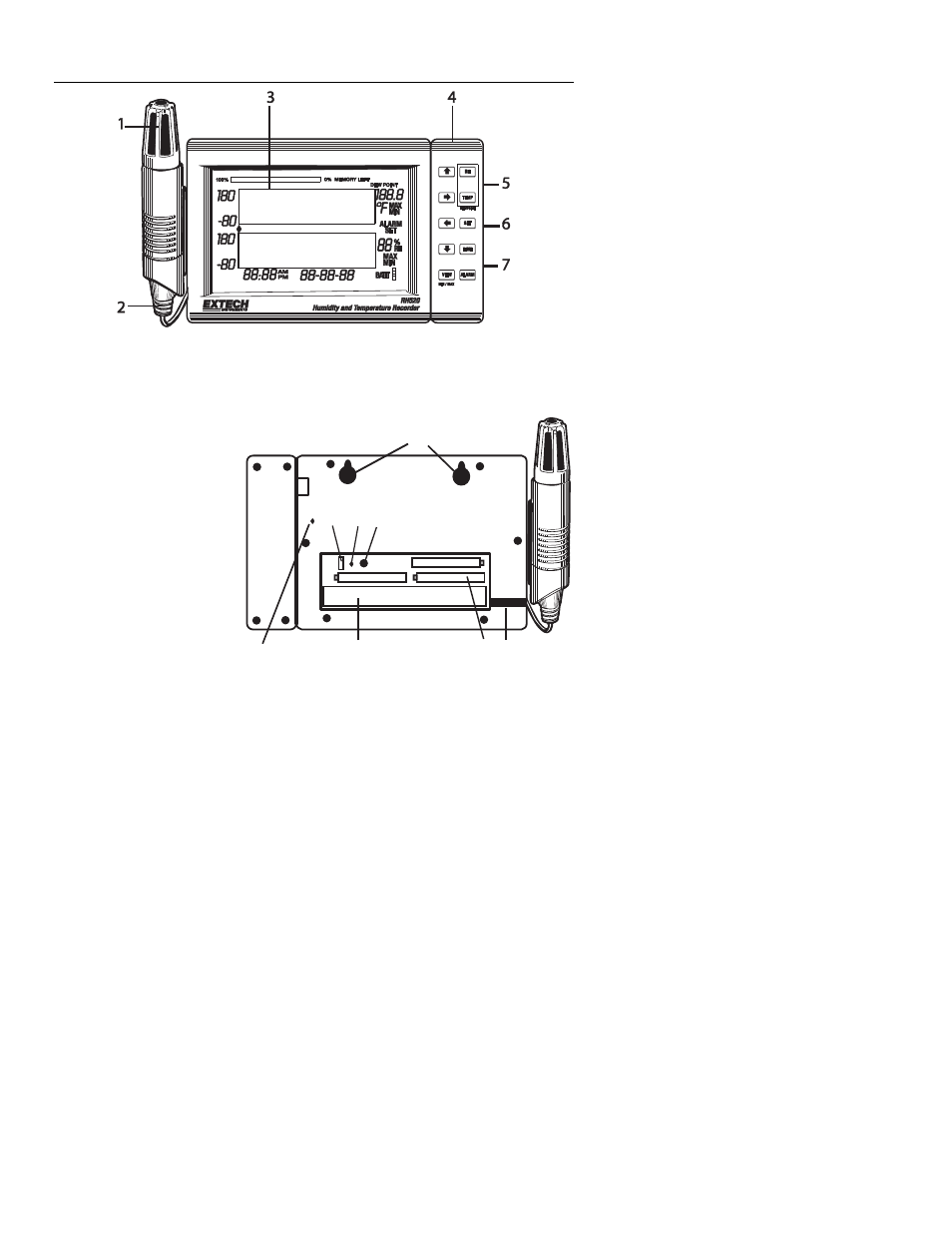

RH520 Description

1. Remote

sensor

2. Sensor

cable

3. LCD

Display

4.

Swivel keypad / table-top stand

5.

PC interface jack

6. Universal

alarm

module jack

7.

AC adaptor jack

8.

DATA RESET button (clears recorded measurement data and alarm history)

9.

Temperature units select switch (C or F)

10.

PROGRAMMING RESET button (clears programming changes but retains
measurement data and alarm history)

11.

Display CONTRAST adjust

12.

Sensor cable storage area

13.

‘AA’ 1.5V batteries

14.

Sensor cable run

15.

Wall mount holes

8

12

13 14

15

9

10 11
