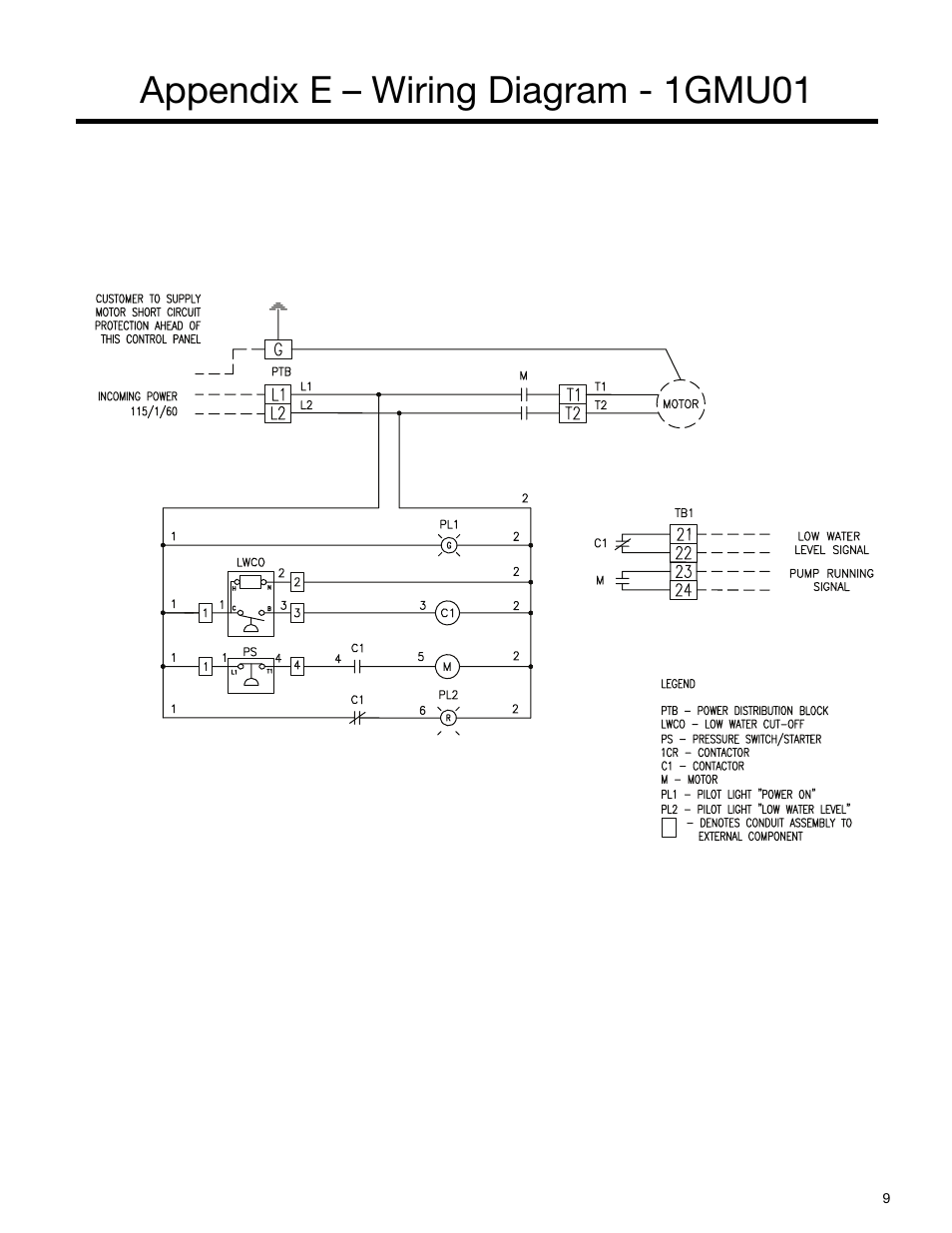

Appendix e – wiring diagram - 1gmu01 – Bell & Gossett S14362C Glycol Make-up Unit User Manual
Page 9
See also other documents in the category Bell & Gossett Pumps:
