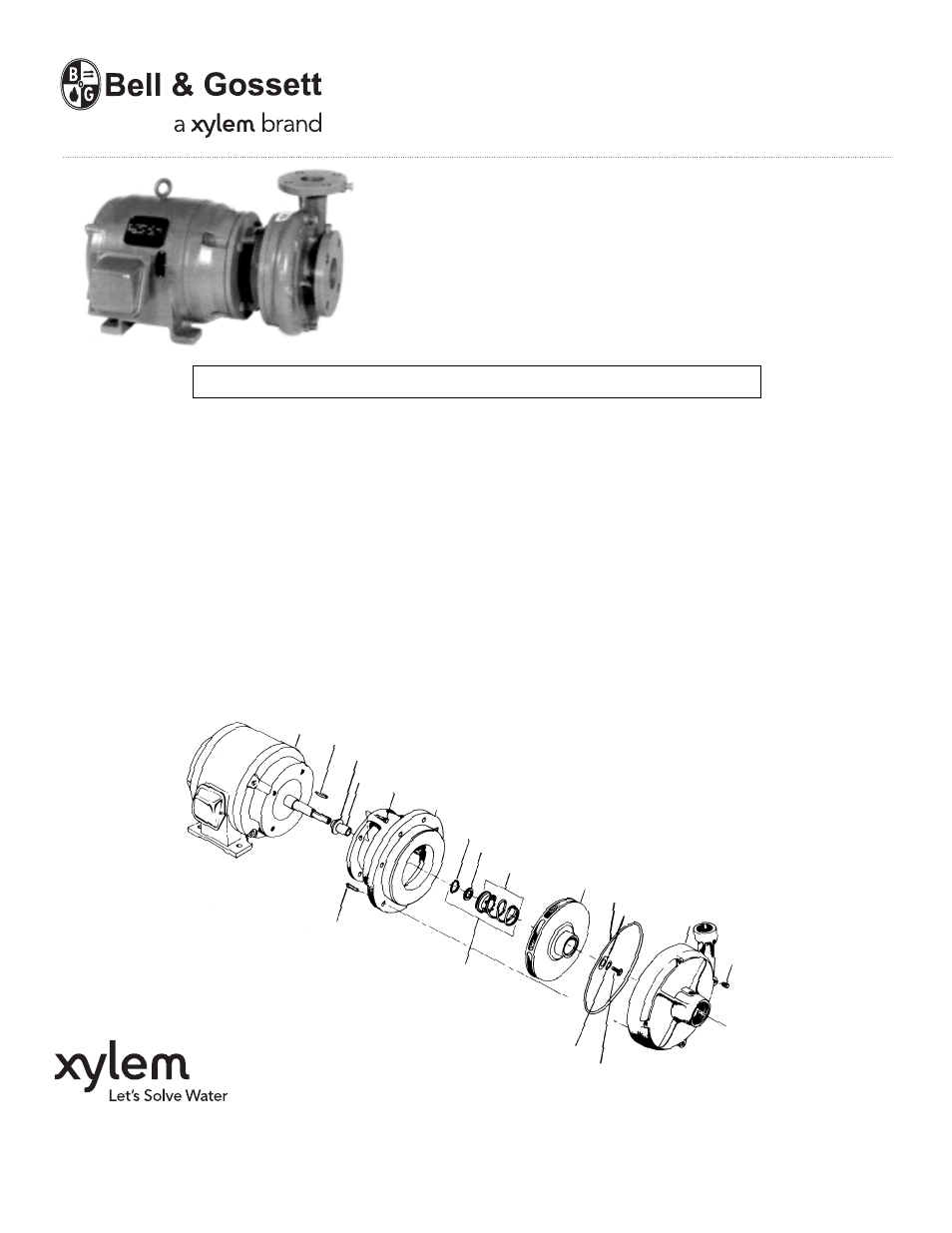

Closed Coupled
Centrifugal Pump Kits

IMPORTANT: This pump kit is to be assembled by qualified personnel only.

All necessary pump components are included in the kit

furnished. For proper assembly follow these instructions:

1. Mount Shaft Sleeve onto motor shaft using sealant

included in Sleeve Kit. Apply sealant to complete circum-

ference of shaft to insure watertight seal.

2. Slide Water Slinger over Shaft Sleeve and locate near the

Sleeve edge closest to the motor.

3. Mount the Motor Bracket Assembly to motor using motor

bracket capscrews.

4. Press seal insert in Motor Bracket Assembly. Moisten the

inner diamter of the seal assembly with soapy water and

press seal firmly in place. Carbon seal face must be tight

against the ceramic insert. Apply small end of tapered

spring on seal.

5. Make certain that the impeller has been properly cut to

size for required GPM and feet of head and balanced.

Balance Spec: for 3500 RPM .007 oz-in/lb. of Rotation

Mass; for 1750 RPM .014 oz-in/lb. of Rotation Mass. Slide

impeller into motor shaft until it bottoms against the shaft

sleeve shoulder. Install Impeller Key in slot. Fasten the

impeller using (1) capscrew, (1) internal lockwasher and (1)

large impeller washer. Make certain that the capscrew is

tightened to 18-20 foot pounds on 1" shaft motors and

40-44 foot pounds on 1

1

/

4

" motors.

6. Mount the Volute Gasket and Volute to the motor bracket

assembly using the Volute Capscrews.

7. Recheck all exposed capsrews for tightness.

8. Complete all nameplate data and affix to Volute.

9. Affix Installation Operation & Service Instructions to

pump.

MOTOR

IMPELLER KEY

WATER SLINGER

SHAFT SLEEVE

MOTOR BRACKET CAPSCREWS

MOTOR BRACKET

INSERT GASKET

CERAMIC INSERT

MECHANICAL SEAL

IMPELLER

IMPELLER WASHER

VOLUTE GASKET

VOLUTE

VOLUTE

PIPE PLUGS

IMPELLER

CAPSCREW

IMPELLER

LOCK WASHER

MECHANICAL

SEAL KIT

ASSEMBLY

VOLUTE

CAPSCREWS

INSTRUCTION MANUAL

P86108B
