Bell & Gossett P71000B Close-Coupled and Base Mounted Centrifugal Pumps User Manual
Instruction manual, Safety instructions, Service instructions

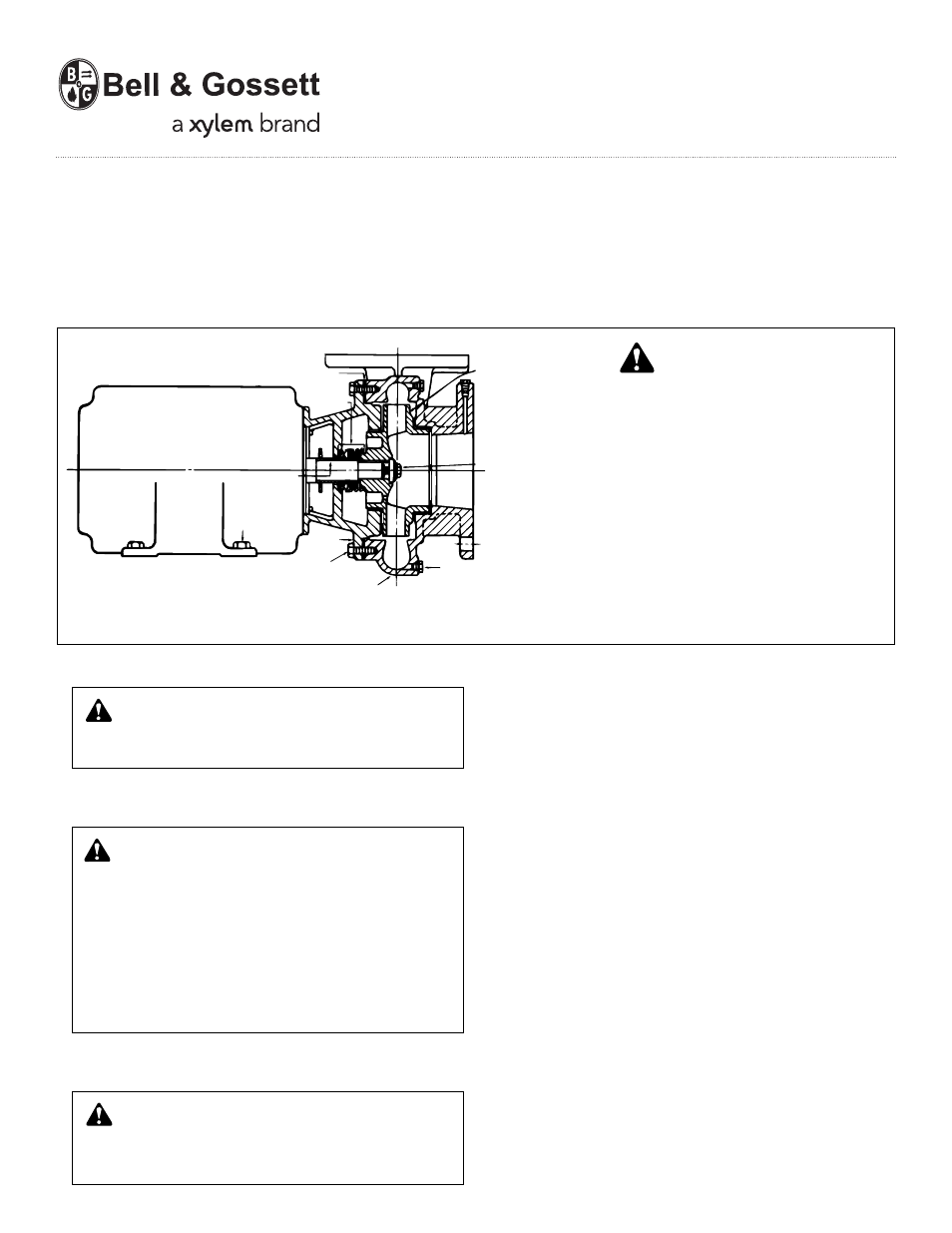

VOLUTE
GASKET
SEAL
ASSEMBLY
IMPELLER
IMPELLER
CAPSCREW
DRAIN PLUG
VOLUTE
VOLUTE
CAPSCREWS
MOTOR
BRACKET
MOTOR FOOT
CAPSCREWS
SHAFT SLEEVE
Replacement Seal Instructions for
Close-Coupled and Base Mounted
Centrifugal Pumps
SAFETY
INSTRUCTIONS
This safety alert symbol will be used in this manual and on the
pump safety instruction decals to draw attention to safety
related instructions. When used the safety alert symbol means
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
FAILURE TO FOLLOW THE INSTRUCTIONS MAY RESULT IN A
SAFETY HAZARD.
NOTE: For additional information and instructions, refer to the
Installation Operation & Service Instructions Manual supplied
with your pump.
CLOSE-COUPLED PUMP
SERVICE INSTRUCTIONS
1.
2. Close valves on suction and discharge sides of pump. (If no
valves have been installed, it will be necessary to drain the
system.)
3.
4. Remove motor foot capscrews. Loosen volute capscrews, do
not remove them. Use capscrews in the jack screw holes.
Start to remove the pump assembly from the volute.
5. Remove seal flushing tube, if used. Remove the volute cap-
screws and remove the pump assembly from the volute.
6. Remove the impeller capscrews, lock washer and washer.
Remove the impeller.
7. Remove the rotating portion of the seal, use a screwdriver to
loosen the rubber ring.
8. Remove the seal insert along with the insert gasket and
retainer (if used).
9. Thoroughly clean the shaft sleeve and the coverplate seal
cavity. Inspect for surface damage like pitting, corrosion,
nicks or scratches. Replace if necessary.
10. Lubricate the shaft sleeve and coverplate seal cavity with
soapy water. (Do not use petroleum lubricant. ) Install a new
cup gasket and a new seal insert with indentation side down
into the cup.
11. Slide a new rotating seal assembly onto the shaft sleeve.
With a screwdriver push on the top of the compression ring
until the seal is tight against the seal insert. Install seal spring.
12. Install impeller, impeller washer. lock washer and capscrew,
then tighten capscrews (per torque chart).
13. Install new volute gasket then install pump assembly into
volute. Tighten volute capscrews (per torque chart). Install
seal flushing tube, if used. Install motor foot capscrews and
tighten. Install drain plug, close drain valve.
14. Open isolation valves, inspect pump for leaks, if not leaking
return pump to service.
WARNING: UNEXPECTED STARUP HAZARD
Disconnect and lock out power before servicing.
Failure to follow these instructions could result in serious
personal injury or death, or property damage.
CAUTION: EXTREME TEMPERATURE HAZARD
Allow pump temperature to reach acceptable levels
before proceeding. Open drain valve, do not proceed until
liquid stops coming out of drain valve. If liquid does not
stop flowing from drain valve, isolation valves are not seal-
ing and should be repaired before proceeding. After liquid
stops flowing from the drain valve, leave valves open and
continue. Remove the drain plug located on the bottom of
the pump housing. Do not reinstall plug or close drain valve
until re-assembly is completed.
Failure to follow these instructions could result in property
damage and/or moderate personal injury.
WARNING: EXCESSIVE PRESSURE HAZARD
Make certain internal pressure of the pump is relieved
before continuing.
Failure to follow these instructions could result in serious
personal injury or death, or property damage.
INSTRUCTION MANUAL
P71000B
