Specifications Specifications Specifications Specifications Specifications
Amplifier 703 Amplifier 703 Amplifier 703 Amplifier 703 Amplifier 703
Measuring range:
Determined by sensor
Voltage: 220 - 240 / 110 - 120 / 24V AC
Consumption: Approx. 10 VA
Temperature: –20 - +60 O C.
Input signal: From ultrasonic sensor,
pressure transmitter or
4-20 mA
Accuracy: ±1%
Outputs:
Analog: 0 - 20/4 - 20 mA max. 500W
Digital: 4 relays with voltage free
change-over contact
Inductive load: 250V, 4A ohmic, max. 100V A.
Indication: 3-digit LED display
Operation: From front panel
Dimensions: 185 x 240 x 115 mm (HxWxD)
Materials: Polystyrol with clear cover
CE: EN50081-1, EN50082-1
Housing: IP 65

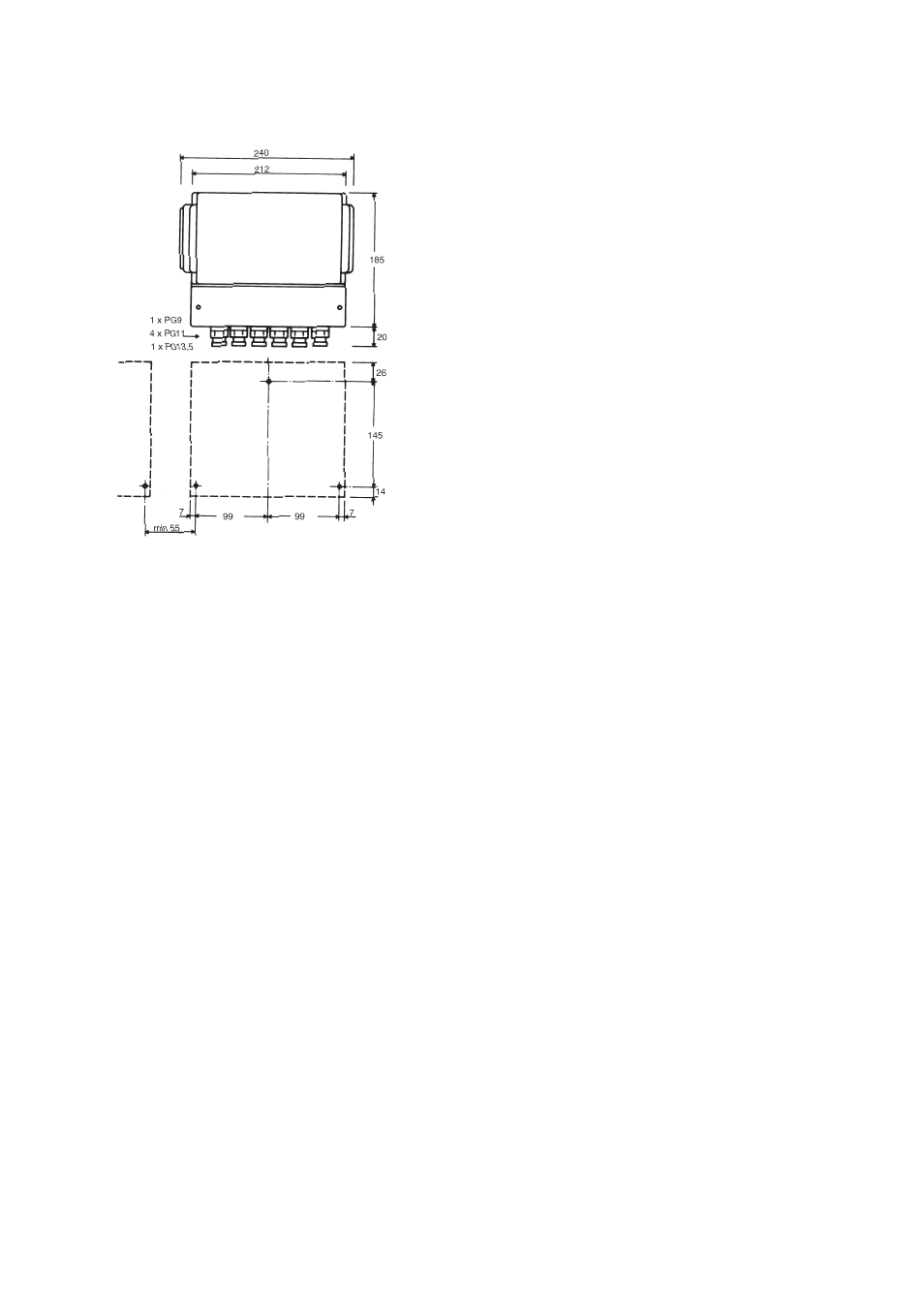

Dimensions Dimensions Dimensions Dimensions Dimensions
Maintenance Maintenance Maintenance Maintenance Maintenance
The amplifier and the ultrasonic sensor does not
demand any particular maintenance.
When cleaning the presure transmitter, care must be
taken not to damage the membrane.
Ordering Details: Ordering Details: Ordering Details: Ordering Details: Ordering Details:
Part no.: Specification: Part no.: Specification: Part no.: Specification: Part no.: Specification: Part no.: Specification:
201020 703U-1111
Ultras. Pump Control. 0-10 m, with 7005-1013
202004 703P-1103 Pump Controller without transm., input 4-20mA
(only absolute pressure)
202010 703P-1104 Pump Controller without transm., input 4-20mA
202017 703P-1114 Pump Controller with 7060-1413, range 0-3 m
202019 703P-1124 Pump Controller with 7060-1423, range 0-10 m
202021 703P-1134 Pump Controller with 7060-1433, range 0-30 m
202015 703P-1113 Pump Controller with 7050-1413, range 0-10 m
(Absolute pressure transmitter with compensation)
Accessories for Amplifier Accessories for Amplifier Accessories for Amplifier Accessories for Amplifier Accessories for Amplifier
200105
Panel mounting kit
200115 Local mounting kit with rain roof
Accessories for Sensor 7005 Accessories for Sensor 7005 Accessories for Sensor 7005 Accessories for Sensor 7005 Accessories for Sensor 7005
200220
Bracket for 7005
200590 Cable connection box for 7005
200595 Cable length not standard for 7005
690010 Cable for 7005
Accessories for Pressure Transmitters Accessories for Pressure Transmitters Accessories for Pressure Transmitters Accessories for Pressure Transmitters Accessories for Pressure Transmitters
202920
Cable length not standard
202922 Cable connection box for pressure transmitters
202923 As 202922, with plug for programming unit
691010 Cable for 7050
691014 Cable for 7060
