Example of PLC controlled sample Example of PLC controlled sample Example of PLC controlled sample Example of PLC controlled sample Example of PLC controlled sample
The sampler is connected to a PLC. In the example a
MITSUBISHI MELSEC F-12R is displayed, but any PLC can
be used.
Miscellaneous Miscellaneous Miscellaneous Miscellaneous Miscellaneous
Maintenance Maintenance Maintenance Maintenance Maintenance
The sampler must be kept clean of dirt on the following
points:
* The sampler glass must be kept clean on the inside
* The level electrodes in the top of the sample glass must
be cleaned
* The sample tube and the outlet tube must be cleaned
How often the cleaning is necessary, depends on how often
the sampler is used. In municipal sewage plant, we
recommend monthly cleansing, where the sampler tube is
put in a bucket with 10% diluted hydrochloric acid.
Hydrochloric acid is a degreaser and cleans grease and
sludge from all inside surfaes.
Start the sampler 2-5 times dependent on how much
coating there is on the inside surfaces.
The plastic house inside between the electrodes should be
cleaned.
The outlet tube should be removed during cleaning.
Spare parts Spare parts Spare parts Spare parts Spare parts
Item nr.: Item nr.: Item nr.: Item nr.: Item nr.: Description: Description: Description: Description: Description:
Complete units Complete units Complete units Complete units Complete units
803510
control unit complete with front panel
803515 Power supply unit
115/230V AC and 12V DC
813510 Valve / pumping unit
Other parts Other parts Other parts Other parts Other parts
595120
Suction hose, PVC, dia. 9,0mm.
Specify length.
595121 Discharge hose, Silicone, dia. 9,5mm,
Specify length.
595110 Sample glass
570025 O ring for sample glass, silicone,
dia. 75mm x 8mm
570027 O ring for measuring pipe, nitril, dia. 10 x 3mm

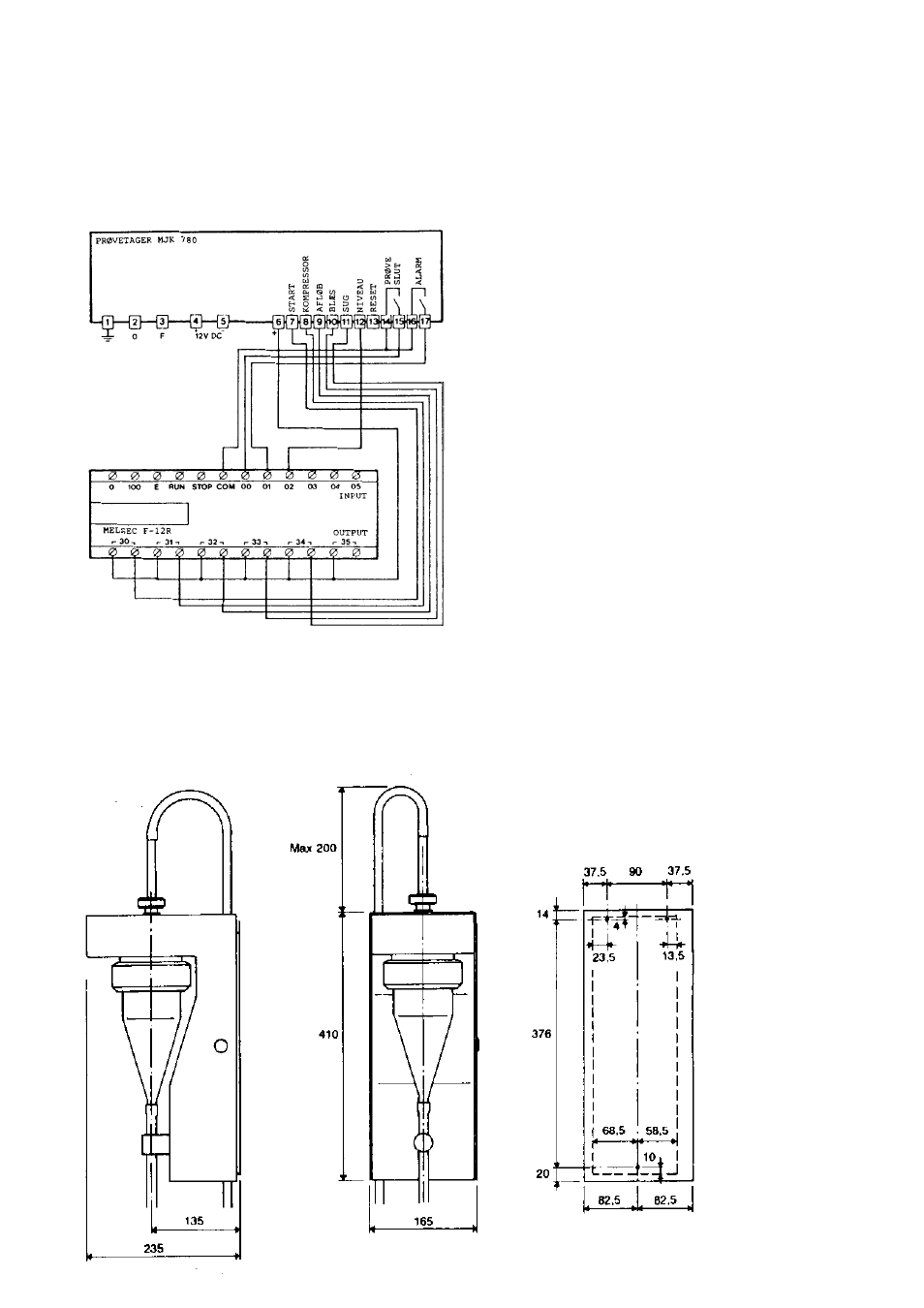

Dimensions Dimensions Dimensions Dimensions Dimensions
