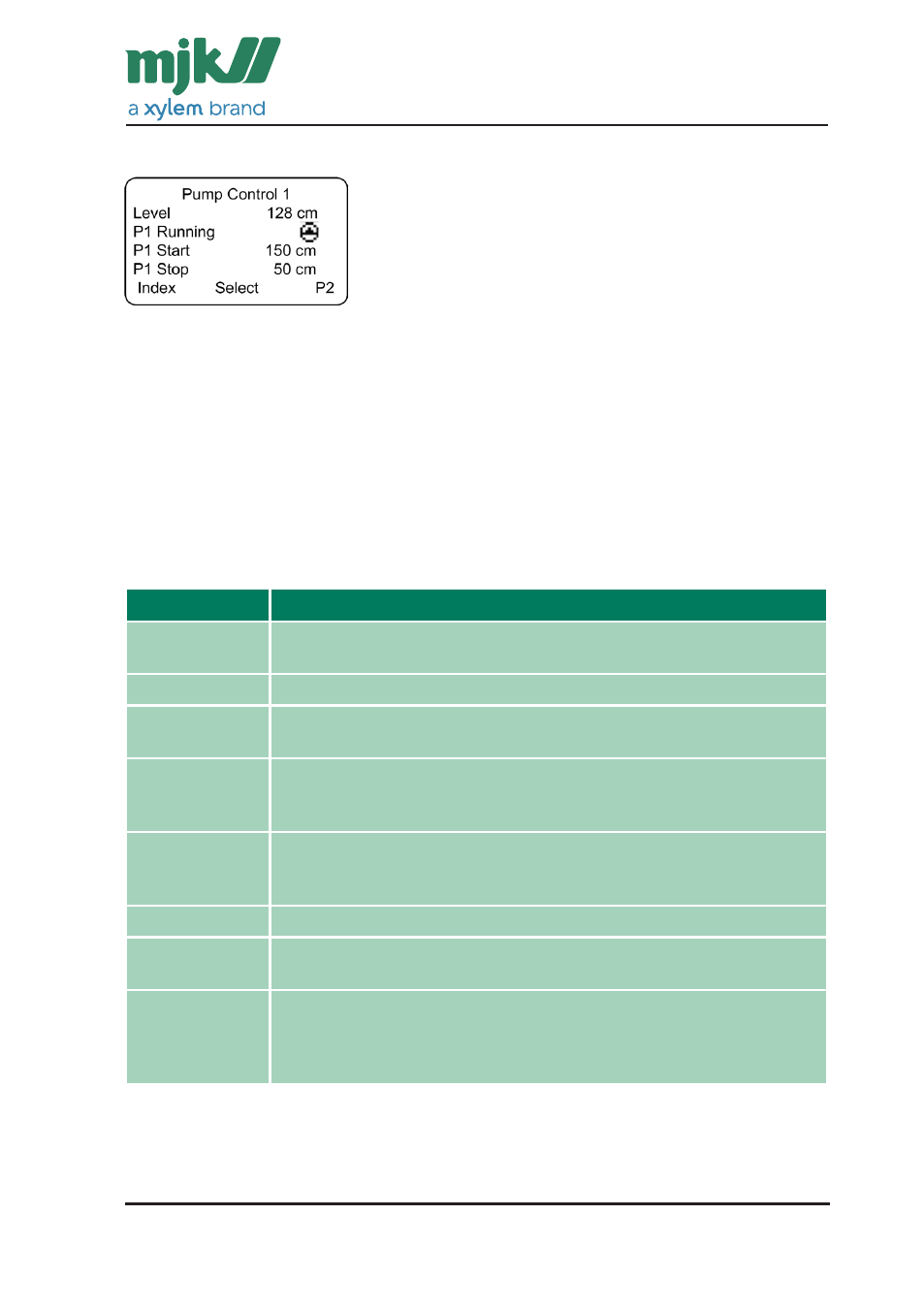

Overview Screen for Pump Control 1
By pressing the right key below the display (P2), the display changes to a
similar one for Pump 2. The key will then change name to P3 - P4, depending
on how many pumps have been created in the function Pump Control 1.
Navigate with the up/down arrows below Select. Arrow down will select the
first/top line, another arrow down will select the second line, etc.
Note: There can be discrepancies from this screen if lines have been added/
changed by the user.
Screen Information:
Text line Description
Pump Control 1 This is the name of the function. You can change this to for example
the name of the pump station
Level Shows the current level in the pumping sump.
P1 Running The operation status of the pump. This is shown as text and icons.
See below list.
P1 Start The start level of the pump is changed here. Select the line and
enter the desired start level on the display with the numerical key-
board. Save with OK.
P1 Stop The stop level of the pump is changed here. Select the line and
enter the desired stop level on the display with the numerical key-
board. Save with OK.
Index Switch between the functions menu and the overview screens.
Select Use up/down arrows to scroll in the current screen and selecting a
line or function.
P2 Use the right key below the display to change to a similar view for
Pump 2. The key will then change name to P3 - P4, depending on
how many pumps have been created in the function Pump Control
1.
