1" ISO thread

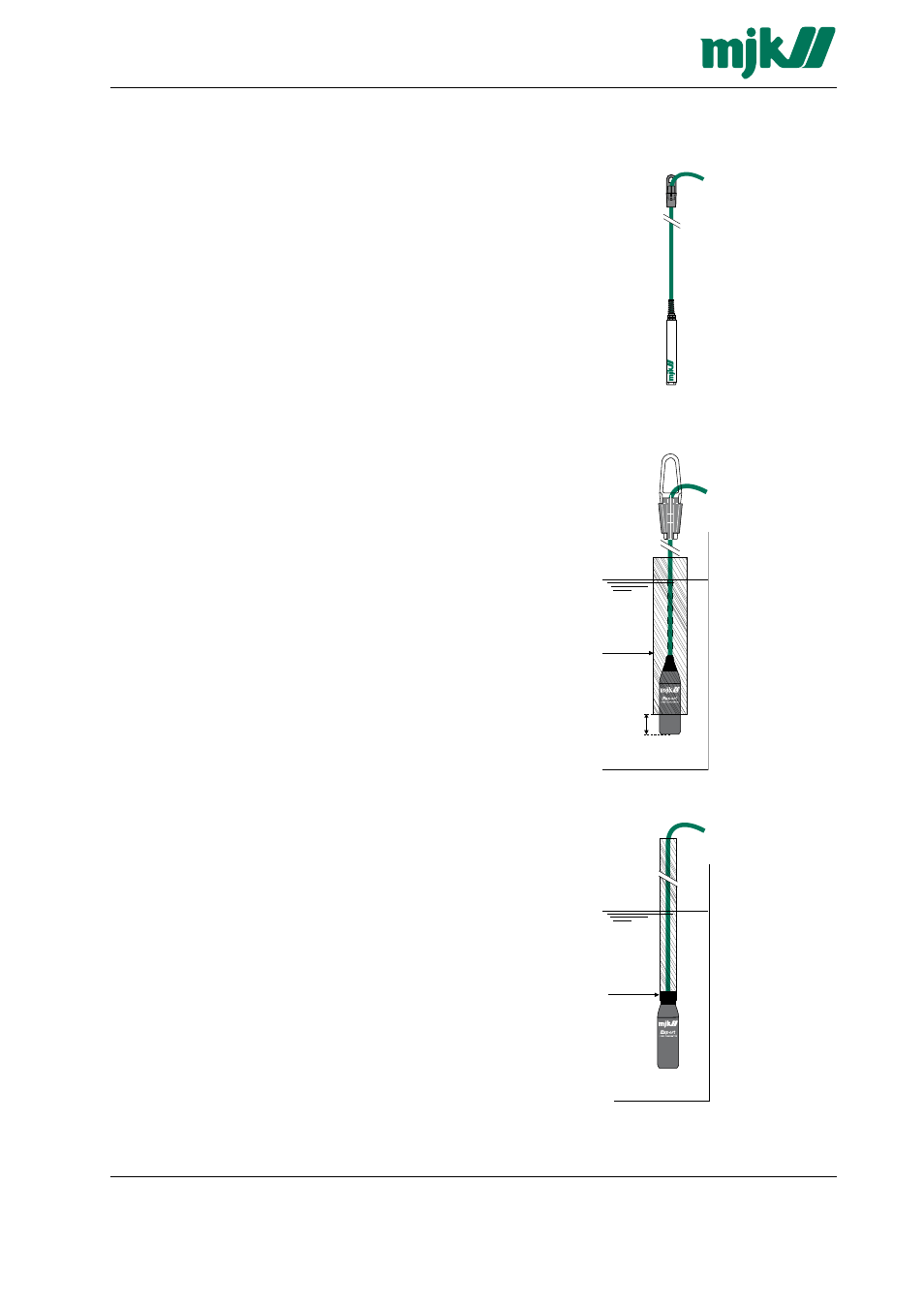

Mechanical mounting
Model 1400
1: Mount a suitable hook over the desired measuring
location. Note the weight of the cable.
2: Remove the inner conical sleeve from the cable fitting
and pull the cable through the outer part. Open the inner
sleeve and fit it around the cable at the desired fixation
point and press the inner sleeve into place in the outer
part. Secure the cable fitting by pulling the
cable downwards.
3: Lower the pressure transmitter into the wellpipe.
Take care not to hit the bottom hard since it may damage
the transmitter!
Model 3400
1: Mount a suitable hook over the desired measuring
location. Note the weight of the cable.
2: Mount the cable fitting onto the cable. Open the fitting
by sliding the two plastic jaws upwards, place the cable
between the jaws and slide the jaws downwards until the
cable locks. Secure the cable fitting by pulling the
cable downwards.
3: Lower the pressure transmitter into the liquid.
Take care not to hit the bottom hard since it may damage
the transmitter!
4: If the transmitter is to be used in a wetwell or other
locations with turbulence or other disturbance, it is ad-
visable to install a pipe (min. nominal diameter = 75 mm)
to protect the transmitter from bumping into the wall or
other components.
It is very important that minimum 25 mm of the pressure
transmitter is not being covered by the pipe!
Model 3400 with thread top
1: Mount the pressure transmitter onto a 1 in pipe
(1” ISO thread) and mount the pipe firmly at the desired
measuring location.
2: Lower the pressure transmitter into the liquid.
Take care not to hit the bottom hard since it may damage
the transmitter!
Model 3400
Model 3400
Cable
bracket
Protective pipe.
Min. nominal
diameter = 75mm
Min. 25-50 mm
Cable
bracket
Model 1400
Protective pipe.
