10
Manual
Manual Expert 1400/3400 GB 0704
MJK Automation A/S
Byageren 7
DK-2850 Naerum
Denmark
Tel.: +45 45 56 06 56
Fax: +45 45 56 06 46
[email protected]
www.mjk.com

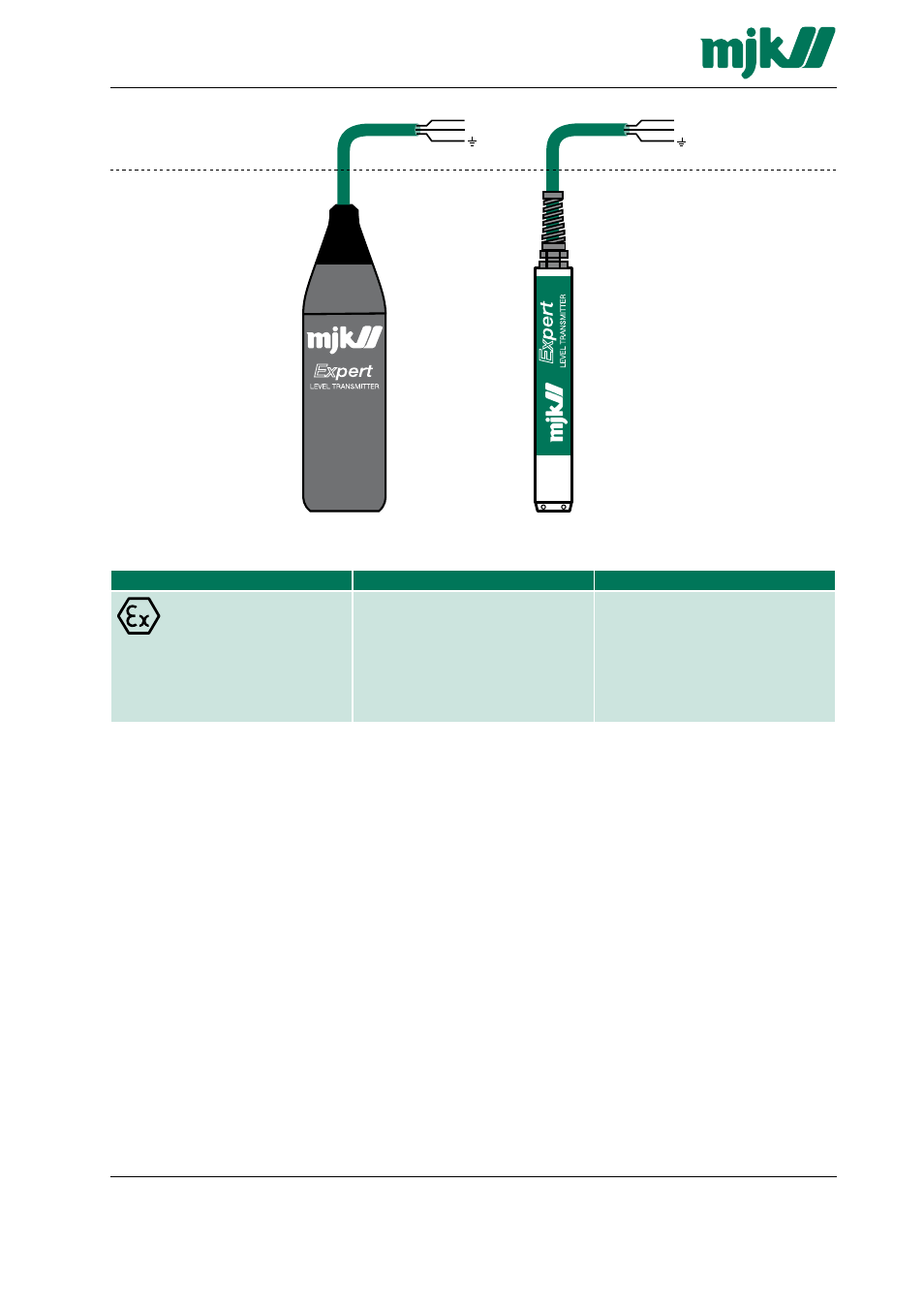

+ Red
- Brown
Shield
Black + Red
- Brown
Shield
Black
Type 3400 Type 1400
Non hazardous area
Explosive hazardous area
Zone 1
Using the KFD0-CS-Ex1.50P isolator (MJK order no.:
202993) the max. cable length is 129 m.
Using The Z788 Zener Barrier (MJK Order no. 202995)
the max. cable length is 99 m.
Alternatively other cable types with equivalent specifica-
tions may be used. If a cable is used with other electrical
specifications or other approved isolators and zener
barrier are used, the cable length must be recalculated.
Type of protection Electrical data Ambient temperatur
II 2G EEx ia IIC T6 IP 65
Ui: 30 V DC
Ii: 101 mA
Pi: 750 mW
Ci: 3,5 nF+800 pF/m*cable length
Li: 7
μ H+1.5 μ H/m*cable length
-20 °C < Ta < 40 °C
