Dissolved Oxygen DO600
II
RECALL
1
2
3
4
5
6
7
8
9
Membrane Cathode
Electrode Bottom View
Introduction
Congratulations on your purchase of the ExStik
®
DO600 dissolved oxygen / temperature
meter which simultaneously displays dissolved oxygen and temperature. Units of measure
are % saturation, mg/l or ppm for dissolved oxygen, and °C or °F for temperature. Advanced
features include Data Hold, 25 points memory, auto power off, automatic temperature
compensation, salinity and altitude compensation. Careful use and maintenance will provide
years of reliable service.

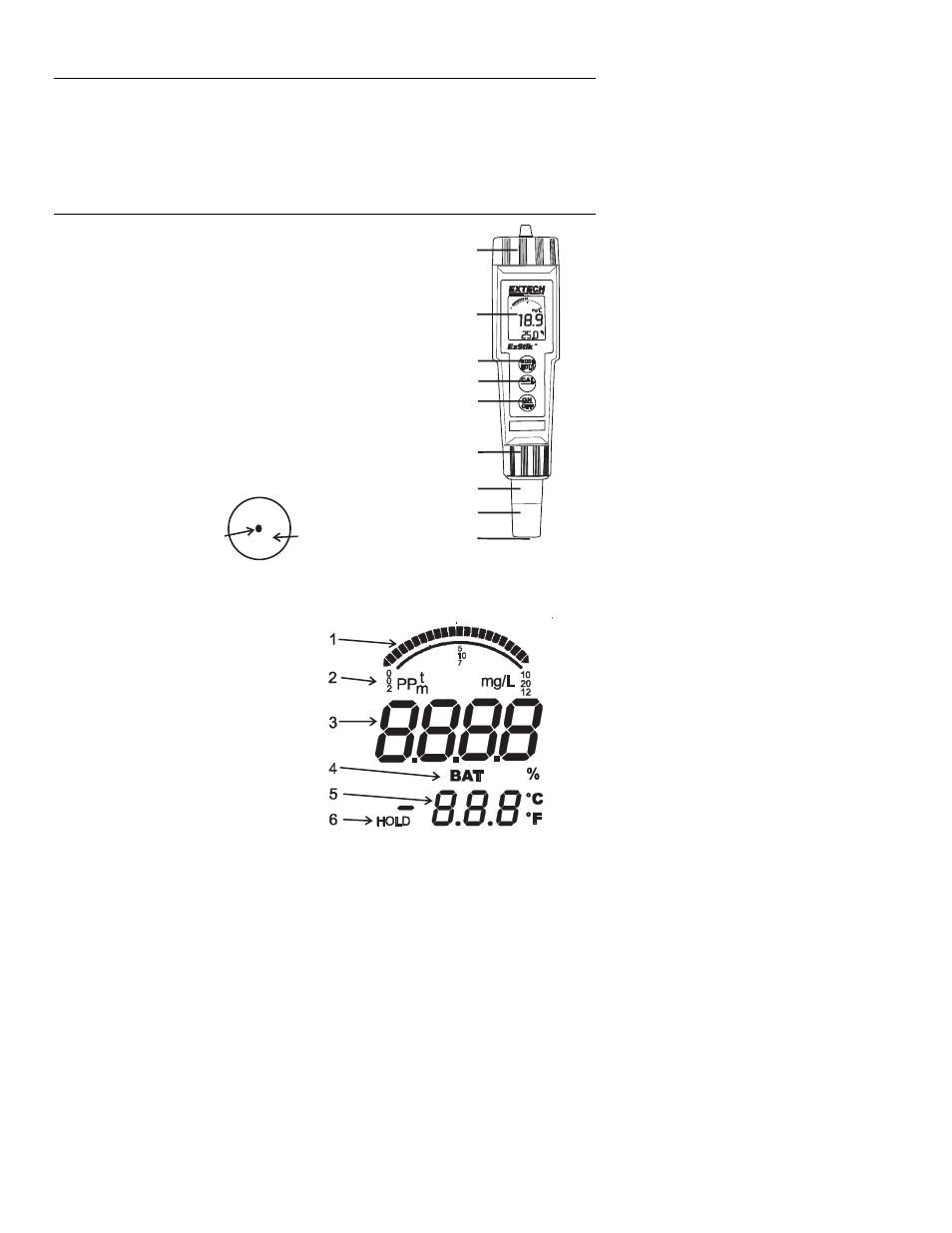

Meter Description
Front Panel Description
1. Battery compartment cover
2. LCD Display
3. MODE/HOLD button
4. CAL/RECALL button
5. ON/OFF button
6. Electrode Retaining Collar
7. Dissolved Oxygen Sensor
8. Bonded Membrane Cap assembly
9. Membrane & Cathode
(Note: The Electrode storage cap is not shown)
LCD Display
1. Bargraph display
2. Measurement units
3. Main display
4. Low Battery indicator
5. Temperature display
6. Reading hold indicator
