Technical data CellOx 325
30
7 Technical data
General features Measuring principle Membrane covered galvanic sensor
Temperature compensation IMT compensation
(calculated by the measuring instrument)

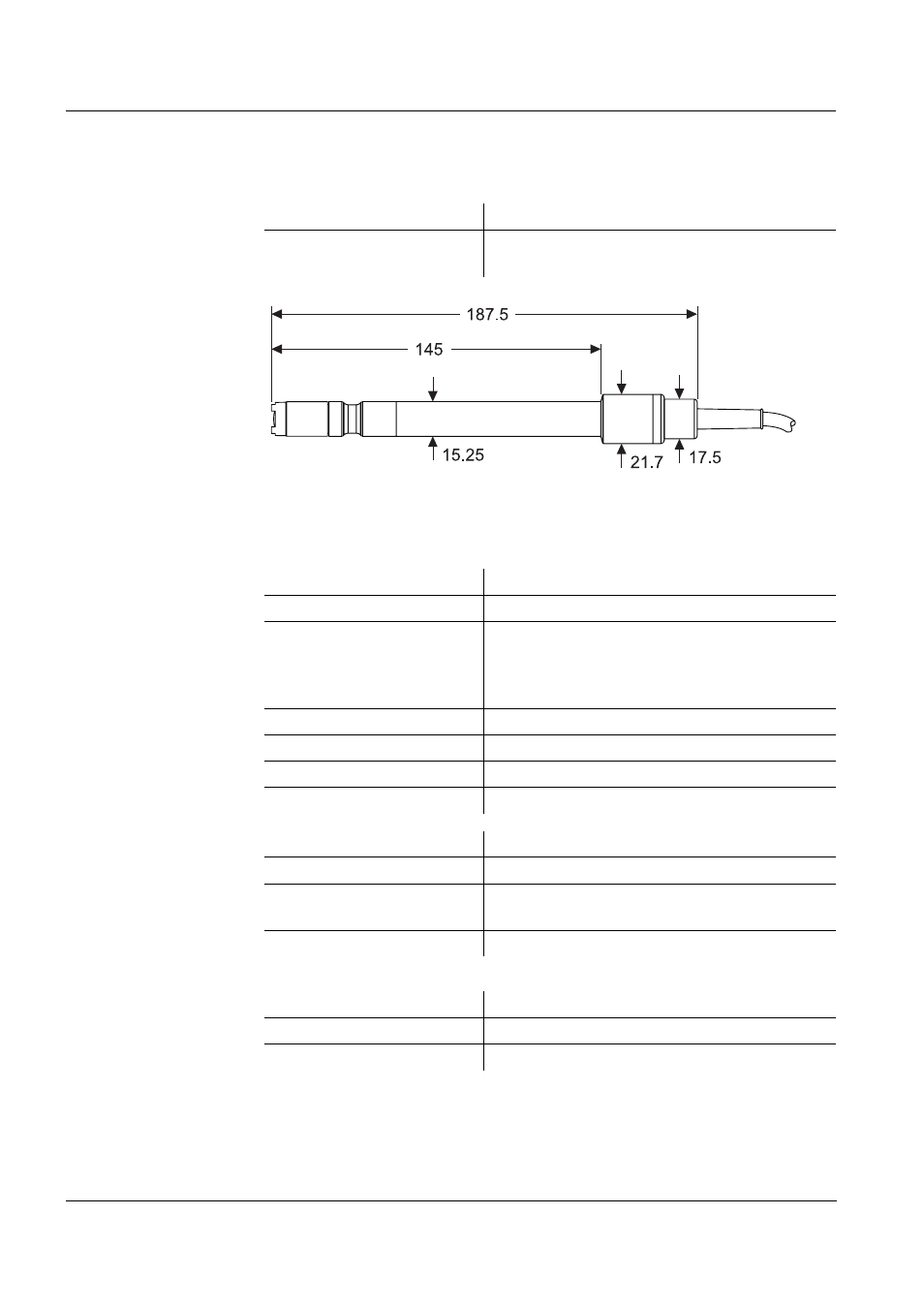

Dimensions
(in mm)
Weight 170 g (with 1.5 m cable)
Materials Working electrode Gold
Counter electrode Lead
– Shaft
– Connection head
– Screwed cable gland
– Membrane head POM
Membrane FEP, 13
µ
m
Sensor head Epoxy, PEEK
Thermistor housing VA steel 1.4571
Seals FPM (Viton)
Connection cable Lengths 1.5 ... 20 m
Diameter 6 mm
Smallest allowed
bend radius Permanent bend: 80 mm
Single time or short time bend: 50 mm
Plug type Socket, 8 pins
Pressure
resistance
Sensor IP 68 (6 bar)
Sensor cable IP 68 (2 bar)
Plug IP 67 (when plugged in)
The CellOx 325 meets the requirements according to article 3(3) of the
97/23/EC directive ("Pressure equipment directive").
