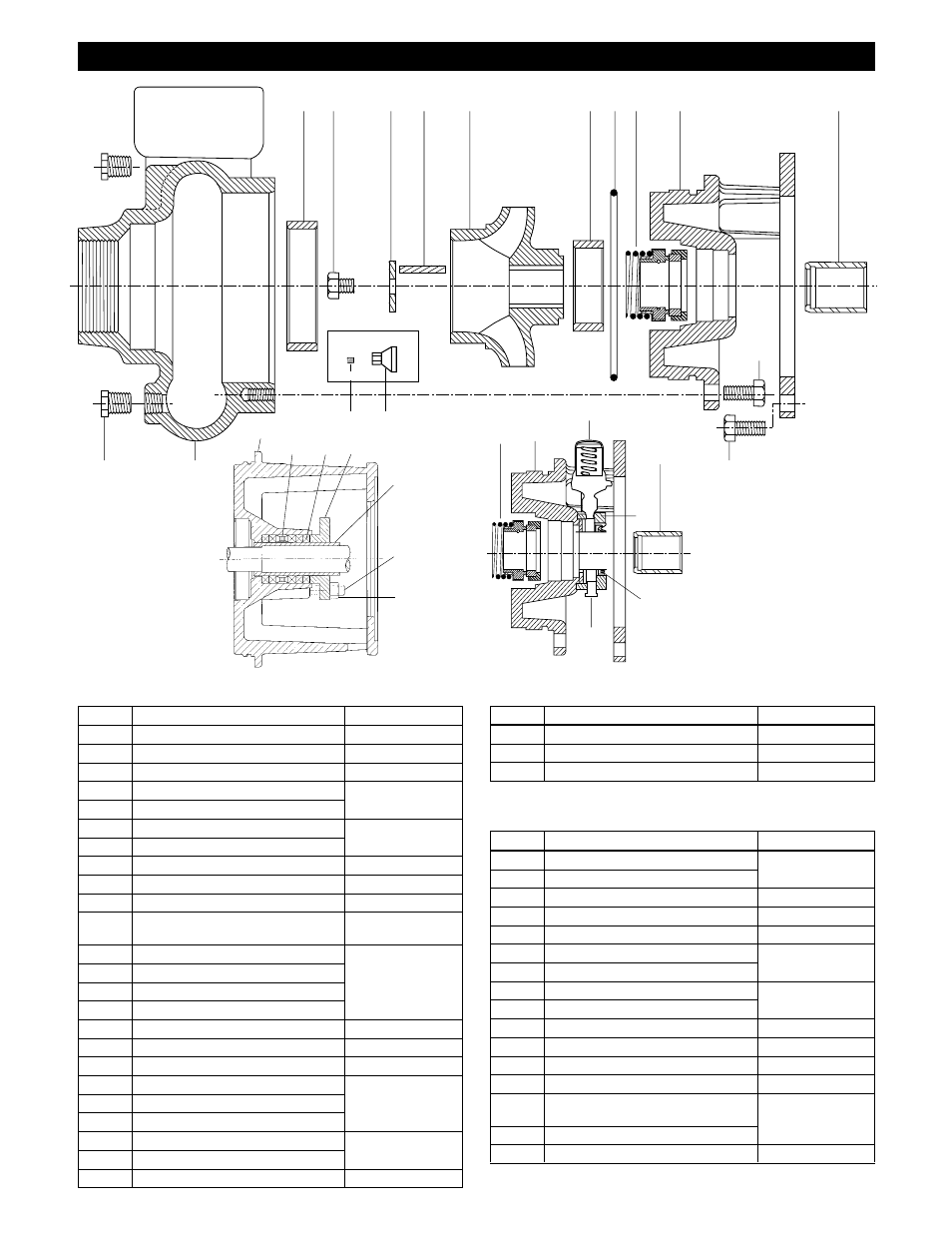

lIqUID EnD ComPonEnTS
Item no. Description
material
1 Casing Cast Iron
2 Impeller Cast iron or Sil-brass*
3 Adapter Cast Iron
4 Wear ring (casing) Cast iron or bronze*
5** Wear ring (seal housing)
6 Impeller bolt
7 Impeller washer
8 Impeller key Steel
9 Seal housing o-ring (optional materials) BUNA-N/EPR/Viton
10 Mechanical seal Consult factory
11 Shaft sleeve AISI Type 300
stainless steel
12 Drain plug – ¼ or 3 ⁄
8
NPT
13 Hex head cap screw (casing to adapter) Zinc plated steel
14 Hex head cap screw (adapter to motor/frame)
15 Hex head cap screw (Adapter to seal housing)
16 Lantern ring Teflon™
17 Packing, 5 rings Teflon™ impregnated
18 Gland AISI 300SS
19 Shaft sleeve
20 Gland stud
21 Gland nut
22 Impeller nut (SAE only) 304 SS
22A Set screw, impeller nut (SAE only)
23 Grease feeder (oiler optional) Polycarbonate
Repair Parts Series 3656/3756
AISI Type 300
stainless steel
PowEr EnD ComPonEnTS (shown on next page)
Item no. Description
material
112 Ball bearing (outboard) Steel
122 Pump shaft
122A Pump shaft (SAE) AISI 4140 steel
123 V-ring, deflector BUNA-N
134 Bearing cover Cast iron
138 Lip seal (outboard) BUNA-N
139 Lip seal (inboard)
168 Ball bearing (inboard) Steel
193 Grease fitting (M & L group)
327C Screw (cover to adapter) (SAE only) Zinc plated steel
340 Adapter/engine (SAE only) Cast iron
361 Retaining ring Steel
370C Hex head cap screw (frame to cover) Zinc plated steel
371C Hex head cap screw (adapter to frame)
(SAE only) NOT SHOWN Steel
399 Key, coupling
501N Cover/adapter (SAE only) Galvanized steel
SAE M & L
Replaces 6 & 7
4 6 7 8 2 5 9 10 3 11
13
12 1 14
AISI Type 300
stainless steel
lIqUID EnD ComPonEnTS
Item no. Description
material
24 Grease gland Aluminum
25 Pipe plug Zinc plated steel
26 Lip seal Buna
* Lead free
16 17 18
20
19
21
Packed Box Arrangement
3
Prime Safe Arrangement (optional – Shaft of 1 1 ⁄
4
" Ø and 1 5 ⁄
8
" Ø only)
10 3
23
11
26
24
25
22 22A
