Xylem VTP2006 Series VTP – Vertical Turbine Pumps User Manual
Page 41
41
ENSAMBLE dE LA CABEZA dE dESCArGA
ELEMENTO
DESCRIPCIóN
600
CABEZA DE DESCARGA
601
SOPORTE DE MOTOR
608
EJE SUPERIOR
610
ENSAMBLE DE ACOPLAMIENTO
616
CAJA DE SELLO
617
COJINETE DE CAJA DE SELLO
60
SELLO MECÁNICO
67
BRIDA DE LA COLUMNA
779
JUNTA DE CAJA DE SELLO
ENSAMBLE dE CoLUMNA
64
TUBO DE COLUMNA
645
ACOPLAMIENTO DE COLUMNA
646
EJE INTERMEDIO
649
ACOPLAMIENTO DEL EJE
INTERMEDIO
65
RETENEDOR DE COJINETE
656
COJINETE DEL EJE
INTERMEDIO
ENSAMBLE dE LoS TAZoNES
660
EJE DE TAZONES
661
TAZÓN DE DESCARGA
664
COJINETE DE DESCARGA
670
TAZÓN INTERMEDIO
67
COJINETE DE TAZÓN INTERM.
67
IMPULSOR
677
SEGURO CÓNICO
680
ANILLO DE DESGASTE (OPCIONAL)
760
PERNO HEXAGONAL
69
ANILLO PROTECTOR
688
TAZÓN/CAMPANA DE SUCCIÓN
690
COJINETE DE SUCCIÓN
698
COLADOR DE SUCCIÓN
747
TAPÓN

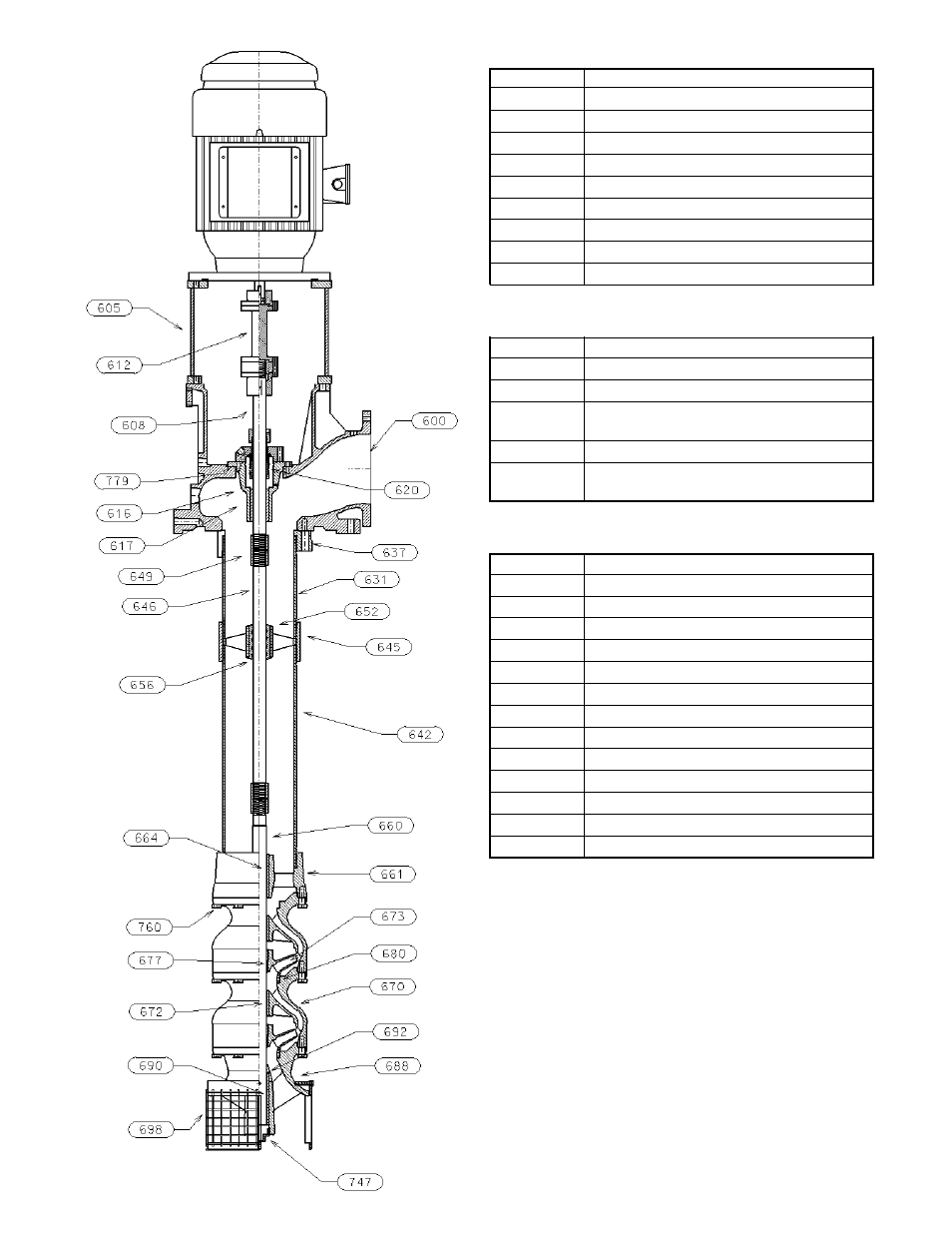

Figura 1 Bomba de eje intermedio abierto con
tubo de columna roscada
