Connecting your TV and AV-in cables

Follow the instructions below to set up the TV function of your Acer Aspire
notebook.

PAL/SECAM and NTSC systems

Plug the PAL/SECAM cable’s RF plug into your notebook’s RF jack.

Connect the other end to your TV antenna cable, using the NTSC converter
if necessary.

Important! Please ensure you use the correct cable system for your region before

attempting to connect the antenna cable.

Acer DVB-T digital antenna

To connect the antenna:

Plug the antenna cable into the RF jack of your notebook.

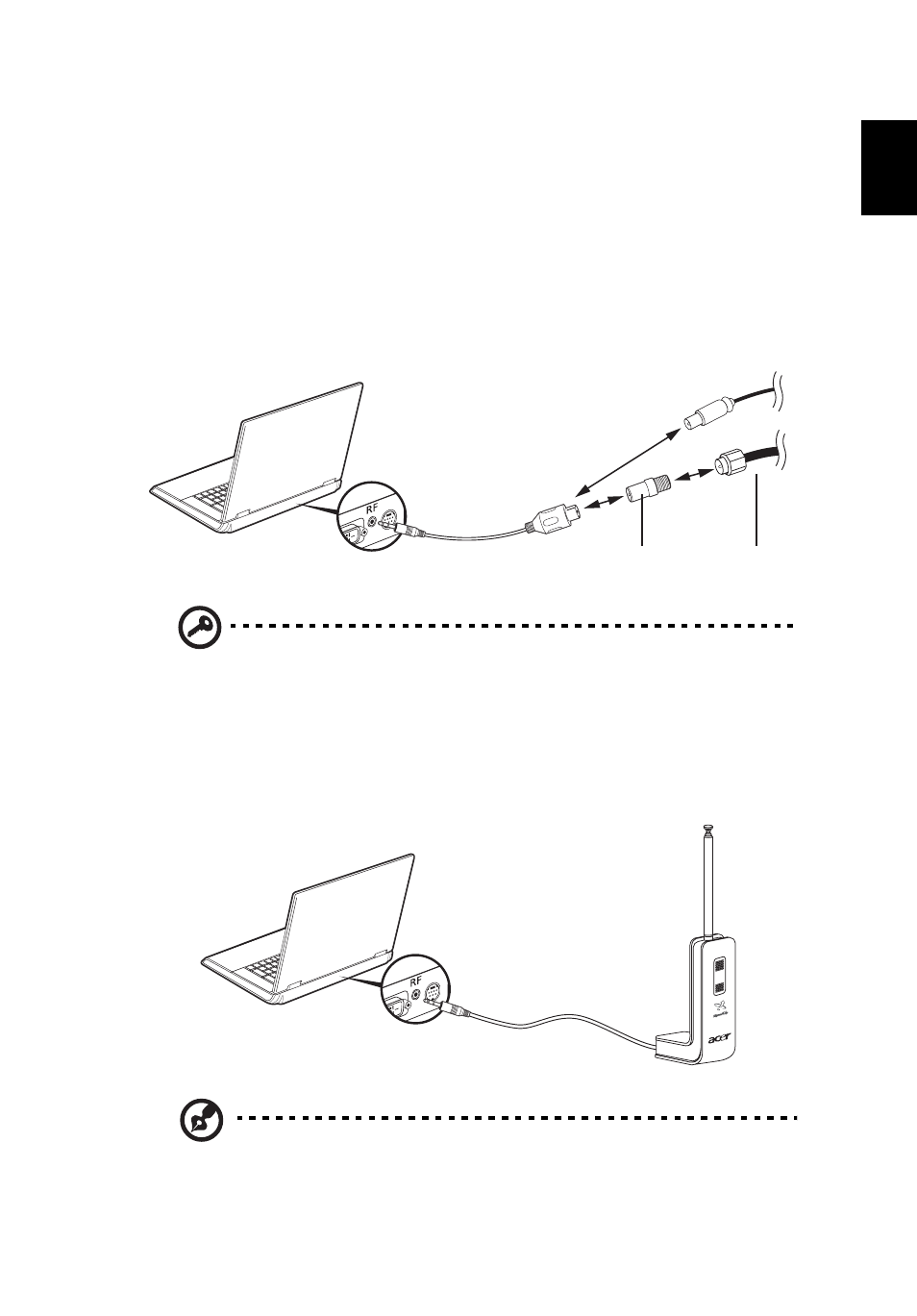

Note: All diagrams are for reference purposes only. Actual equipment may

differ in appearance.

Converter

PAL/SECAM

NTSC

Home antenna
