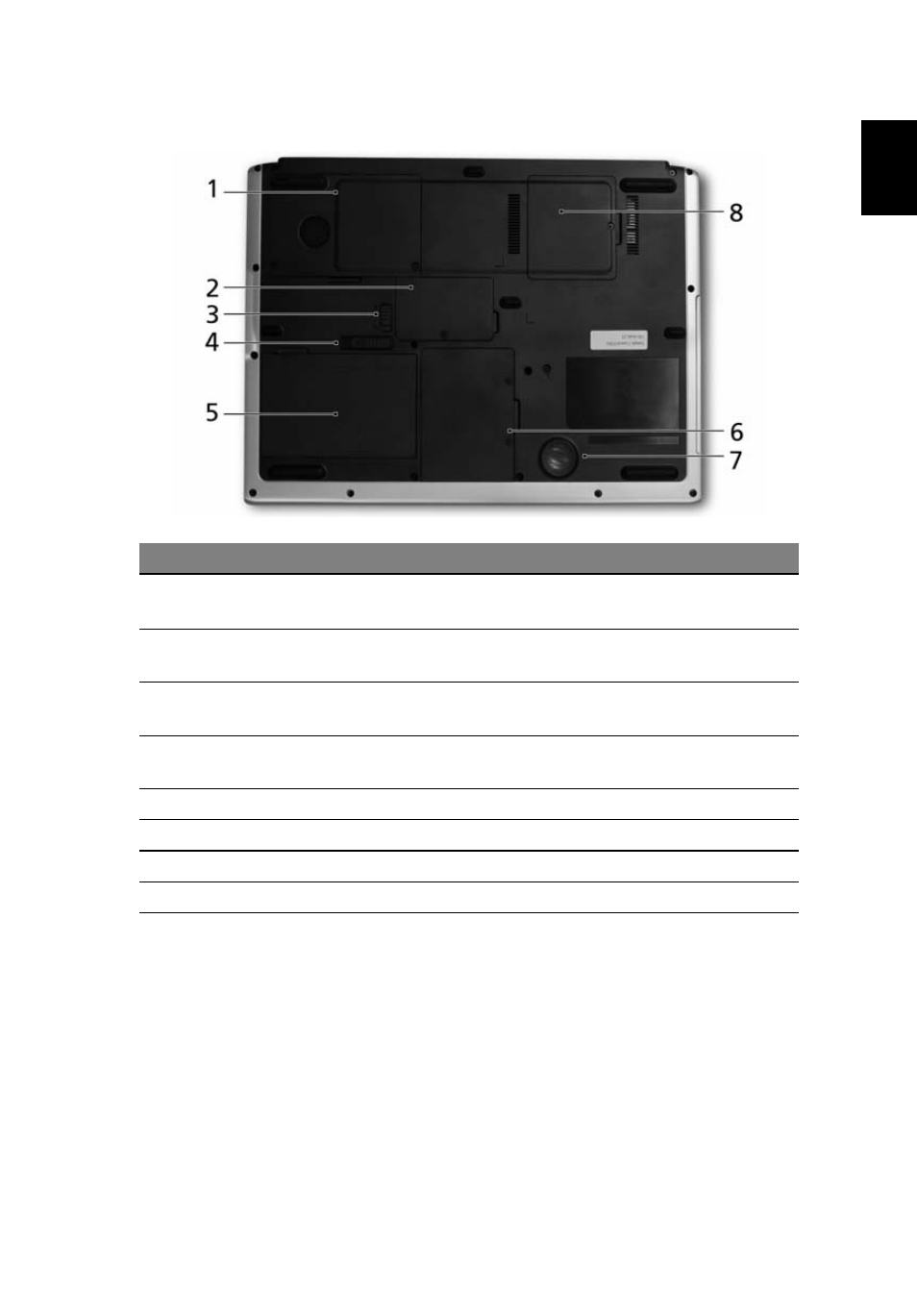

Base view
# Item Description
1 Cooling fan Helps keep the computer cool.
Note: Do not cover or obstruct the opening of the fan.
2 Memory
compartment Houses the computer's main memory.
3 Battery lock
latch Locks the battery in place.
4 Battery release
latch Releases the battery for removal.
5 Battery bay Houses the computer's battery pack.
6 Hard disk bay Houses the computer's hard disk (secured by a screw).
7 Sub woofer Emits low frequency sound output.
8 PCI Card bay Houses the computer’s Mini PCI Card.
