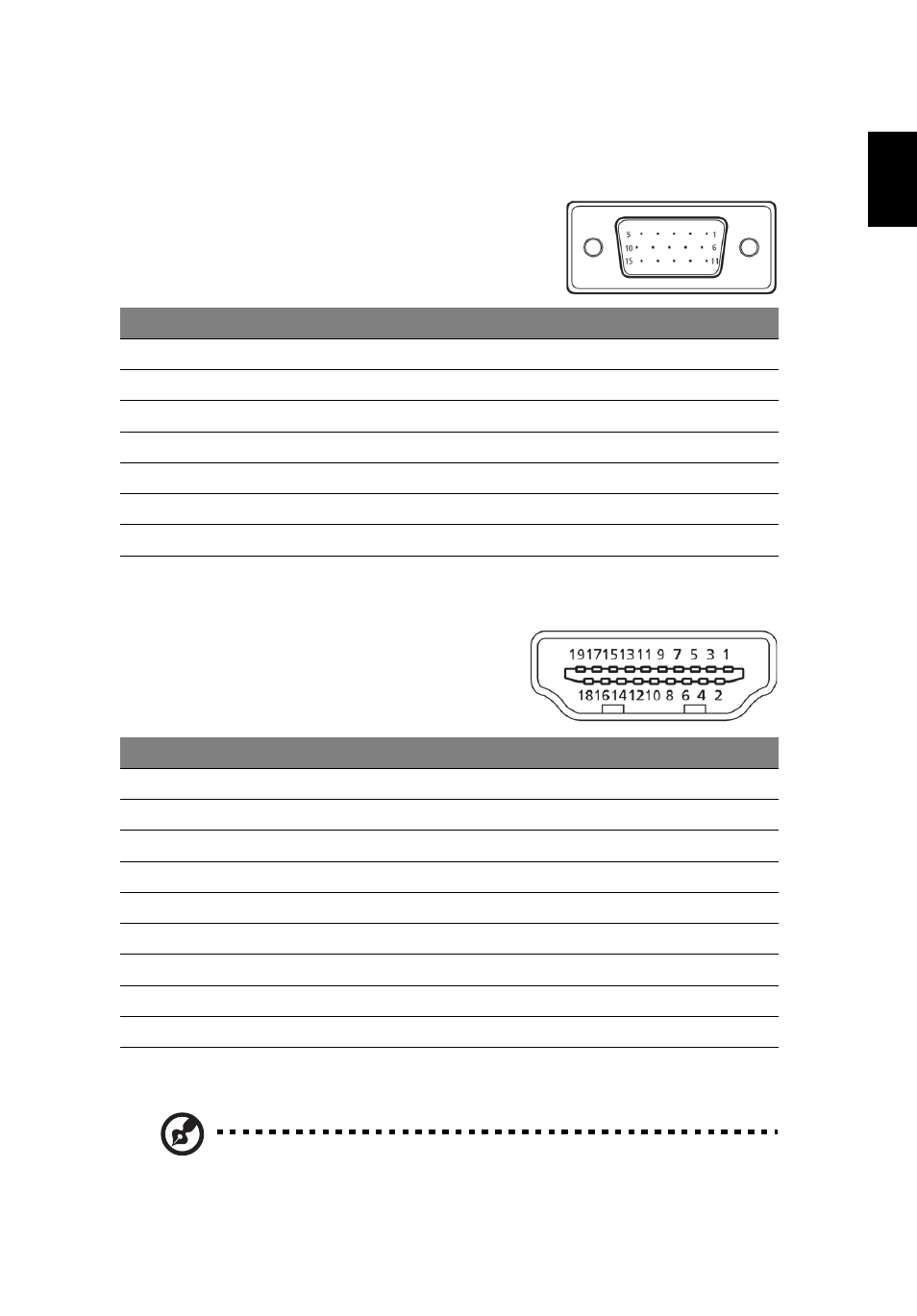

Connector pin assignment
15-pin color display
signal cable
Pin Description Pin Description
1 Red 9 +5V
2 Green 10 Sync-Ground
3 Blue 11 Monitor Ground
4 Monitor Ground 12 DDC-Serial Data
5 DDC-Ground 13 H-Sync
6 R-Ground 14 V-Sync
7 G-Ground 15 DDC-Serial Clock
8 B-Ground
19-pin color display
signal cable*
Pin Description Pin Description
1 TMDS Data 2+ 10 TDMS Clock+
2 TMDS Data 2 Shield 11 TDMS Clock Shield
3 TMDS Data 2- 12 TDMS Clock-
4 TMDS Data 1+ 13 CEC
5 TMDS Data 1 Shield 14 Reserved (N.C. on device)
6 TMDS Data 1- 15 SCL
7 TMDS Data 0+ 16 SDA
8 TMDS Data 0 Shield 17 DDC/CEC Ground
9 TMDS Data 0- 18 +5V Power
19 Hot Plug Detect
Note: * For certain models only.
