INSTALLATION

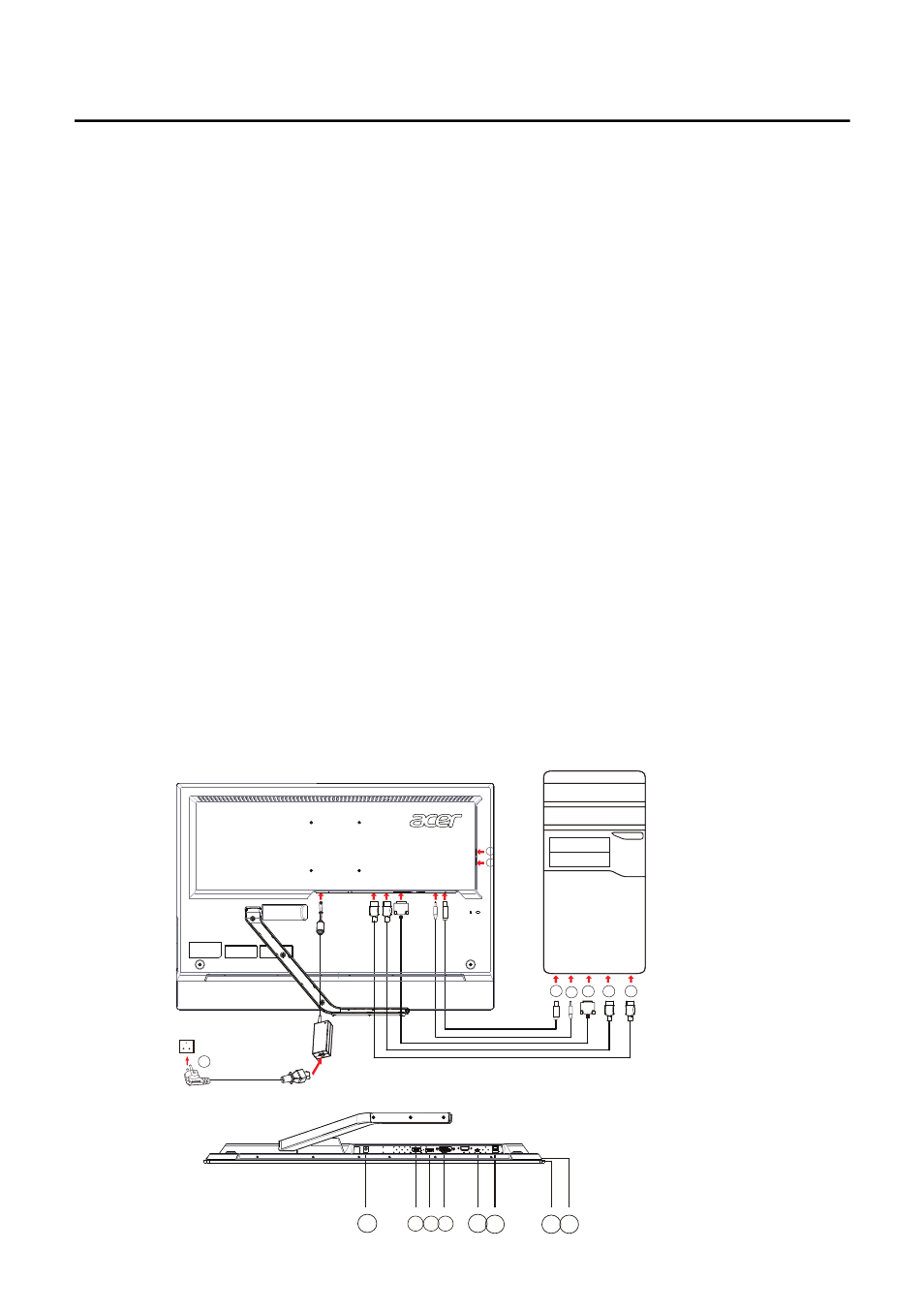

To install the monitor to your host system, please follow the steps as given
below:
Steps
1.
1-1
1-2
Connect Digital Cable (Only Dual-Input Model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the 24-pin DVI cable to the back of the
monitor and connect the other end to the computer’s port.
Connect HDMI Cable (Only HDMI-Input Model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the HDMI cable to the computer.
2. 2-1 Connect the USB Cable(Optional)
2-2 Connect the USB 3.0 cable to port for fast charge.
2-3 Connect the USB 3.0 cable to port.
3.Connect the Audio Cable(Only Audio-Input Model)(Optional)
4. Connect pow er adapter and power cord
Connect the pow er adapter and power cord to the monitor, then to
a properly grounded AC outlet.
5. Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer.
This sequence is very important.
6. If the monitor still does not function properly, please refer to the
troubleshooting section to diagnose the problem.
1-3 Connect DP Cable (Only DP -Input Model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the DP cable to the computer.
