EN-10

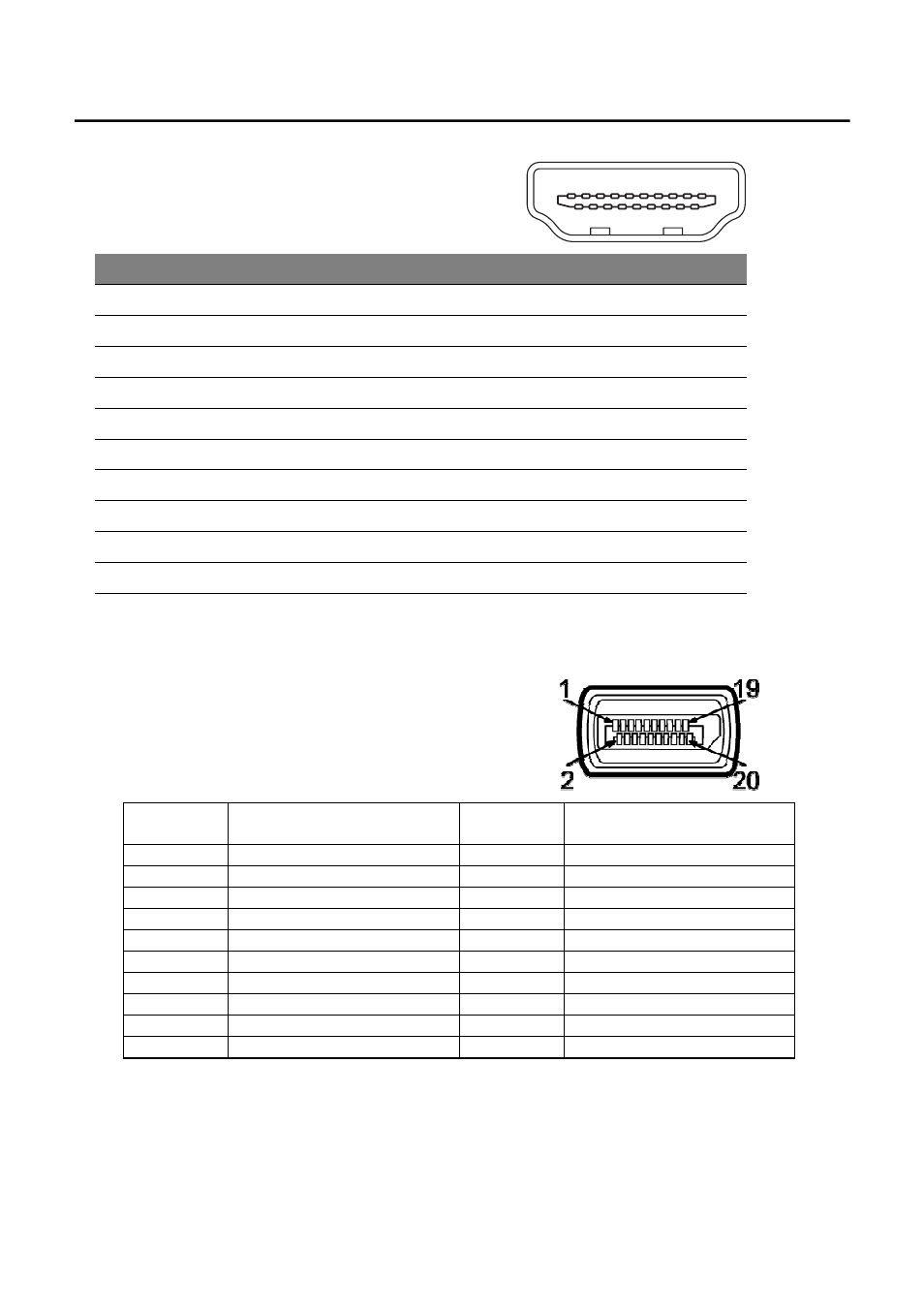

19-pin Color Display Signal Cable*
* only for certain models
PIN No. Description PIN No. Description
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2– 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1–
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0– 10 TMDS Clock+
11 HDMI_DET 12 TMDS Clock–
13 14 Reserved (N.C. on device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect
1 3 5 7 9 11
8 10 4 6 2
13 15 17 19
12 14 16 18
Reserved (N.C. on device)
of the
Signal Cable
1 ML3(n) 11 GND
2 GND 12 ML0(p)
3 ML3(p) 13 CONFIG1
4 ML2(n) 14 CONFIG2
5 GND 15 AUX(p)
6 ML2(p) 16 GND
7 ML1(n) 17 AUX(n)
8 GND 18 HPD
9 ML1(p) 19 Return
10 ML0(n) 20 DP_PWR
DisplayPort Connector
Pin 20-pin Side of the Pin 20-pin Side of the
Number Connected Signal Cable Number Connected Signal Cable
