C2G 29572 WIRELESS USB TO VGA ADAPTER KIT User Manual
Page 36
35

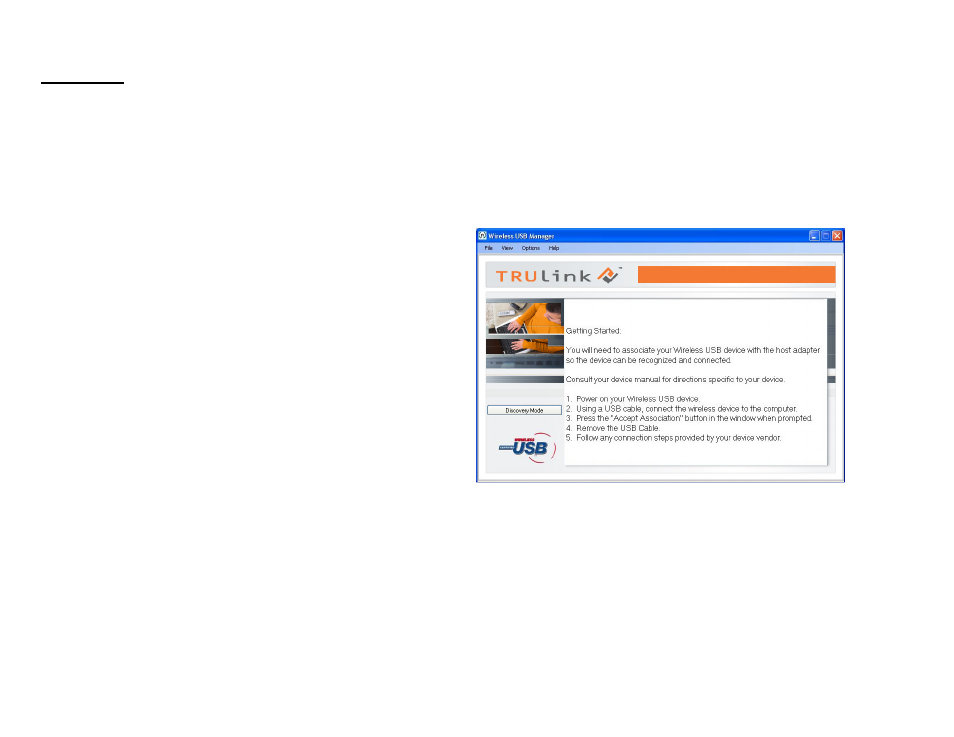

Figure: Discovery Mode Screen
P
IN
A
SSOCIATION
P
ROCEDURE
PIN association steps: Examples/Figures shown used with the association of the TruLink Wireless VGA
Device Adapter when used with the TruLink Wireless USB Host Adapter.
1. Make sure your Wireless VGA Device Adapter is
powered on and your Wireless USB host adapter is
connected to your computer. Click the “Discovery
Mode” button (Figure: Discovery Mode Screen).
A
PPENDIX
