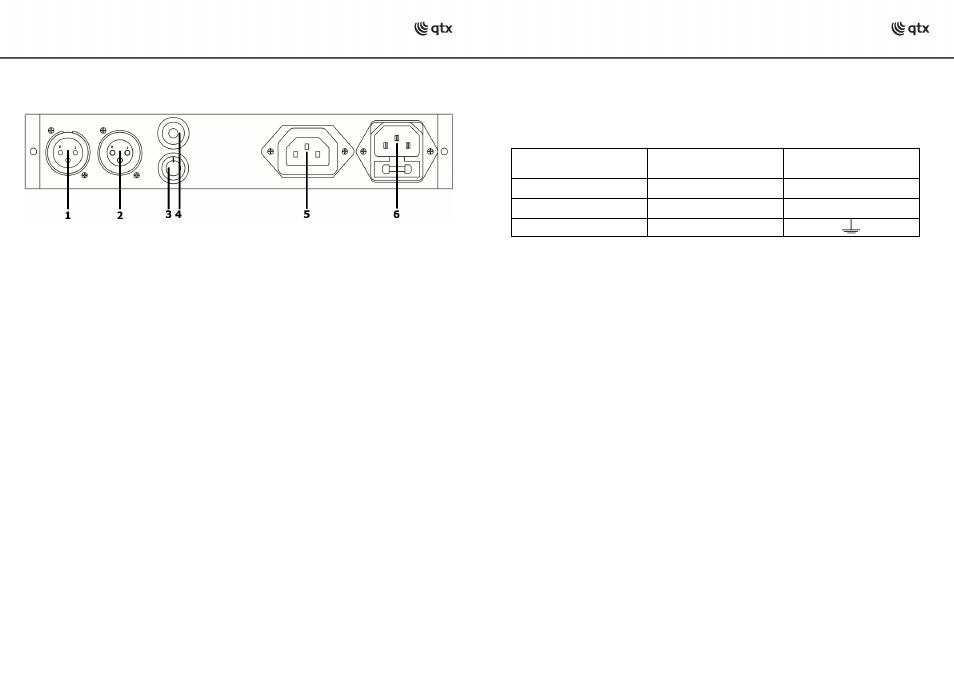

REAR LAYOUT:
1. DMX IN
2. DMX OUT
3. Sound sensitivity
4. Microphone
5. IEC Power OUT
6. IEC Power IN (Fuse F1A and F3A for SL-Q12)
SmartLIGHT User Manual Page 5
CONNECT WITH POWER SUPPLY – THE GROUND WIRE MUST BE CONNECTED:
Use the IEC plug to connect to the main power supply as follows:
Wire Connection International signal
Brown Live L
Blue Neutral N
Yellow /Cyan Earth
QUICK TROUBLE SHOOTING
If the unit is not functioning properly follow the below guidelines
Check the IEC cable is fitted correctly.
Check the fuse hasn’t blown in both the IEC cable and unit (see below)
Check any DMX cables are connected correctly
Check the DMX address has been set correctly
Check the operating mode of the device (see later on in this manual)
If the unit still fails to respond then contact your retailer. DO NOT ATTEMPT TO
REPAIR YOURSELF.
REPLACING FUSE
First disconnect from the main power supply then remove the fuse holder above the
IEC Socket to reveal the fuse. Replace with the correct fuse rating as stated on the
product safety label. Then lock the fuse holder cover back into place.
