INTRODUCTION:
LED SMARTLIGHT SINGLE COLOUR PAR CAN
The QTX SmartLIGHT family of LED Par cans have been designed for a variety of
applications, whether you’re a mobile DJ, a band/singer, a bar/nightclub, theater
company or production company then this range of PAR cans will cover most
requirements.
Please read this manual carefully to ensure you get the best out of these products.
This manual is a generic manual that covers all available single colour SmartLIGHTS
in the range
Contents:
Page 3 – 6
Product Safety and Installation instructions
Page 7 – 9
SmartLIGHT Product layout
Page 10 – 11
SmartLIGHT Operation and functions
Page 12 – 13 SmartLIGHT DMX Operation
SmartLIGHT User Manual Page 11
DMX

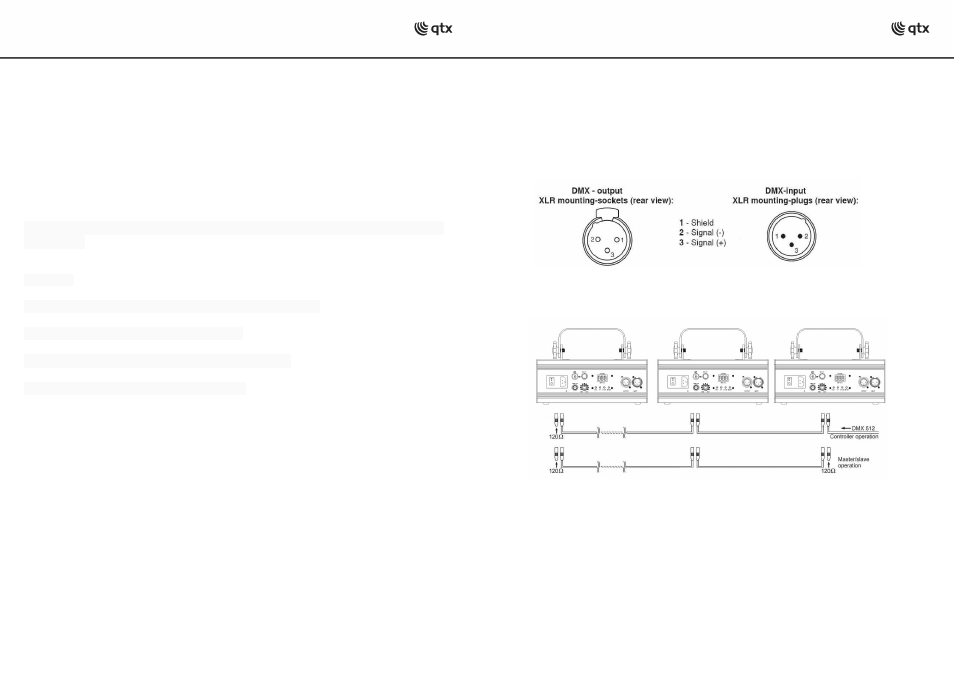

The fixture is equipped with 3-pin XLR connectors for DMX input and output. The SE
connectors are wired in parallel. Only use a shielded twisted-pair cable designed for 3-pin XLR-
plugs and connectors in order to connect the controller with the fixture or one fixture with
another.
Building a serial DMX-chain:
Caution: At the last fixture, the DMX-cable has to end with a terminator. Solder a 120 Ohm
resistor between PIN 2 (-) and PIN 3 (+) into a 3-pin XLR-plug and plug it in the DMX-output
of the last fixture.
