Remote timer control
 When the machine is ready to operate, the ready light (5) on the remote timer control will illuminate.
 You may now press the Manual (3) button for haze on demand – releasing button stops the haze effect
 When the ready indicator is off, the ORB-400 needs time to re-heat and will not produce haze effect
 For constant haze effect, use the latching Continuous (2) button and the Continuous LED (6) will light
 The density of haze effect can be varied by adjusting the rotary Output control (7)
 Pressing the Timer button (1) will activate the hands-free timer function and the timer LED (4) will light
 The Interval control (8) adjusts the time between haze effect output in each timer cycle
 The Duration control (9) adjusts the length of time that haze is produced in each timer cycle
Combined ORB effect
If the bubble wheel is switched on when haze is being produced, the haze passes through the bubble wands
to fill each bubble with fog. This gives a cloudy white appearance to the bubbles and produces a small “puff of
smoke” when each bubble pops.
Alongside the combined effect, the ORB-400 can perform separately as a fully functional haze or bubble
machine by simply switching off the function that is not required.
Specifications
Power supply 230Vac, 50Hz (IEC)
Bubble remote control frequency 433MHz
Haze remote control functions Timer, Continuous, Manual, Interval, Output, Duration
Haze fluid tank capacity 2.3 litres
Heating element 400W
Heat-up time 4 – 5 minutes
Dimensions 300 x 260 x 645mm
Weight 10.15kg

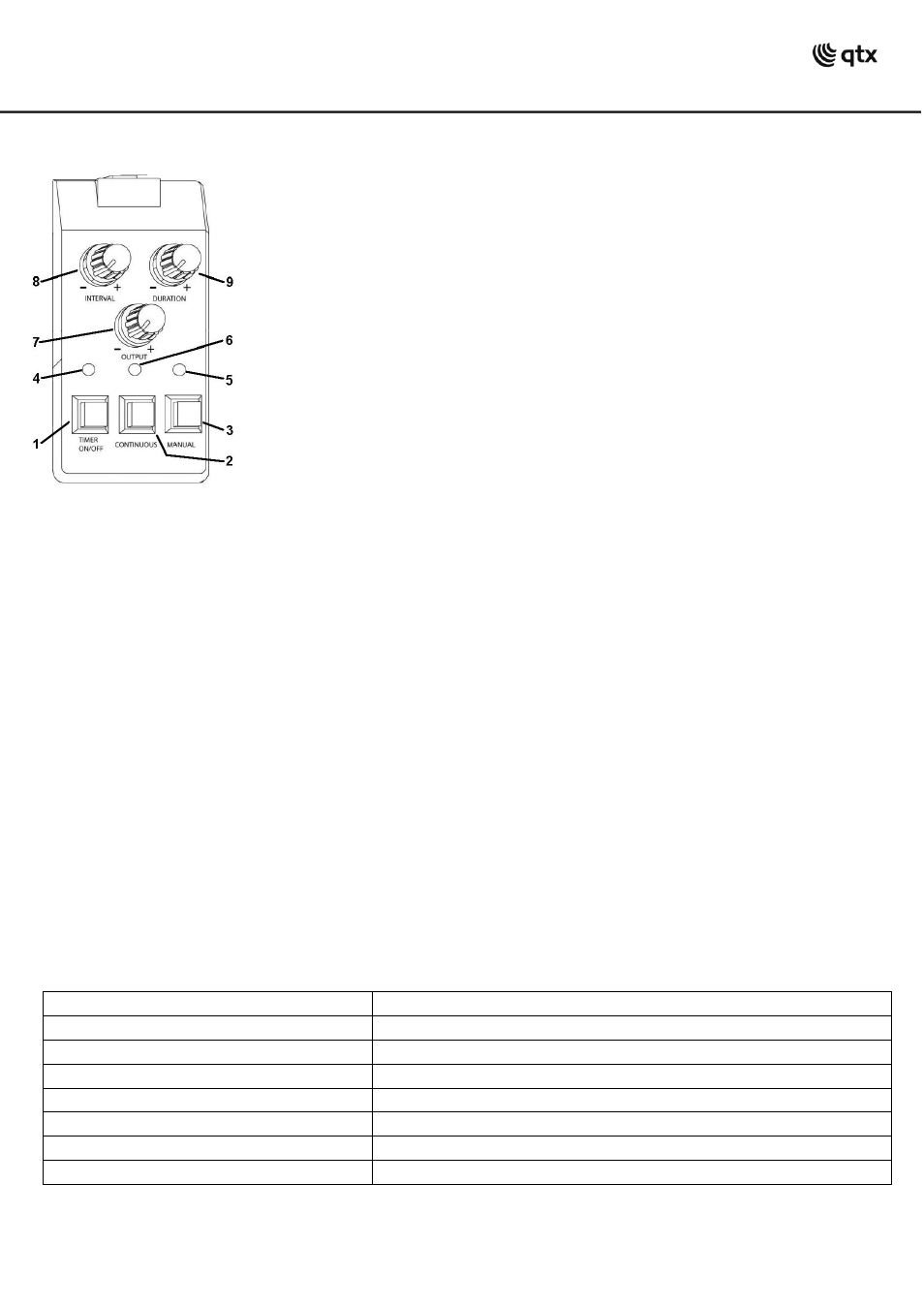

1. Timer button (latching) - activates the timer control
2. Continuous button (latching) – overrides timer control for constant haze
3 . Manual button (non-latching) – overrides timer control for haze on demand
4. Timer indicator – illuminated when timer function is active
5. Ready indicator – illuminated when heated up ready to produce haze
6. Continuous indicator – illuminated when continuous function is active
7. Output control – adjusts the amount and density of haze effect
8. Interval control – adjusts the interval between haze output on timer control
9. Duration control – adjusts the time length of haze output on timer control
