Scout PS-Series Operator’s Manual 3—Operating Your Scout PS-Series
431-PS00-00-10, Revision 110 9
Zoom Button—PS32 models only
Use this button to switch the camera between no
zoom (full resolution) and 2× zoom. The central
part of the image is magnified twice its normal size
when 2× is selected.
When zoom has been selected the icon is
continuously shown in the display:
Freeze Frame Button—PS24 models only
Use this button to freeze the video so that a single
frame may be inspected closely.

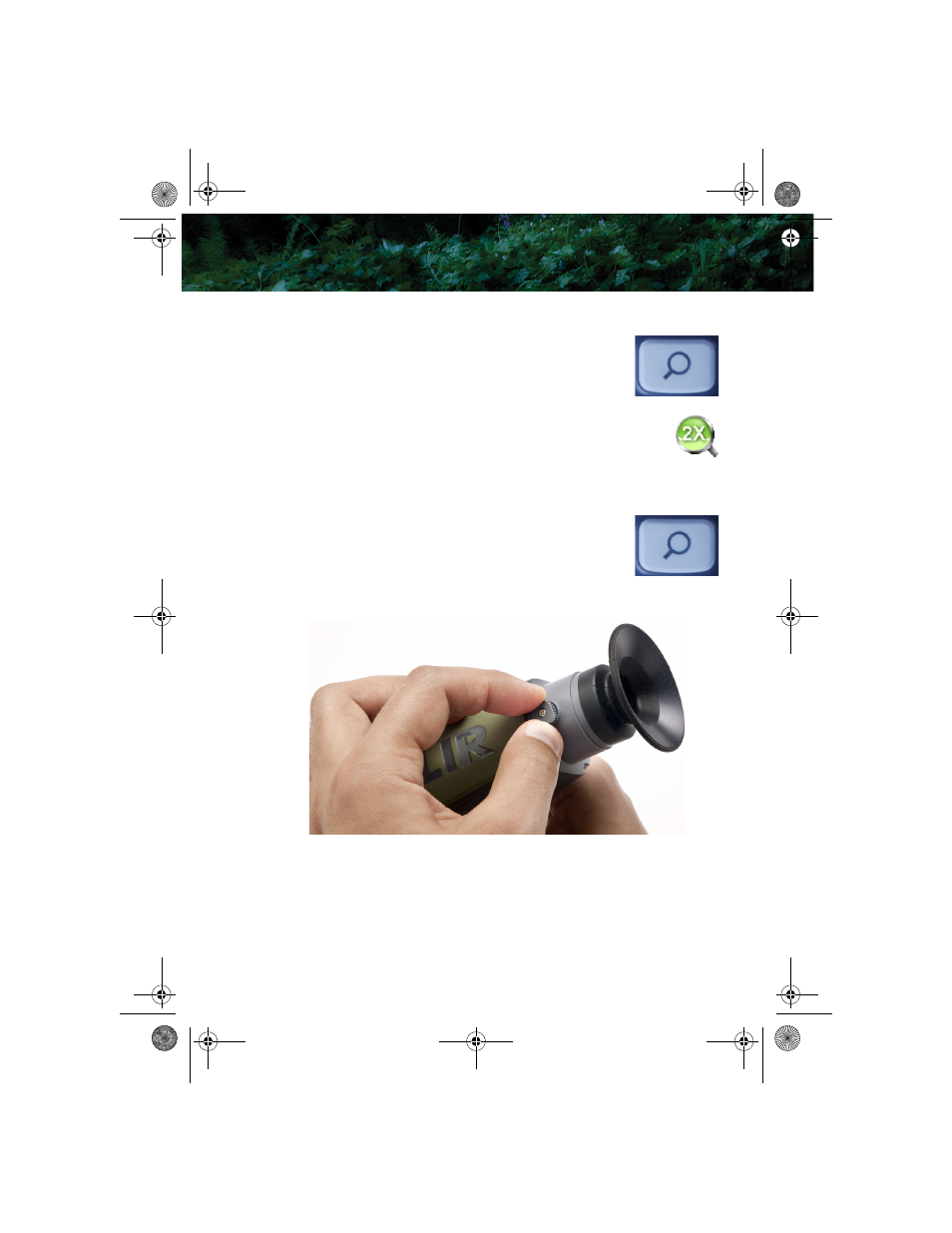

Diopter Controls
The diopter adjustment lever allows a ±2 diopter setting range. When
the diopter adjustment lever is pointing straight away from the
camera, it is in the neutral position.
Adjust the diopter setting for the sharpest image in the viewfinder.
Scout_Operators.book Page 9 Monday, October 10, 2011 12:33 PM
