Establishing Power to the Electronics:
Establish power to the analyzer electronics by pushing the red ON/OFF key. The digital display responds
instantaneously. When power is applied, the analyzer performs several diagnostic system status checks termed
“START-UP TEST” as illustrated below:
START-UP TEST
ELECTRONICS – PASS
BATTERY – PASS
TEMP SENSOR – PASS
BARO – N/A
REV. 1.37
In the unlikely event the LED warning indicator LOW BATT comes
on when the analyzer is turned on – proceed immediately to the
sub-section on Battery Considerations at the end of section 5
Operation.
Note: The analyzer display defaults to the sampling mode when
30 seconds elapses without user interface.
00.00 PPM
AUTO SAMPLING
10 PPM RANGE
24.5 C
Menu Navigation:

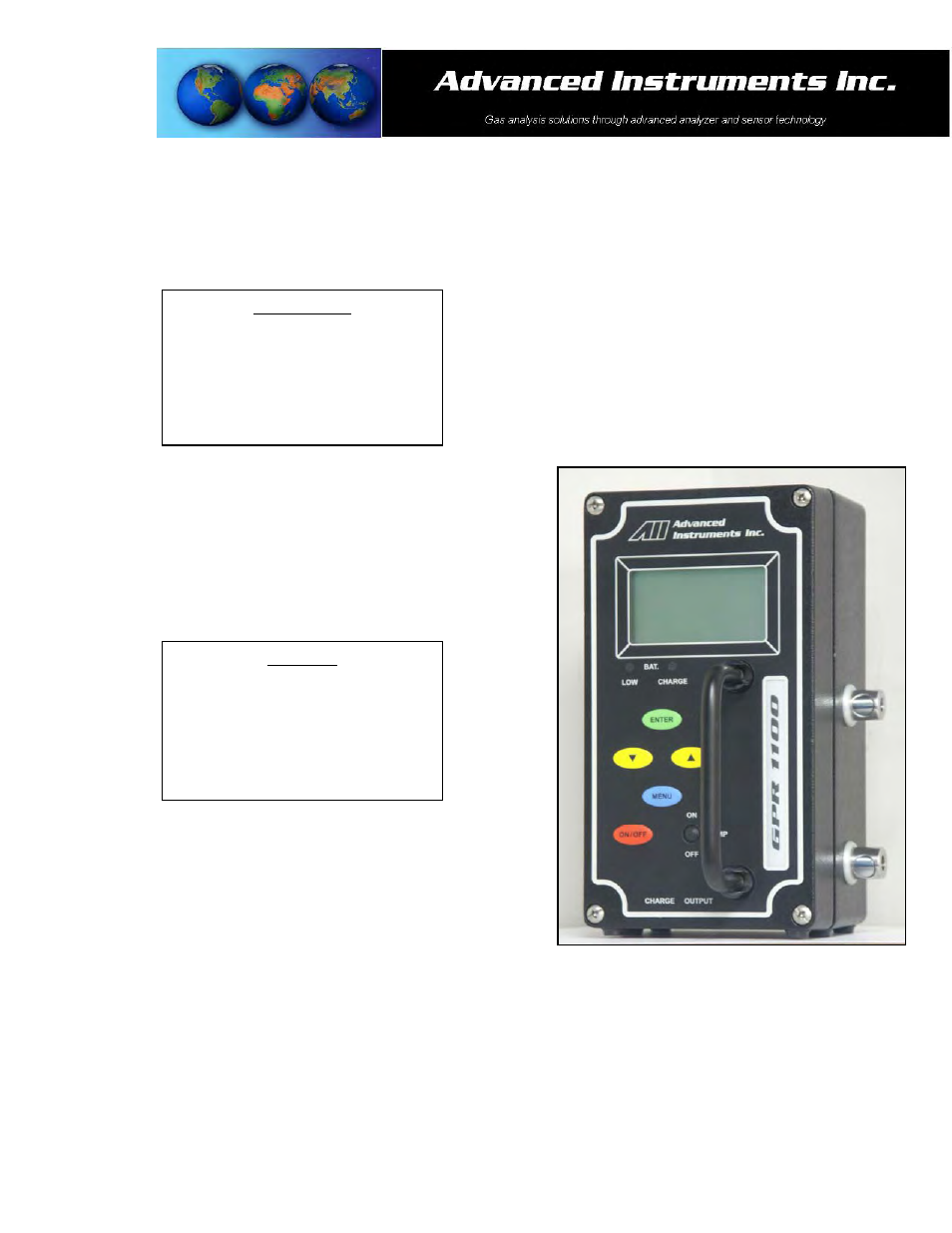

The five (5) pushbuttons located on the front of the analyzer
operate the micro-processor:
1. green ENTER (select)
2. yellow UP ARROW
3. yellow DOWN ARROW
4. blue MENU (escape)
5. red ON/OFF
