ARNOTT COIL SPRING CONVERSION KIT
FOR
1999-2006
MERCEDES-BENZ S-CLASS (W220 CHASSIS)
9.

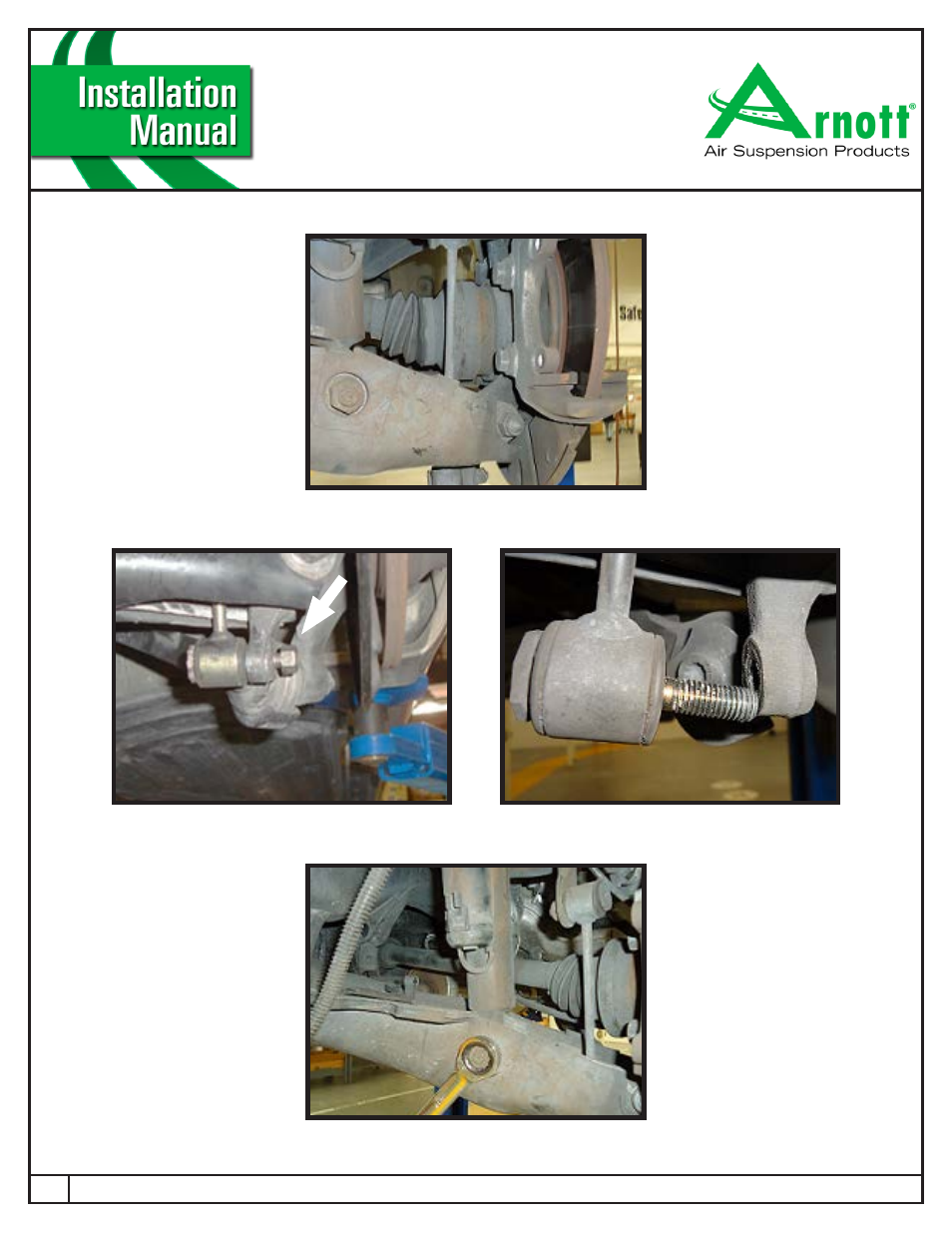

DISASSEMBLE THE OUTER SUSPENSION ARM. (FIGURE 20-8)
11.
REMOVE THE BOLT AND NUT CONNECTING THE SHOCK ASSEMBLY TO THE SUSPENSION ARM. (FIGURE 20-10)
10.
DISASSEMBLE THE STABILIZER BAR LINK. (FIGURE 20-9)
FIGURE 20-8
FIGURE 20-10
FIGURE 20-9
