Air Suspension C-2242 REV 2 User Manual
Page 10
10
REV 2
02/24/2014
C-2242
C-2242
ARNOTT COIL SPRING CONVERSION KIT
FOR
1999-2006
MERCEDES-BENZ S-CLASS (W220 CHASSIS)
4.

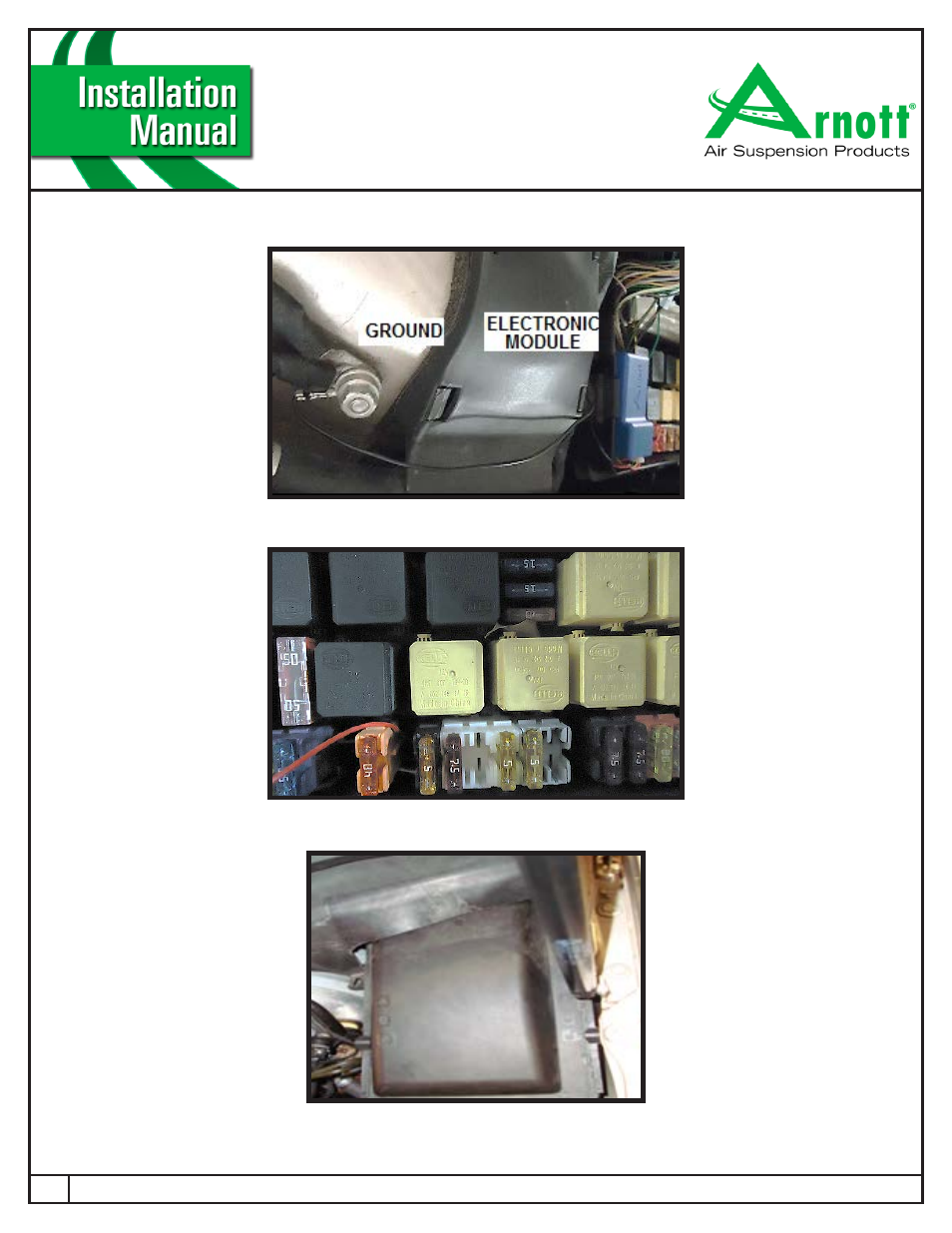

RUN THE GROUND WIRE FROM THE ELECTRONIC BYPASS MODULE TO THE NEAREST VEHICLE GROUND
TERMINAL. (FIGURE 1D)
5.
LOCATE AN OPEN POWER TERMINAL IN THE FUSE PANEL, INSTALL THE FUSE HOLDER (12+ V). (FIGURE 1E)
6.
RE-INSTALL FUSE BOX COVER. (FIGURE 1F)
FIGURE 1E
FIGURE 1D
FIGURE 1F
7.
INSTALLATION COMPLETE.
