Air Suspension C-2242 REV 2 User Manual
Page 4
4
REV 2
02/24/2014
C-2242
C-2242
ARNOTT COIL SPRING CONVERSION KIT
FOR
1999-2006
MERCEDES-BENZ S-CLASS (W220 CHASSIS)
9.
REMOVAL COMPLETE.
FRONT COIL STRUT INSTALLATION
1.
INSTALLATION IS IN REVERSE ORDER OF FRONT AIR STRUT REMOVAL.
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
8.

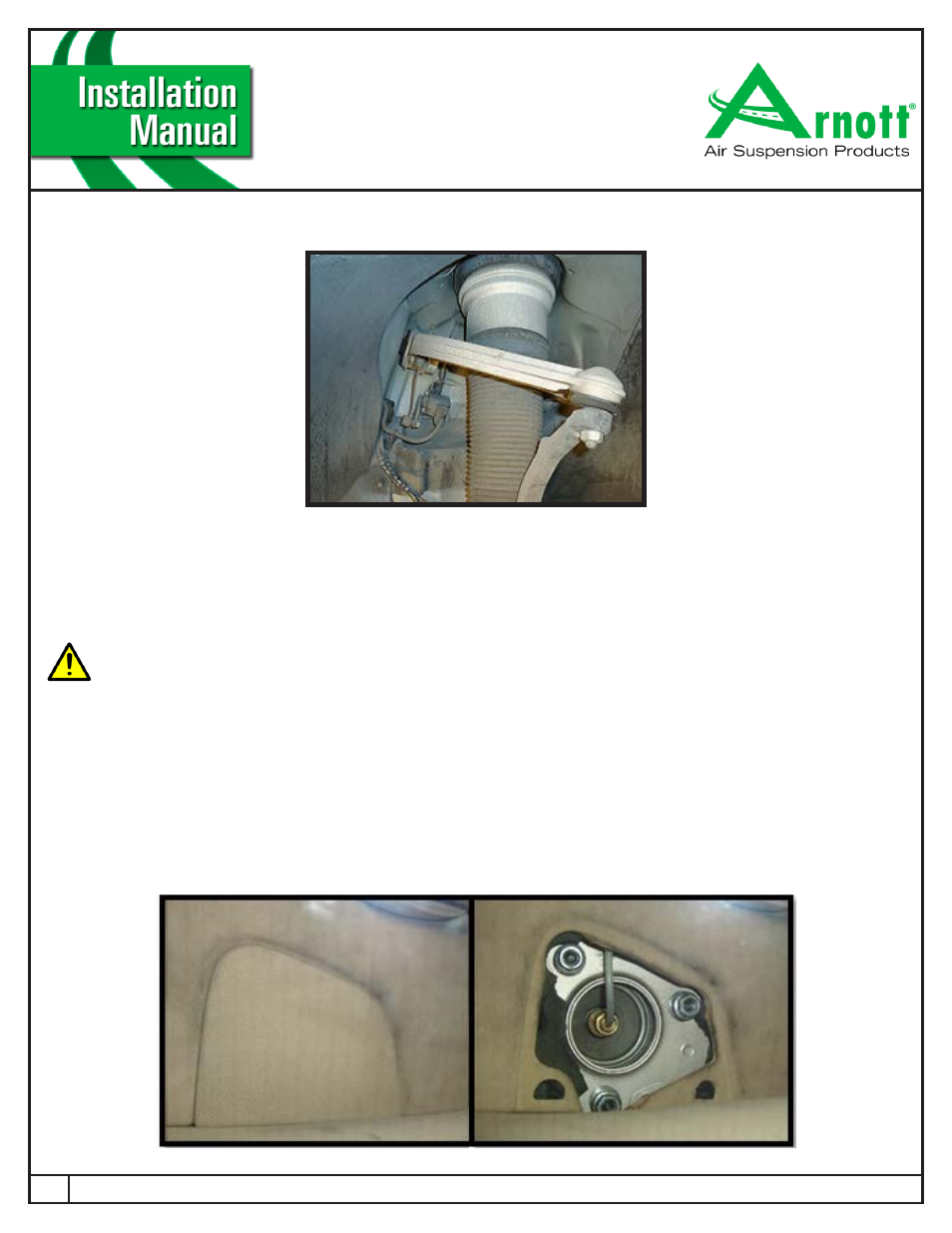

SEPARATE UPPER CONTROL ARM BALL JOINT FROM THE SPINDLE ASSEMBLY AND REMOVE THE AIR STRUT.
(FIGURE 10-5)
FIGURE 10-5
REAR AIR STRUT REMOVAL
1.
REMOVE REAR WHEEL.
2.
REMOVE THE SIDE COVER OF THE REAR DASH PANEL TO EXPOSE THE TOP OF THE AIR SHOCK (LOCATED IN
THE REAR WINDOW AREA). (FIGURE 20-1)
FIGURE 20-1
