aRnott REaR Coil spRing ConVERsion kit
FoR
2003-2009
MERCEDEs-BEnZ E-Class wagon w/o aDs

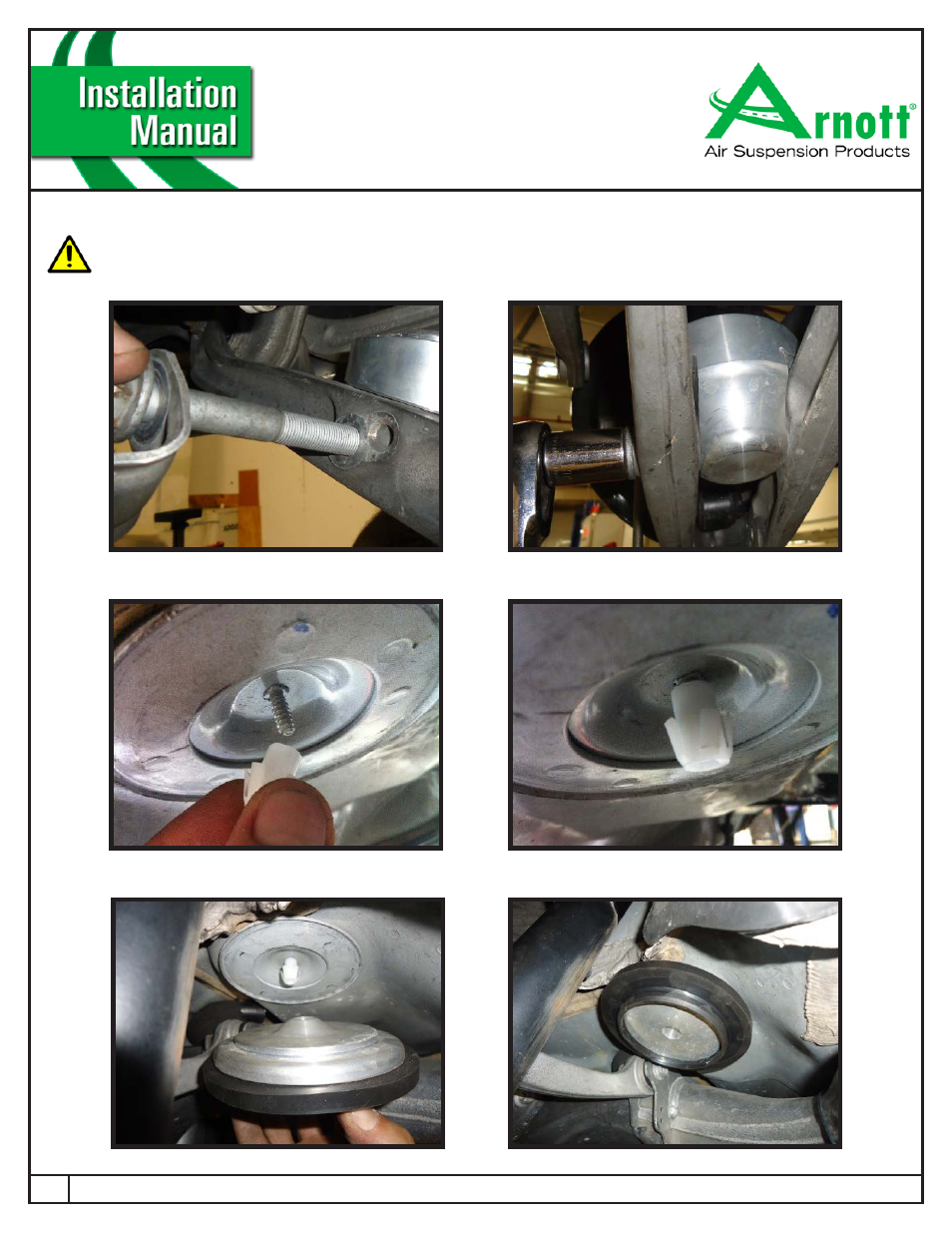

FigUre 20-2
2.
reMove olD top MoUnt clips anD replace WitH tHe ones proviDeD in tHe kit. (FigUre 20-2)
3.
install tHe Upper spring percHes onto tHe neW clips. (FigUre 20-3)
FigUre 20-3
coIL sPRING INstALLAtIoN
1.
install tHe loWer spring percHes into tHe loWer control arMs, anD secUre. (FigUre 20-1)
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
FigUre 20-1
