aRnott REaR Coil spRing ConVERsion kit
FoR
2003-2009
MERCEDEs-BEnZ E-Class wagon w/o aDs

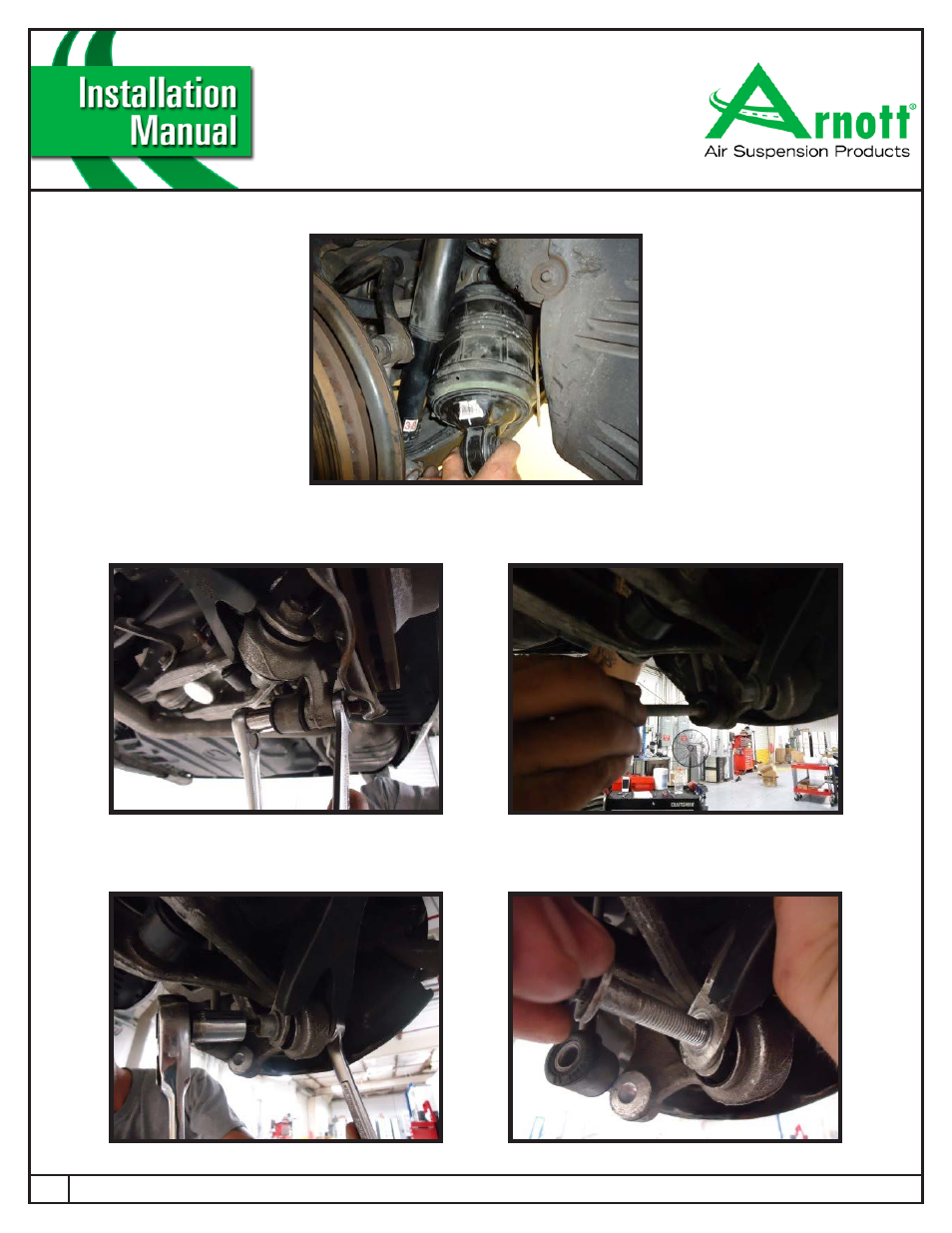

FigUre 10-8
11.
reMove tHe loWer sWaY bar enD link bolt
.
(FigUre 10-9)
10.
reMove FactorY air spring FroM tHe veHicle. (FigUre 10-8)
12.
loosen anD reMove tHe Front control arM bolt. (FigUre 10-10)
FigUre10-9
FigUre 10-10
