Air Suspension C-2675 REV 1 User Manual
Page 3
3
REV 1
12/09/2013
C-2675
C
-2675
aRnott REaR Coil spRing ConVERsion kit
FoR
2003-2009
MERCEDEs-BEnZ E-Class wagon w/o aDs
FigUre 10-2
FigUre 10-3
5.

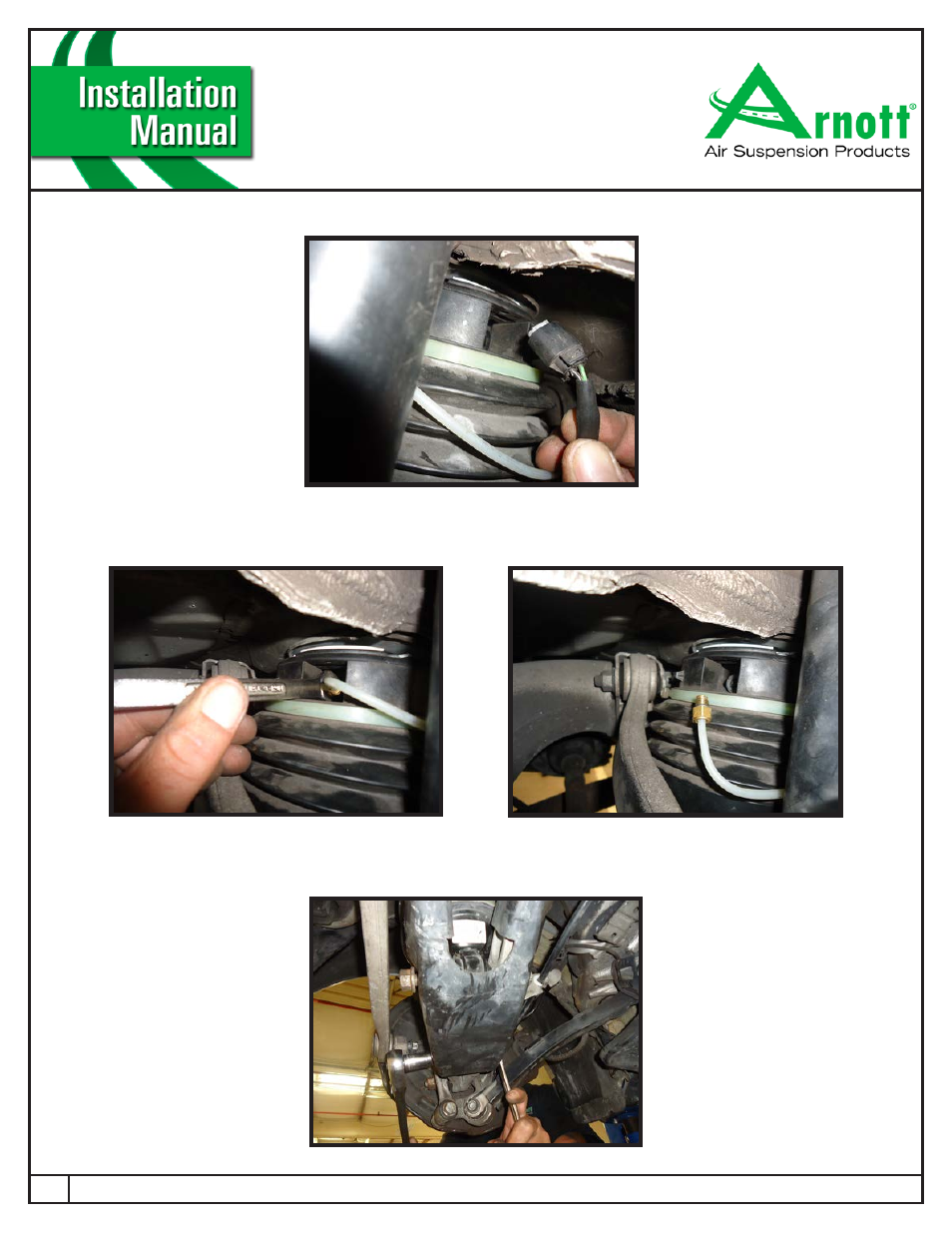

locate anD reMove tHe air line FroM tHe air springs top MoUnt. (FigUre 10-3)
4.
locate anD reMove tHe electrical plUg FroM tHe air springs top MoUnt. (FigUre 10-2)
6.
loosen anD reMove tHe loWer sHock MoUnting nUt anD bolt. (FigUre 10-4)
FigUre 10-4
