Air Suspension A-2123 REV 4 User Manual
Page 7
7
A-
2123
ARNOTT FRONT AIR SPRING
FOR
2003-2009
LAND ROVER RANGE ROVER
A-2123
REV 4
01/17/2014
4.

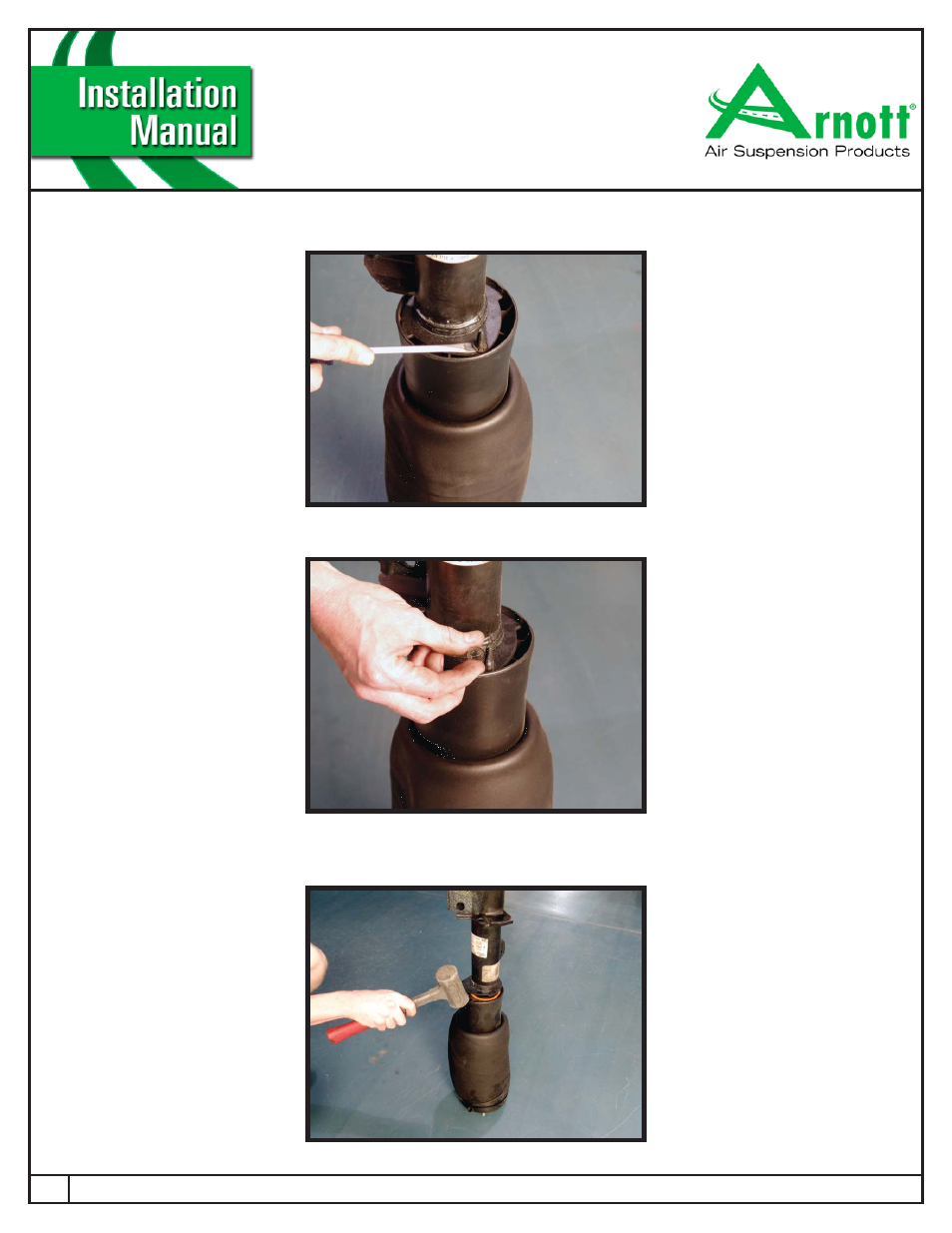

WITH A SLOTTED SCREWDRIVER OR OTHER ADEQUATE TOOL, REMOVE THE LOCK WASHER FROM THE
LOCATING POST. (FIGURE N)
5.
REMOVE THE LOCK WASHER AS ILLUSTRATED. (FIGURE O)
6.
TAP THE BOTTOM OF THE AIR SPRING WITH A SOFT FACED MALLET TO DISENGAGE THE O-RING SEALS.
(FIGURE P)
FIGURE N
FIGURE O
FIGURE P
