ARNOTT FRONT AIR SPRING
FOR
2003-2009
LAND ROVER RANGE ROVER
A-2123
REV 4
01/17/2014
11.

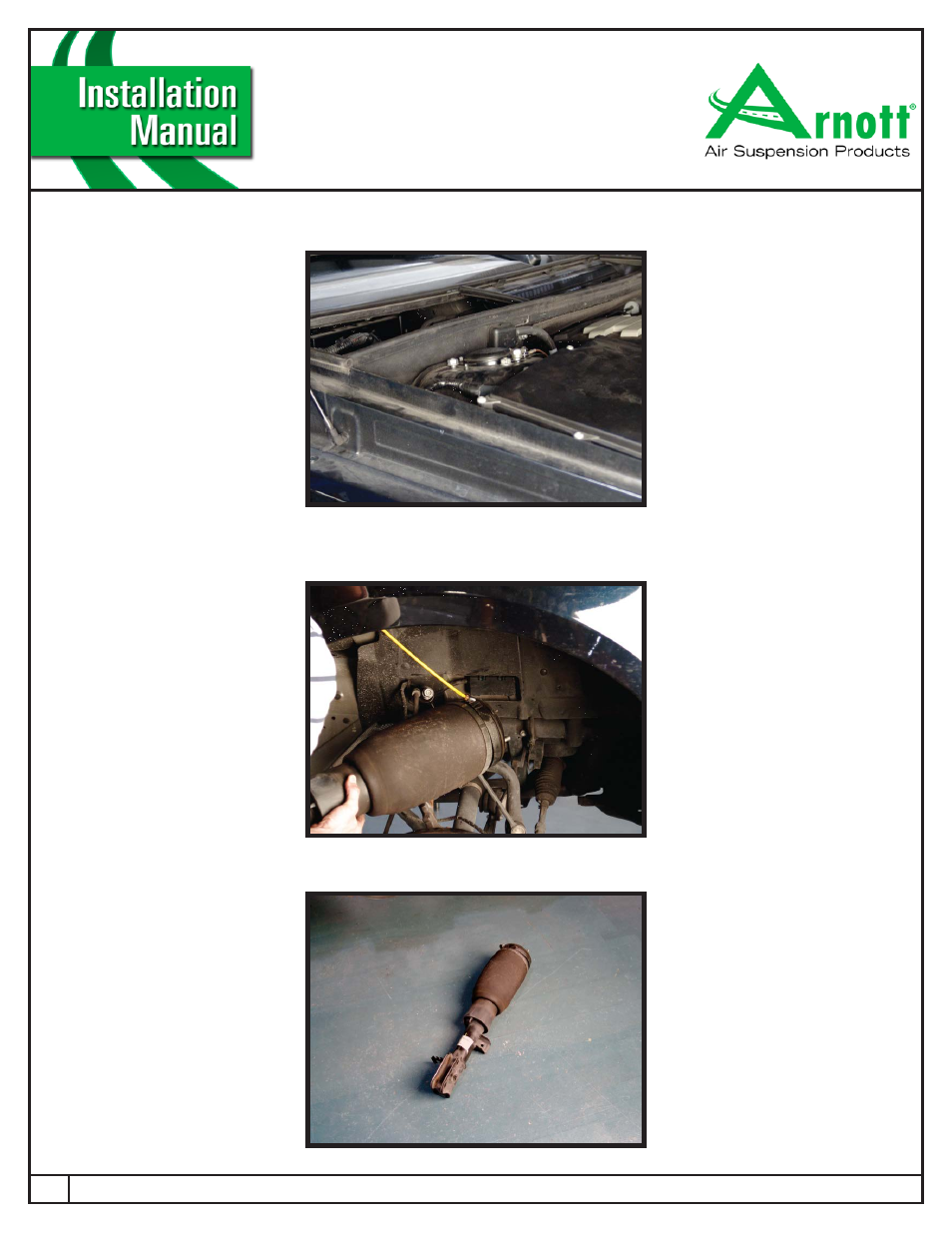

UNDER THE HOOD ARE THE UPPER RETENTION FASTENERS, REMOVE ALL THREE BEING CAREFUL NOT TO
DROP THE STRUT. (FIGURE H)
12.
WITH THE STRUT REMOVED YOU CAN NOW GAIN ACCESS TO ITS HOSE CONNECTION, REMOVE THE
FITTING TO FREE THE ASSEMBLY. (FIGURE I)
13.
REMOVAL COMPLETE. (FIGURE J)
FIGURE H
FIGURE I
FIGURE J
