Air Suspension A-2123 REV 4 User Manual
Page 3
3
A-
2123
ARNOTT FRONT AIR SPRING
FOR
2003-2009
LAND ROVER RANGE ROVER
A-2123
REV 4
01/17/2014
5.

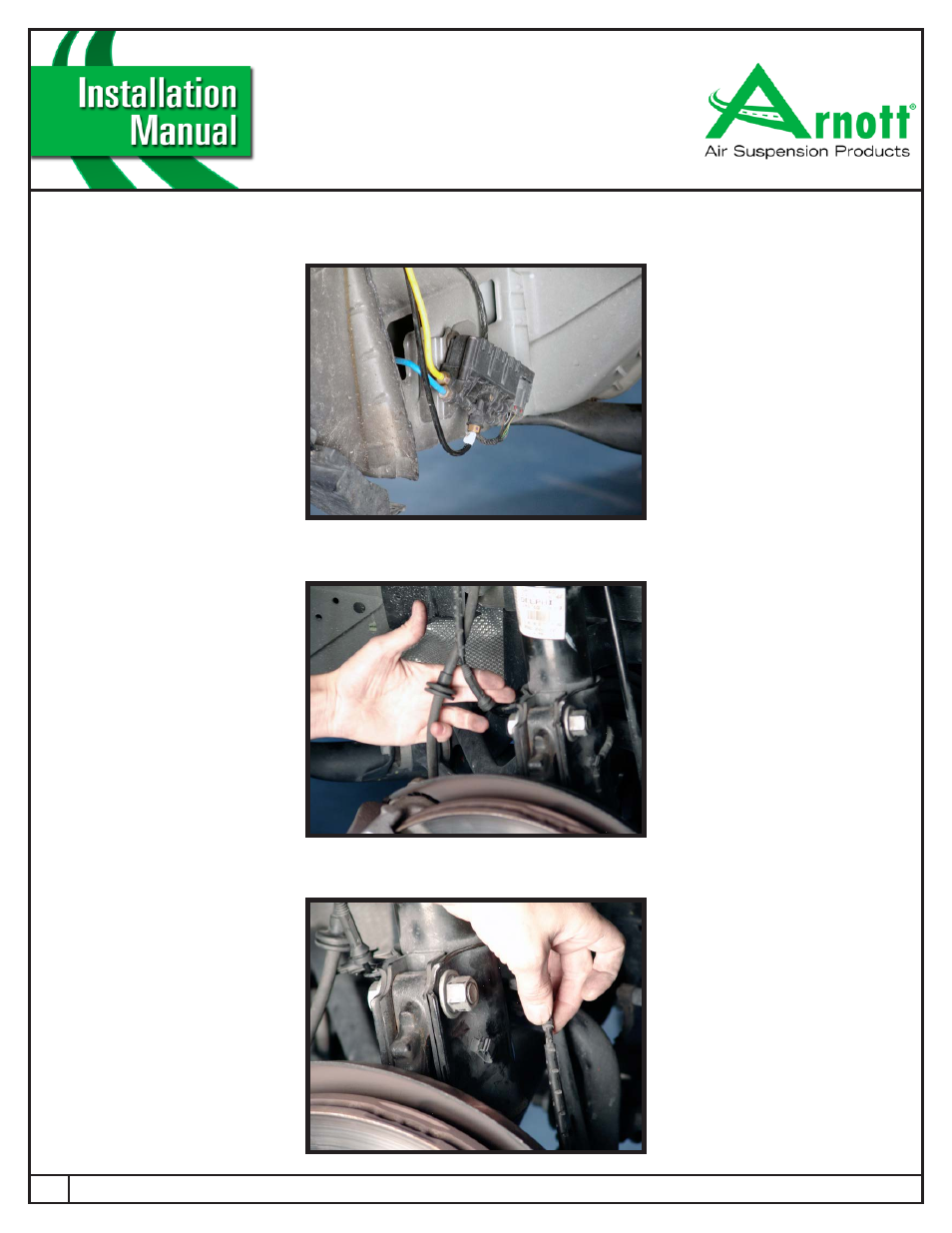

WITH THE WHEEL WELL LINER REMOVED YOU ARE ABLE TO ACCESS THE FRONT VALVE BLOCK LOCATED
ON THE REAR OF THE WHEEL WELL. SLOWLY RELEASE THE AIR PRESSURE FROM THE FRONT STRUTS BY
LOOSENING THE YELLOW AND BLACK AIR HOSES. (FIGURE B)
6.
NEXT, REMOVE THE BRAKE HOSE AND ABS SENSOR WIRE FROM THE RETENTION BRACKET ON THE
STRUT. (FIGURE C)
7.
ALSO REMOVE THE SENSOR WIRE FROM THE FRONT SIDE OF THE STRUT HELD ON WITH A SMALL PLASTIC
CLIP. (FIGURE D)
FIGURE B
FIGURE C
FIGURE D
