Air Suspension C-2745 REV 1 User Manual
Page 8
8
REV 1
06/06/2014
C-2745
C-
2745
ARNOTT COil spRiNg CONVERsiON kiT
FOR
2007-2009
JAgUAR XJ sERiEs
ELEctRoNIc BYPAss moDULE INstALLAtIoN

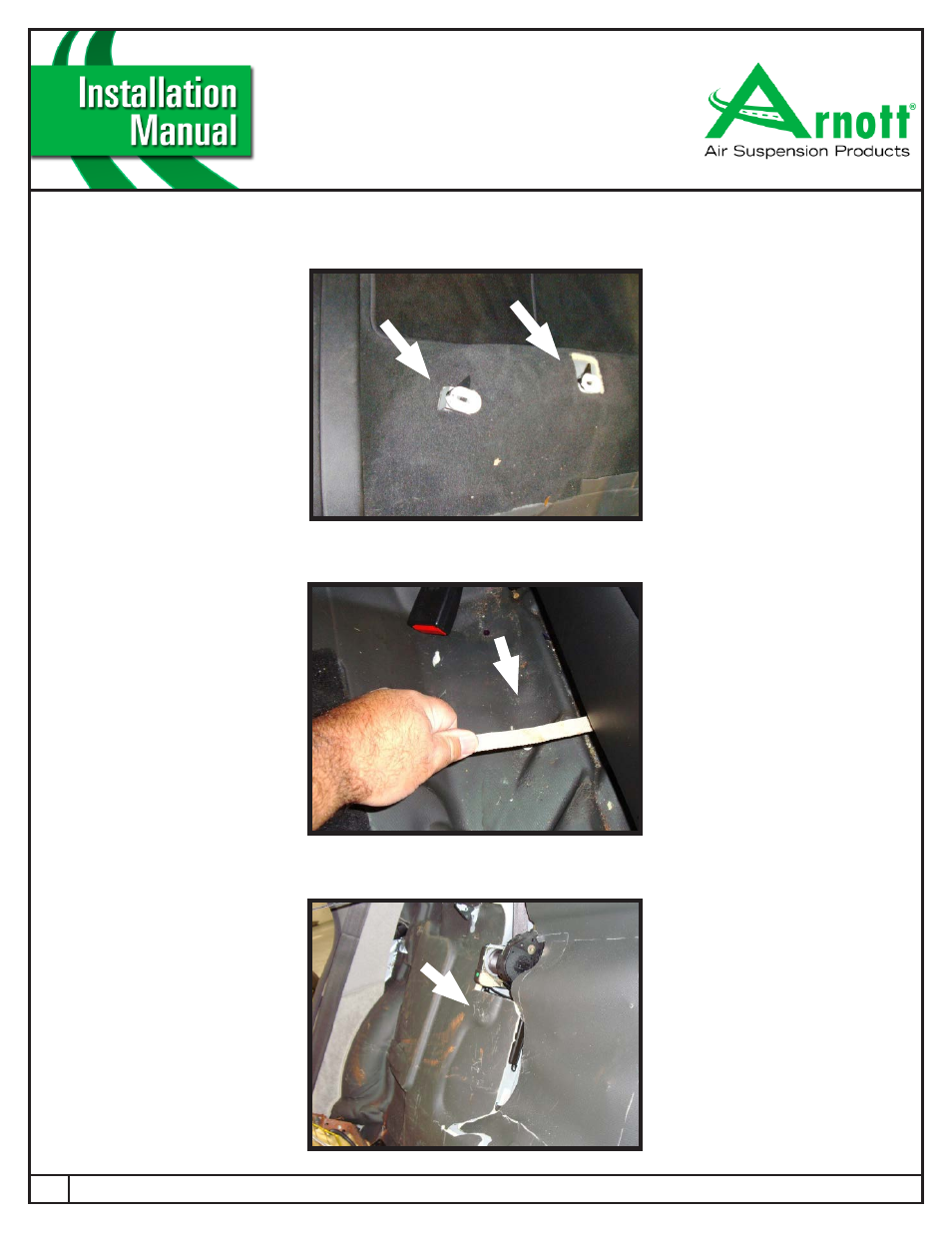

1.
REmOVE REAR SEAT bY PULLING LEVERS UNdER CUShION, 2 PER SIdE ANd LIFTING SEAT. (FIGURE A)
FIGURE A
2.
PULL CORd TO RELEASE SEAT bACK WhILE ROTATING TOP OF SEAT FORWARd, bOTh SIdES. (FIGURE b)
3.
PULL INSULATION FORWARd ON PASSENGER SIdE OF VEhICLE TO ACCESS COmPUTER. (FIGURE C)
FIGURE b
FIGURE C
