ARNOTT COil spRiNg CONVERsiON kiT
FOR
2007-2009
JAgUAR XJ sERiEs
4.

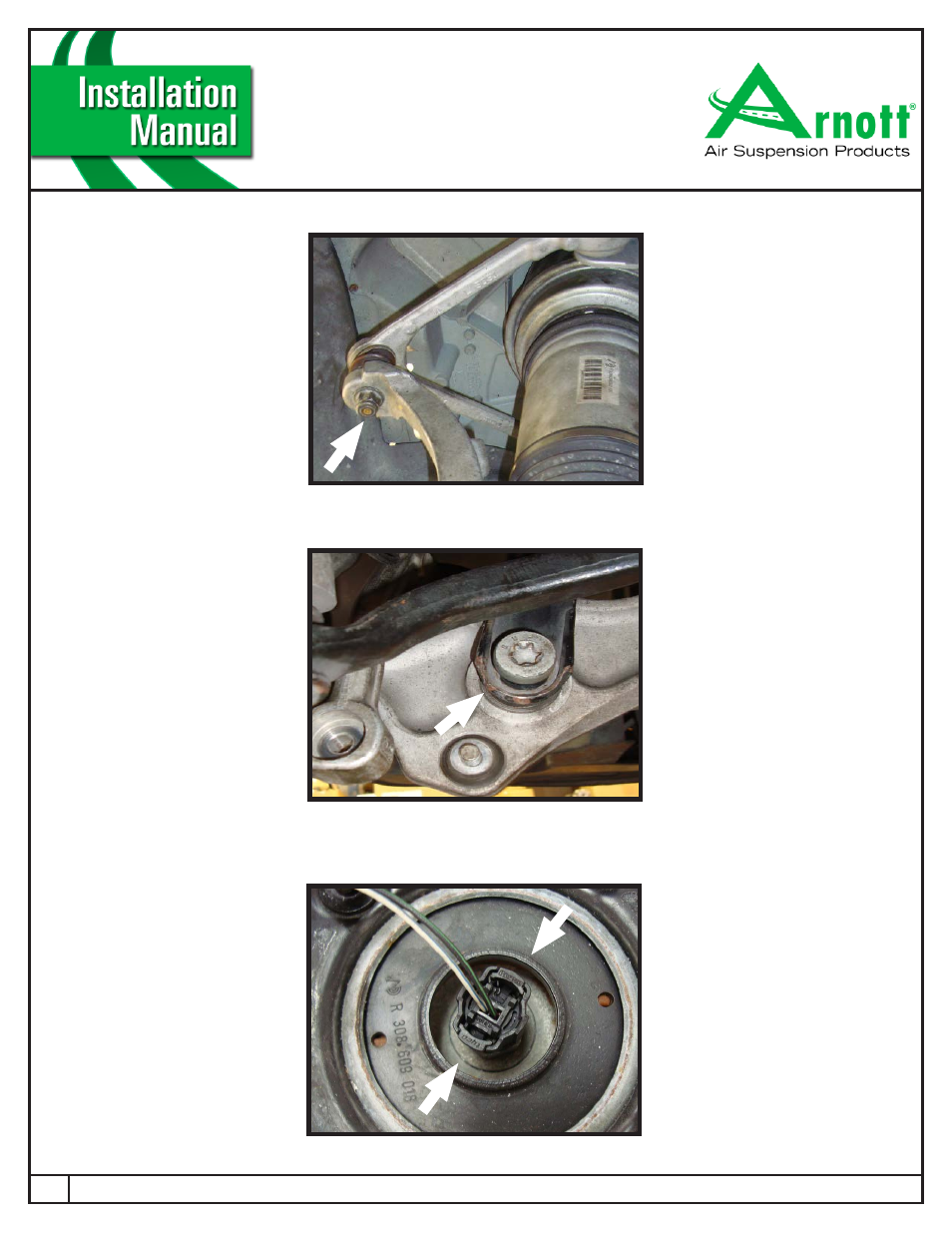

REmOVE ThE UPPER A-ARm bALL jOINT NUT ANd SEPARATE ThE UPPER A-ARm bALL jOINT. (FIGURE 10-2)
FIGURE 10-2
5.
REmOVE ThE LOWER ShOCK mOUNT NUT/bOLT. (FIGURE 10-3)
FIGURE 10-3
6.
dISCONNECT ThE ELECTRICAL CONNECTOR FROm ThE TOP OF ThE ShOCK (PUSh ON ThE SIdES OF ThE
CONNECTOR TO RELEASE). tIE off WIREs Not NEEDED WIth coIL coNVERsIoN. (FIGURE 10-4)
FIGURE 10-4
