Air Suspension C-2745 REV 1 User Manual
Page 5
5
REV 1
06/06/2014
C-2745
C-
2745
ARNOTT COil spRiNg CONVERsiON kiT
FOR
2007-2009
JAgUAR XJ sERiEs
3.

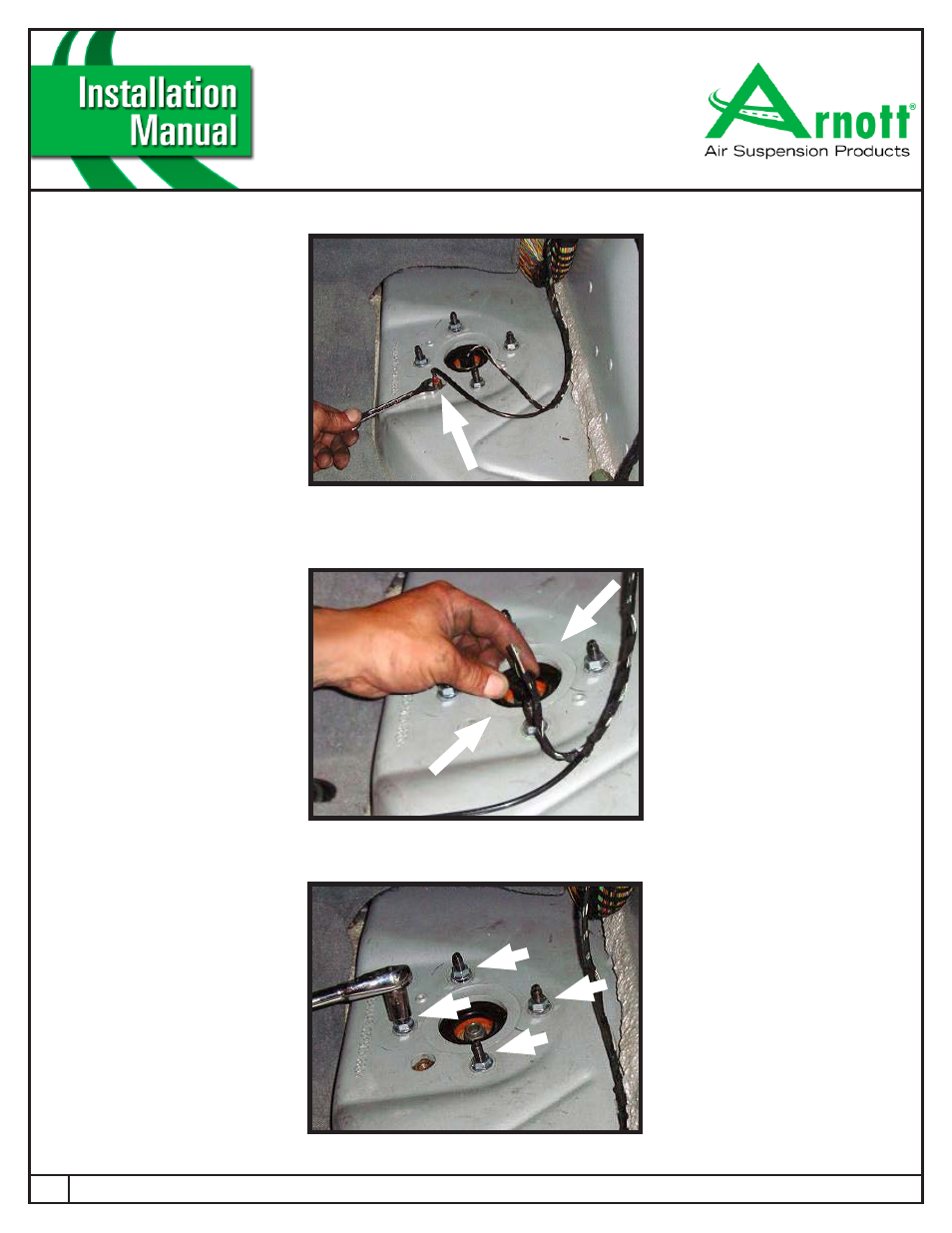

dISCONNECT ThE AIR LINE FROm ThE ChECK VALVE TO dEFLATE ThE AIR STRUT. (FIGURE 20-2)
FIGURE 20-2
4.
dISCONNECT ThE ELECTRICAL CONNECTOR FROm ThE TOP OF ThE AIR STRUT (PUSh ON ThE SIdES OF
ThE CONNECTOR TO RELEASE. (FIGURE 20-3)
FIGURE 20-3
5.
REmOVE ThE FOUR (4) AIR STRUT mOUNTING NUTS. (FIGURE 20-4)
FIGURE 20-4
