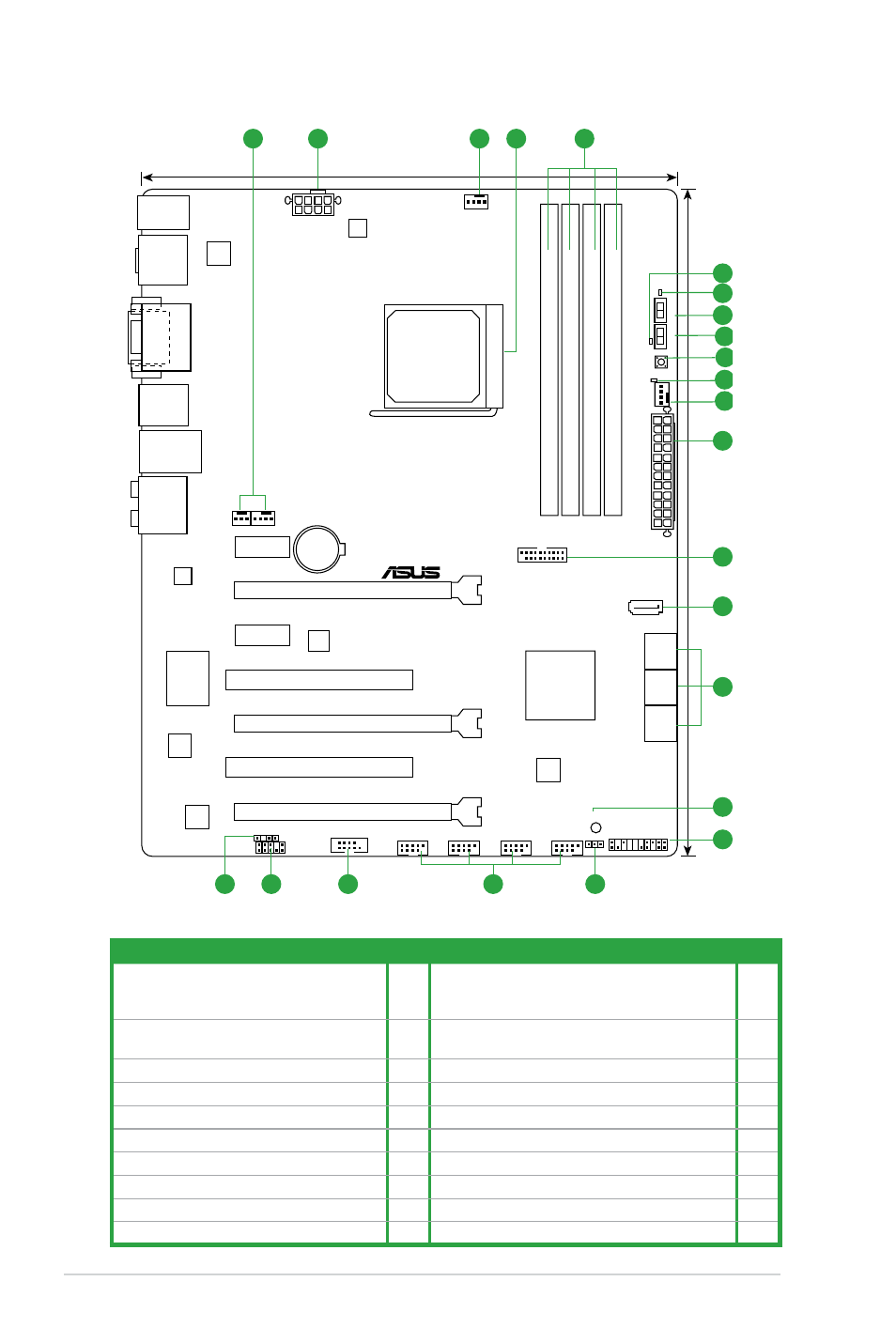

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. Power, CPU and chassis fan connectors
(3-pin PWR_FAN, 4-pin CPU_FAN,
and 4-pin CHA_FAN1/2)
1-19 11. USB 3.0 connector (20-1 pin USB3_56) 1-27
2. ATX power connectors (24-pin EATXPWR,
8-pin EATX12V)
1-20 12. SATA 6.0Gb/s connectors (7-pin SATA6G_E1,
SATA 6G 1~6)
1-21
3. AMD FM1 socket 1-9 13. Standby power LED (SB_PWR) 1-22
4. DDR3 DIMM slots 1-12 14. System panel connector (20-8 pin PANEL) 1-16
5. TPU LED (ELED730) 1-27 15. Clear RTC RAM (3-pin CLRTC) 1-24
6. EPU LED (ELED740) 1-28 16. USB 2.0 connectors (10-1 pin USB3~10) 1-24
7. EPU switch 1-26 17. Serial port connector (10-1 pin COM1) 1-21
8. TPU switch 1-26 18. Front panel audio connector (10-1 pin AAFP) 1-23
9. MemOK! switch 1-25 19. Digital audio connector (4-1 pin SPDIF_OUT) 1-23
10. DRAM LED (DRAM_LED) 1-27
F1A75-V EVO
PCIEX16_1
PCIEX16_2
PCIEX16_3
PCIEX1_2
PCIEX1_1
PCI1
PCI2
USB78 USB910 USB34
USB3_56
USB56 PANEL SPDIF_OUT
AAFP
CPU_FAN
CHA_FAN1 PWR_FAN
CHA_FAN2
Lithium Cell
CMOS Power
Super
I/O
AUDIO
ALC
892
ASM
1042
DIGI+VRM
EPU
RTL
8111E
IC
S
477D
TPU
COM1
KB_USB3_34
32Mb
BIOS
SB_PWR
CLRTC
24.4cm(9.6in)
30.5cm(12.0in)
AMD ®
A75 FCH
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
LAN1_USB12
ESATA6G
_USB3_12
SATA6G_6 SATA6G_5
SATA6G_4 SATA6G_3
SATA6G_2 SATA6G_1
SATA6G_E1
EATX12V
SPDIFO
_HDMI
_DP
MemOK!
DRAM_LED
TP
U
E
PU
DVI_VG
A
SOCKET FM1
EATXPWR
1 2 4 1 3
12
11
5
1
8
6
7
14
13
12
17 18 19 16 15
2
10
9
Chapter 1: Product introduction 1-8
