1-6 Chapter 1: Product introduction

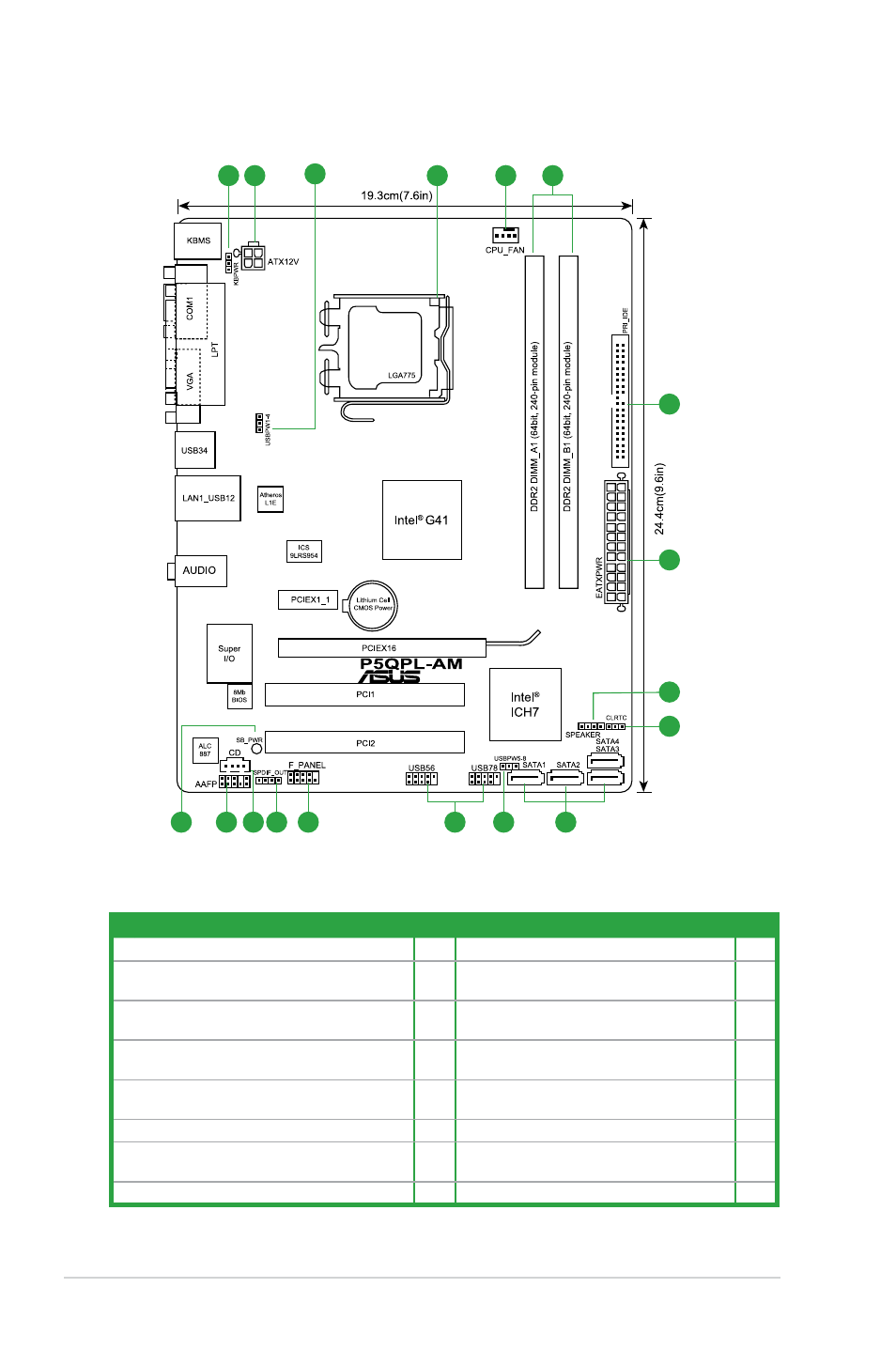

1.5.3 Motherboard layout
1 2 3 4 5 6
2
7
9
8
11 10 3 12 13 15 14 16
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. Keyboard power (3-pin KBPWR) 1-21 9. Clear RTC RAM (3-pin CLRTC) 1-20
2. ATX power connectors (24-pin EATXPWR, 4-pin
ATX12V)
1-25 10. Serial ATA connectors (7-pin SATA1-4) 1-23
3. USB device wake-up (3-pin USBPW1-4, 3-pin
USBPW5-8)
1-21 11. USB connectors (10-1 pin USB56 and
USB78)
1-27
4. LGA775 CPU socket 1-7 12. System panel connector (10-1 pin
F_PANEL)
1-28
5. CPU fan connector (4-pin CPU_FAN) 1-26 13. Digital audio connector (4-1 pin
SPDIF_OUT)
1-27
6. DDR2 DIMM slots 1-12 14. Optical drive audio connector (4-pin CD) 1-25
7. IDE connector (40-pin PRI_IDE) 1-24 15. Front panel audio connector (10-1 pin
AAFP)
1-26
8. Speaker connector (4-pin SPEAKER) 1-23 16. Standby power LED (SB_PWR) 1-4
